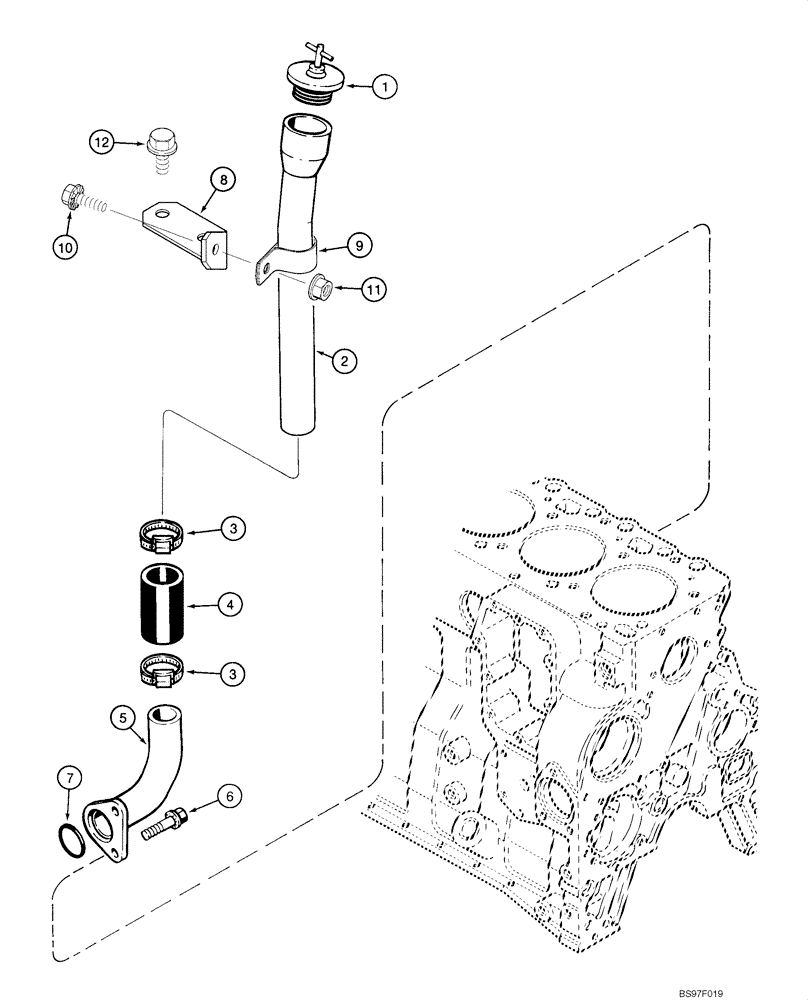

Запчасти Case CX160 (02-17) - OIL FILL ASSY, ENGINE (02) - ENGINE

4TA-390 Emissions Certified Engine

1шт.

1

A77424

FILLER CAP

1шт.

2

J933144

TUBE,38.1 - 52.39 mm OD x 350, 30 mm L

Upper

1шт.

3

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

2шт.

4

J912686

HOSE,38.1mm ID x 84mm L

1шт.

5

J933117

TUBE,190.5, 86.1 mm L

Lower

1шт.

6

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

2шт.

7

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID

1шт.

8

J933596

BRACKET

1шт.

9

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

1шт.

10

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

11

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

12

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

2шт.
