Запчасти Case CX160 (09-49) - DECALS (09) - CHASSIS/ATTACHMENTS

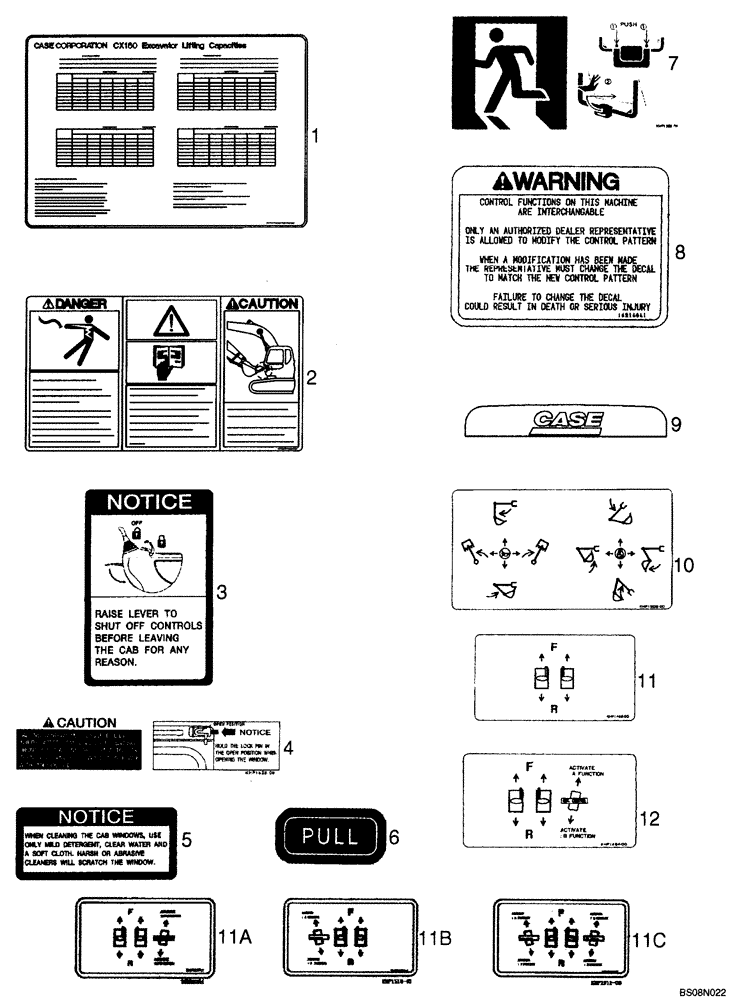

Схема запчастей Case CX160 - (09-49) - DECALS (09) - CHASSIS/ATTACHMENTS
10
7
3
11b
1
2
5
12
11c
4
6
11
11a
9
8

Артикул

Название

Примечание

Количество

1

KLP10110

DECAL

Lifting Capacities, Replaces KLP0116 And KLP0146

1шт.

1

KLP10120

DECAL

Lifting Capacities (Australia), Replaces KLP0117 And KLP0147

1шт.

2

KHP1537

DECAL

Danger/Caution: Attachment Interference

1шт.

3

KHP1819

WARNING DECAL

Notice, Raise Lever To Shut Off Controls, Replaces KHP1531

1шт.

4

KHP1538

WARNING DECAL

Caution, Falling Window

1шт.

5

KHP1540

WARNING DECAL

Notice, When Cleaning Cab Windows

1шт.

6

KHP1450

DECAL

Pull

2шт.

7

KHP1360

WARNING DECAL

Window

1шт.

8

162140A1

WARNING DECAL

Warning, Control Functions On This Machine

1шт.

9

KHP1601

DECAL

Case

1шт.

10

KHP1006

DECAL

Control Levers

1шт.

11

KHP1498

DECAL

Option, Incl. 11A, 11B, 11C

1шт.

11a

169357A1

DECAL

Option

1шт.

11b

KHP1510

DECAL

2nd Option

1шт.

11c

KHP1511

DECAL

Option + 2nd Option

1шт.

12

KHP1484

DECAL

1шт.

Выбрано товаров: 16
