Запчасти Case CX160 (02-16) - CYLINDER BLOCK (02) - ENGINE

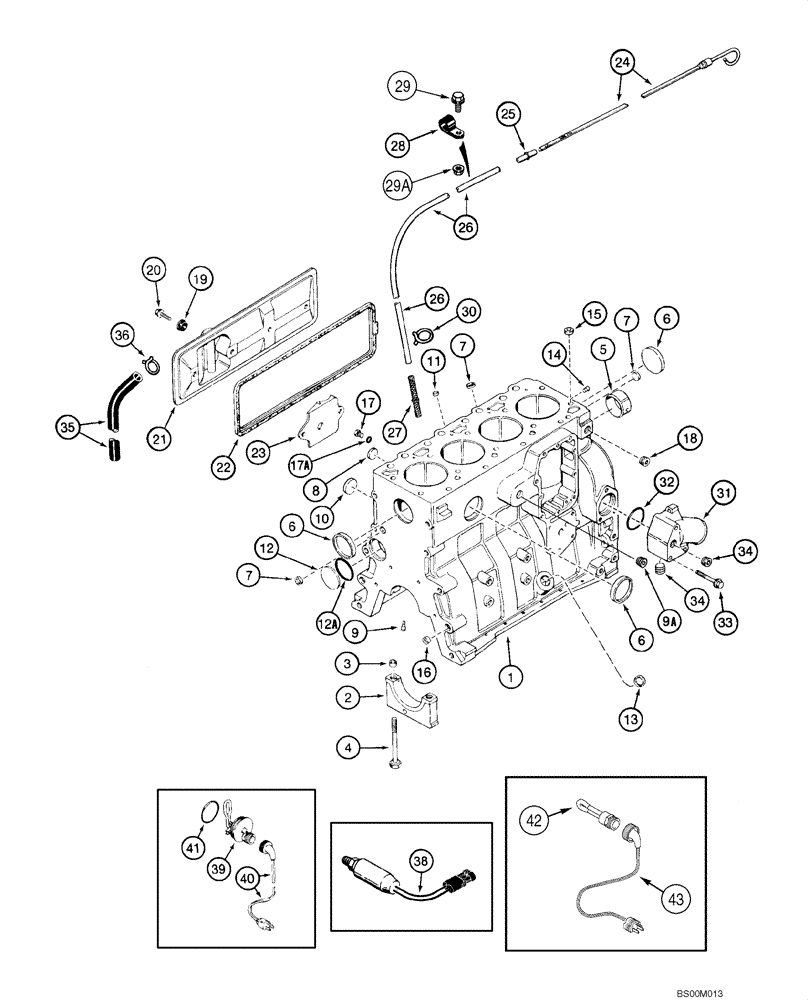

Схема запчастей Case CX160 - (02-16) - CYLINDER BLOCK (02) - ENGINE
34
38
43
36
2
19
15
14
25
7
1
8
30
6
18
23
4
10
29
26
29a
7
20
28
34
16
6
11
24
7
12a
12
21
17a
22
33
39
26
31
5
9
3
13
9a
35
17
27
40
41
42
6
32

Артикул

Название

Примечание

Количество

*

4TA-390 Emissions Certified Engine

1шт.

379541A1

ENGINE ASSEMBLY

ENGINE ASSY Complete, Includes All Parts Except Fan, Air Cleaner, Muffler and Exhaust Manifold, For Service Order 234277A2

1шт.

234277A2

BASIC ENGINE

Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler; See Note

1шт.

234277A2R

REMAN-BASIC ENGINE

Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler

1шт.

234277A2C

CORE-BASIC ENGINE

Return Number

1шт.

J933648

SHORT ENGINE

Short, Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings, Incl. 1 - 8

1шт.

J933648R

SHORT ENGINE

Remanufactured

1шт.

J933648C

CORE-ENGINE

Return Number

1шт.

1

87444172

BLOCK ASSY.

Incl. 2 - 8, Also Order J933220 Kit and (2) 250838A1 Adapters, Replaces J932012

1шт.

2

J936791

BEARING CAP

Incl. 3

5шт.

3

J900068

BEARING WASHER

18 mm OD

2шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

5

REF

INSTRUCTION

Bushing, See Figure 02-15

1шт.

6

A77782

PLUG

58 mm

3шт.

7

J900956

PLUG

18 mm OD

3шт.

8

J920706

PLUG

7/8 in dia

2шт.

*

J933220

PACKAGE,SERVICE

Incl. 9 - 18D

1шт.

9

J937214

NOZZLE CAP

4 Used In This Application

6шт.

9a

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

10

J900958

PLUG

32 mm OD

1шт.

11

J900955

PLUG

10 mm OD

3шт.

12

41-3038

PLUG,Exp, 2 3/8"

1шт.

12a

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

13

J920706

PLUG

22 mm, Not Used In This Application

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

15

J902343

DOWEL

16 mm OD

2шт.

16

J900068

BEARING WASHER

18 mm OD

2шт.

17

J678923

PLUG,M10 x 1

10 mm, Incl. 17A, One Used In This Application

3шт.

17a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

18

A77429

PLUG

1/2 PT

1шт.

18a

J678921

PLUG

14 mm, Incl. 18B, Not Used In This Application, Not Illustrated

1шт.

18b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Not Illustrated

1шт.

18c

J932296

PLUG

Incl. 18D, Not Used In This Application, Not Illustrated

1шт.

18d

J330478

O-RING,0.07" Thk x 0.676" ID

Not Illustrated

1шт.

19

J900267

SEAL

4шт.

20

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

21

J936186

COVER

Incl. 23

1шт.

22

J283767

GASKET,7.4mm Thk

1шт.

23

J907586

BAFFLE

1шт.

24

J933113

DIPSTICK

1шт.

25

J905802

FITTING,9.53 mm OD x 39 mm L

1шт.

26

J933114

TUBE,9.53 mm ID x 12.7 mm OD x 600 mm L

1шт.

27

A77645

TUBE

1шт.

28

A77508

CLAMP

7/16" ID

1шт.

29

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

29a

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

30

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

31

J934878

MANIFOLD

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

34

A77429

PLUG

1/2 PT

2шт.

35

1981643C1

HOSE

800 mm (31-1/2 in)

1шт.

38

1546461C2

SWITCH

Oil Pressure

1шт.

*

ENGINE BLOCK HEATER

1шт.

*

196803A1

KIT

120V, Incl. 39 - 40

1шт.

39

NSS

NOT SOLD SEPARAT

Element

1шт.

40

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

41

J910517

O-RING

1шт.

*

309651A1

KIT

120V, Incl. 42, 43

1шт.

42

NSS

NOT SOLD SEPARAT

Element

1шт.

43

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

*

ENGINE OVERHAUL KIT

1шт.

*

87425543

KIT

Repair, Engine Overhaul, Incl. 44 - 51, Not Illustrated

1шт.

44

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

See Figure 02-20

4шт.

45

J934047

PIN,40mm OD x 82.68mm L

See Figure 02-20

4шт.

46

A77465

BEARING SET

See Figure 02-20

4шт.

47

A77405

CRANKSHAFT BEARING

See Figure 02-18

4шт.

48

A77896

BEARING SET

See Figure 02-18

1шт.

49

87434406

GASKET

See Figure 02-21

1шт.

50

J283333

CYLINDER HEAD GASKET,2.32mm Thk

See Figure 02-13

1шт.

51

A77673

GASKET KIT

Not Used In This Application

1шт.

Выбрано товаров: 71
