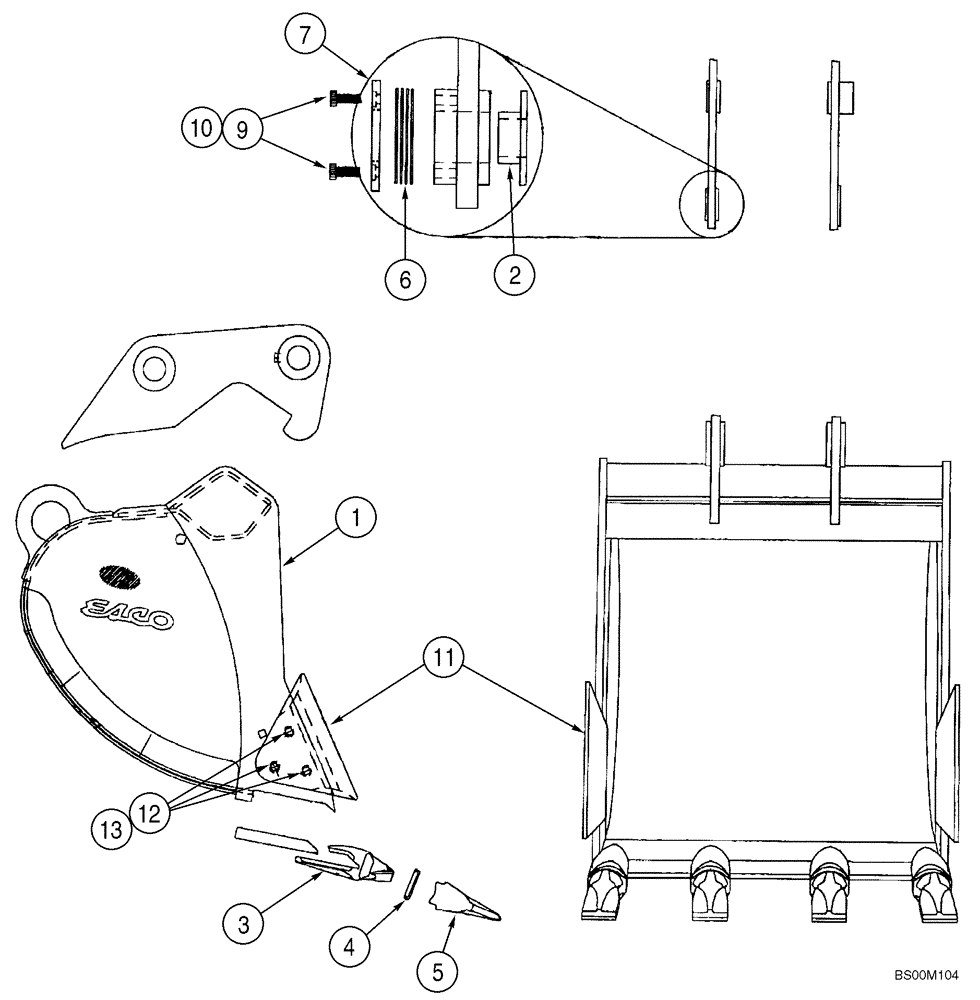

Запчасти Case CX160 (09-43) - BUCKETS, ESCO - HEAVY DUTY BUCKETS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

Bucket, 0,57 cu yd, Bucket, With 4 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 0,76 cu yd, Bucket, With 4 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 0,95 cu yd, Bucket, With 5 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 0,97 cu yd, Bucket, With 5 Teeth

1шт.

2

387469A1

BUSHING

1шт.

3

233793A1

ADAPTER

4-5шт.

4

233795A1

BUCKET TOOTH KEY

4-5шт.

5

233794A1

BUCKET TOOTH

4-5шт.

6

378630A1

SHIM

6шт.

7

378631A1

PLATE

1шт.

8

378632A1

PIN

Not Illustrated

2шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

10

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

378649A1

KIT

Shroud, Incl. 11 - 13

1шт.

11

244961A1

SHROUD

2шт.

12

232-41314

LOCK NUT,7/8"-9, GC

6шт.

13

320-21444

CARRIAGE BOLT,#3, 7/8" - 9 x 2 3/4", Gr 8

6шт.

387465A1

KIT

Adjustment, Incl. 2, 6 - 10

1шт.
