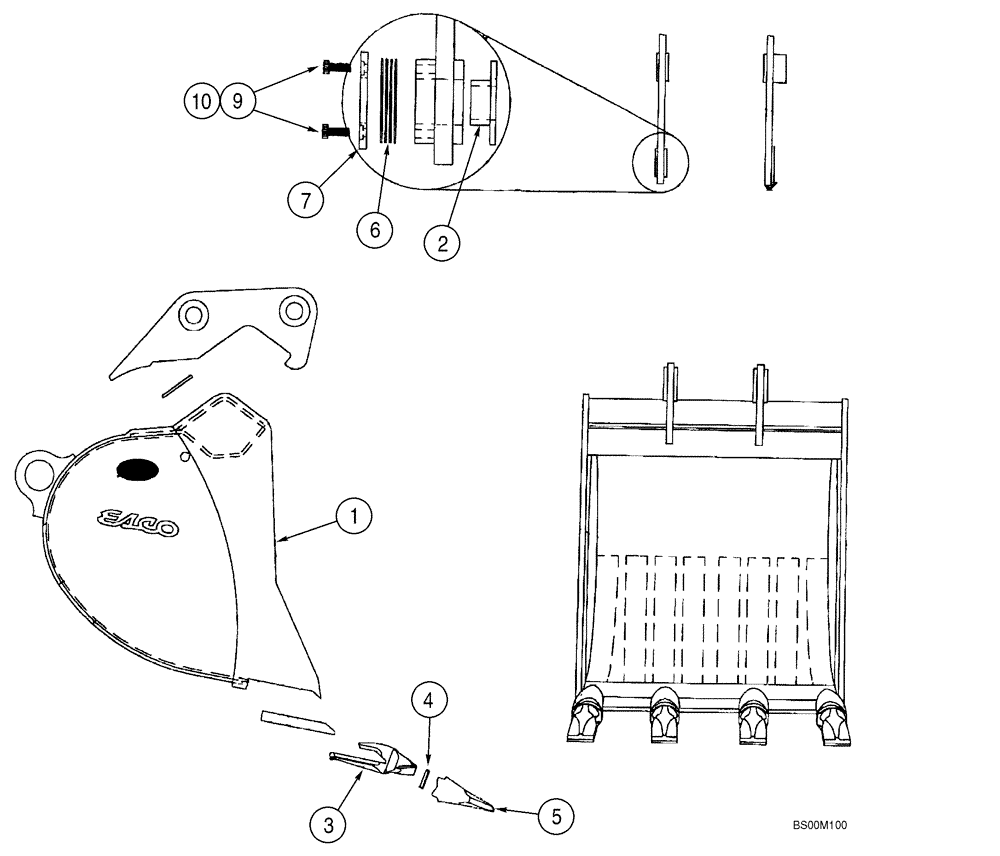

Запчасти Case CX160 (09-42) - BUCKETS, ESCO - GENERAL PURPOSE BUCKETS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

Bucket, 0,58 cu yd, Bucket, With 4 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 0,76 cu yd, Bucket, With 4 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 0,95 cu yd, Bucket, With 5 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 1,14 cu yd, Bucket, With 6 Teeth

1шт.

2

387469A1

BUSHING

1шт.

3

127557A1

ADAPTER

4-6шт.

4

233792A1

BUCKET TOOTH KEY

4-6шт.

5

127558A1

BUCKET TOOTH

4-6шт.

6

378630A1

SHIM

6шт.

7

378631A1

PLATE

1шт.

8

378632A1

PIN

Not Illustrated

2шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

10

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

387465A1

KIT

Incl. 2, 6 - 10

1шт.
