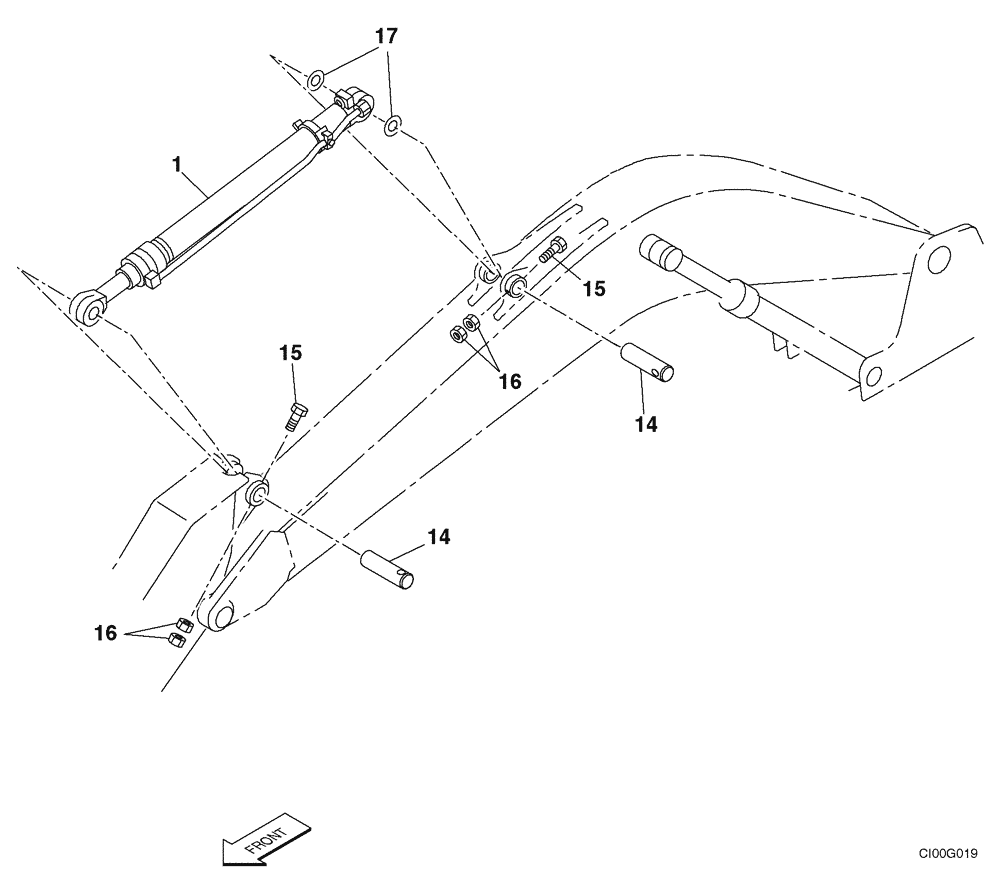

Запчасти Case CX160 (09-38) - ARM CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS

1

KLV0308

HYDRAULIC CYLINDER

Arm, Models Without Load Hold, See Figure 08-75

1шт.

1

KLV0353

HYDRAULIC CYLINDER

Arm, Models With Load Hold, See Figure 08-76

1шт.

14

KLV0312

PIN

2шт.

15

514-1222

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

2шт.

16

829-11420

NUT,M20 x 1.5, Cl 10

4шт.

17

159741A1

SHIM

2шт.
