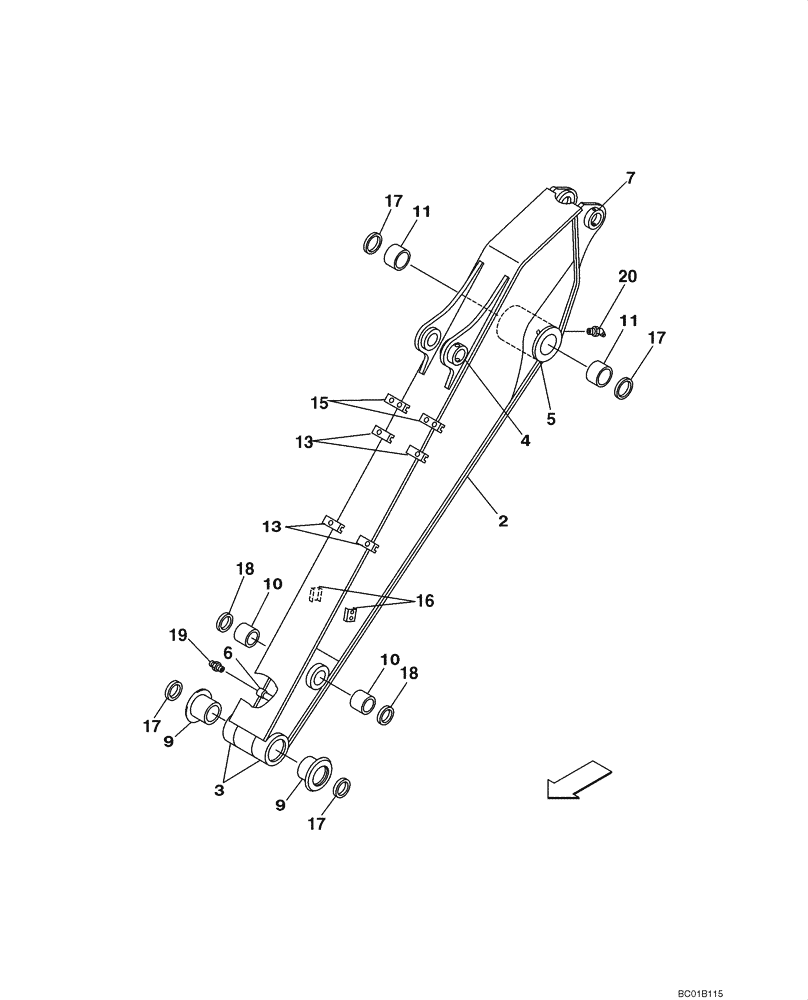

Запчасти Case CX160 (09-37A) - ARM, EXCAVATOR, 3,10 METER (10 FT 2 IN) (09) - CHASSIS/ATTACHMENTS

Arm 3,10 Meter (10 Foot 2 Inch)

1шт.

KLV0408

DIPPER

Incl. 2 - 16, Order From Machinery Price List

1шт.

2

NSS

NOT SOLD SEPARAT

Arm

1шт.

3

KLV0332

BOSS

2шт.

4

160675A1

COLLAR

1шт.

5

KLV0333

BOSS

1шт.

6

151365A1

FITTING

1шт.

7

159650A1

COLLAR

1шт.

9

163482A1

BUSHING,80mm ID x 132mm OD x 80mm L

2шт.

10

163483A1

BUSHING,65mm ID x 80mm OD x 55mm L

2шт.

11

KRV1784

SELF LUB RING

2шт.

13

KNV1134

BAR

4шт.

15

KNV1497

BAR

2шт.

16

KNV1158

BAR

2шт.

17

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

6шт.

18

160674A1

SEAL,65mm ID x 80mm OD x 5mm Thk

2шт.

19

153630A1

LUBE NIPPLE

1шт.

20

153631A1

LUBE NIPPLE,1/8"-27 NPT

1шт.
