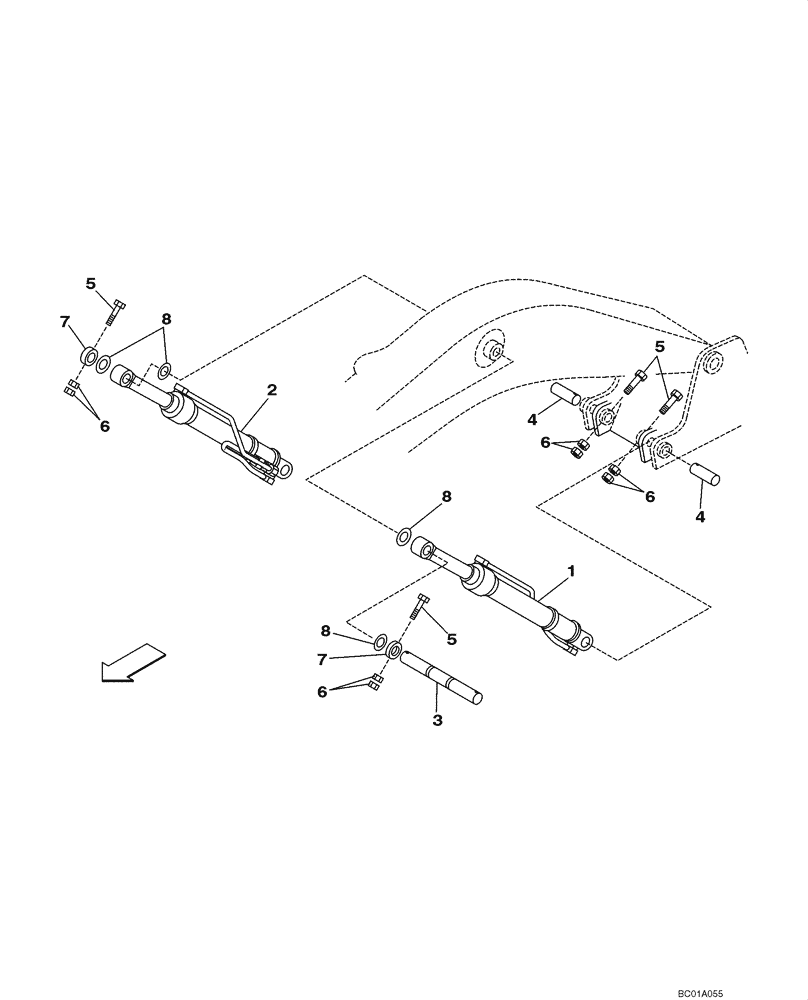

Запчасти Case CX160 (09-36) - BOOM CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS

1

KLV0306

HYDRAULIC CYLINDER

Left Hand, Models Without Load Hold, See Figure 08-73

1шт.

1

KLV0352

HYDRAULIC CYLINDER

Left Hand, Models With Load Hold, See Figure 08-74

1шт.

2

KLV0307

HYDRAULIC CYLINDER

Right Hand, Models Without Load Hold, See Figure 08-71

1шт.

2

KLV0351

HYDRAULIC CYLINDER

Right Hand Models With Load Hold, See Figure 08-72

1шт.

3

KLV0311

PIN

1шт.

4

163473A1

PIN,70mm OD x 243mm L

2шт.

5

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

2шт.

6

829-13416

NUT,M16 x 1.5, Cl 10

8шт.

7

150138A1

COLLAR

2шт.

8

161294A1

SHIM

4шт.
