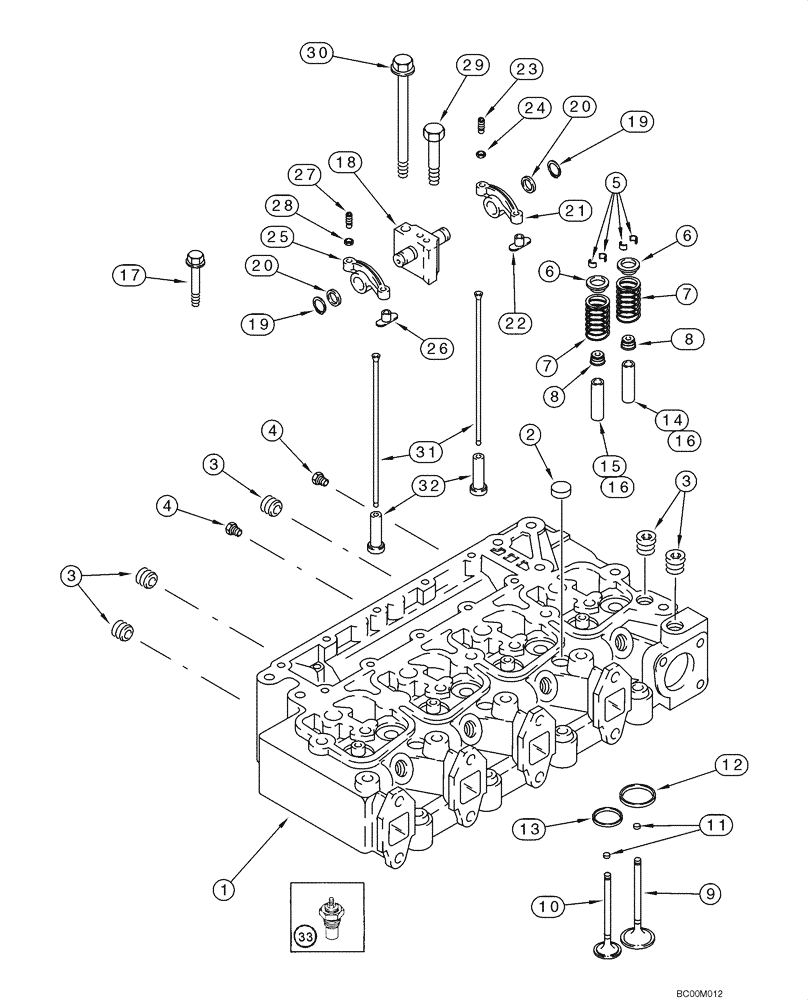

Запчасти Case CX160 (02-14) - CYLINDER HEAD - VALVE MECHANISM (02) - ENGINE

.

4TA-390 Emissions Certified Engine

1шт.

87430141

CYLINDER HEAD

With Valves, Incl. 1, 2, 5 - 11, Replaces J927330

1шт.

87430142

REMAN-CYLINDER HEAD

Reman For New P/N 87430141

1шт.

87430143

CORE-CYLINDER HEAD

Return Part Number

1шт.

1

NSS

NOT SOLD SEPARAT

Cylinder Head, Without Valves, Incl. 2, Replaces J933422

1шт.

2

A77782

PLUG

3шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

5шт.

4

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

5

CASJ900250

RETAINER

16шт.

6

87433959

RETAINER

Replaces J935038

8шт.

7

J932453

SPRING

Replaces J926700

8шт.

8

87433962

SEAL

Replaces J921640

8шт.

9

J920867

VALVE

4шт.

10

J920868

VALVE

4шт.

11

J910412

WEAR PAD

Service Repair Only

1шт.

12

J906854

SEAT, VALVE

Intake, Service Repair Only

4шт.

13

J904105

SEAT, VALVE

Exhaust, Service Repair Only

4шт.

14

J904408

GUIDE

14 mm OD, Intake, Service Repair Only

4шт.

15

J904409

GUIDE

14 mm OD, Exhaust, Service Repair Only

4шт.

16

J906206

GUIDE

11 mm OD, Intake And Exhaust, Service Repair Only

8шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm

10шт.

18

J922488

SUPPORT

4шт.

19

J900242

SNAP RING

8шт.

20

J900245

WASHER

8шт.

21

J910811

ROCKER

Intake, Incl. 22 - 24

4шт.

22

NSS

NOT SOLD SEPARAT

Insert

1шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

Replaces J934086

1шт.

24

A77902

NUT

3/8 - 24 NF

1шт.

25

J910810

ROCKER

Exhaust, Incl. 26 - 28

4шт.

26

NSS

NOT SOLD SEPARAT

Insert

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

Replaces J934086

1шт.

28

A77902

NUT

3/8 - 24 NF

1шт.

29

J901221

BOLT

M8 x 75

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm

4шт.

31

J284377

PUSH ROD

8шт.

32

J931623

TAPPET

8шт.

33

1983238C1

SENSOR,1/2" - 14

Coolant Temperature; With No. 10-32 UNF Stud Connection; If Used

1шт.

33

KHR2433

SENSOR

SWITCH,Temperature; With Packard Plug-In Style Connection; If Used

1шт.

34

153493A1

BUSHING

Used With REF 33, Not Illustrated

1шт.
