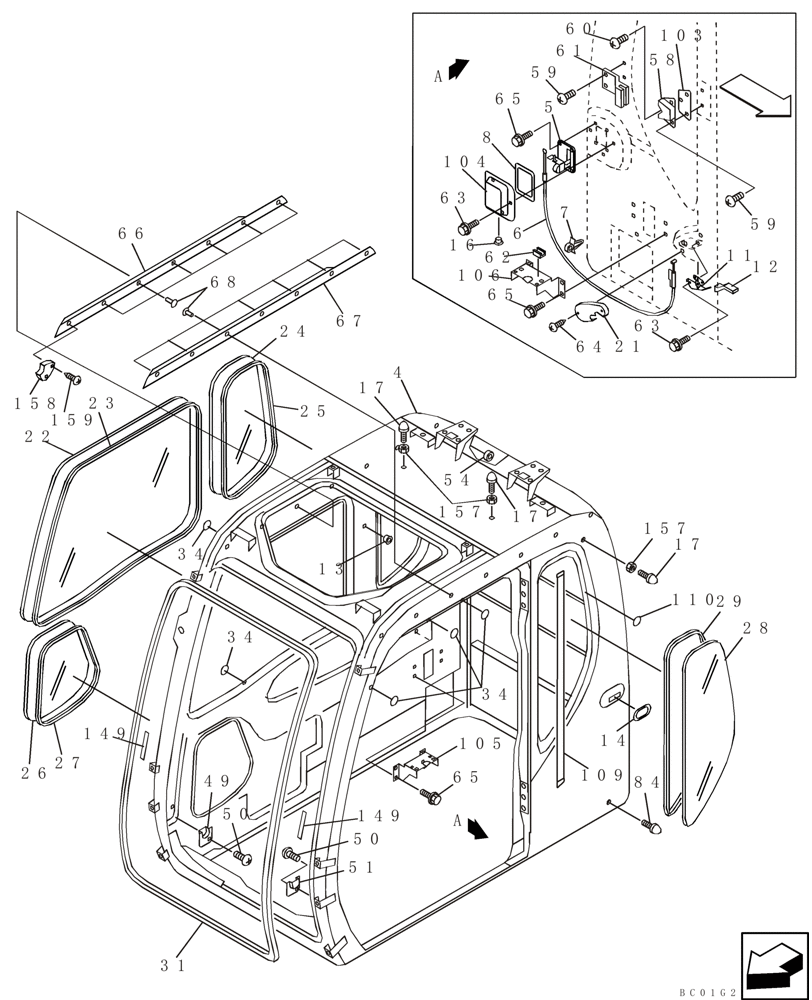

Запчасти Case CX160 (09-26) - CAB - GLASS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
KHN3269
CAB
Complete, Incl. 4 - 159, Also Includes Parts on Figure(s) 04-04, 09-26 - 09-29B; Replaces KHN2608; No Longer Available, Order KHN3270
1шт.
KHN3270
CAB
Complete, Incl. 4 - 159, Also Includes Parts on Figure(s) 04-04, 09-26 - 09-29B; P.I.N. DAC0716259 -; Replaces KHN2608
1шт.
4
KHN2943
CAB BODY
Frame; P.I.N. DAC0716101 - DAC0716258
1шт.
4
KHN3327
CAB BODY
Frame; P.I.N. DAC0716259 -
1шт.
5
161384A1
RH DOOR LOCK
Door
1шт.
6
161380A1
CABLE
1шт.
7
161381A1
COLLAR
2шт.
8
KHN2910
SEAL
Used With KHN2608 and KHN3269 Cab
1шт.
8
KHN3026
SEAL
Used With KHN3270 Cab
1шт.
11
161376A1
LEVER
1шт.
12
161375A1
HANDLE
1шт.
13
161358A1
COAT HOOK
1шт.
14
161373A1
GROMMET
1шт.
16
161383A1
GROMMET
1шт.
17
161356A1
STOP
3шт.
21
161378A1
COVER
1шт.
22
KHN2939
GLASS
1шт.
23
KHN2637
WEATHERSTRIP
1шт.
24
KHN2941
GLASS
1шт.
25
KHN2639
WEATHERSTRIP
1шт.
26
KHN2940
GLASS
1шт.
27
KHN2641
WEATHERSTRIP
1шт.
28
KHN2938
GLASS
1шт.
29
KHN2936
SEAL, GLASS
1шт.
31
KHN2655
WEATHERSTRIP,4508mm L
1шт.
34
KHN2658
SEAL
5шт.
49
KHN11680
STOP LOCK
Replaces KHN2670
1шт.
50
KHN2671
SCREW
M6 x 1 x 20, If Used
2шт.
51
KHN11690
STOP LOCK
Replaces KHN2672
1шт.
54
KHN2676
STOP
1шт.
58
KHN2680
LATCH HOOK
1шт.
59
KHN2681
SCREW
M6 x 1 x 30
4шт.
60
KHN2682
SCREW,Spcl
M6 x 1 x 12
1шт.
61
KHN2683
HOLDER
1шт.
62
KHN2684
STOP
1шт.
63
KHN2686
BOLT,Spcl
5шт.
64
KHN2687
SCREW,Spcl
M5 x 14
4шт.
65
KHN2688
BOLT,Spcl
M8 x 25
12шт.
66
KHN2689
PROTECTOR
1шт.
67
KHN2690
PROTECTOR
1шт.
68
KHN2691
ANCHOR
13шт.
84
KHN2704
STOP
1шт.
103
KHN2722
LEDGER PLATE
1шт.
104
KHN2723
CAP ASSY.
1шт.
105
KHN2724
BRACKET
1шт.
106
KHN2725
SUPPORT
1шт.
109
KHN2942
BRACKET
Trim; P.I.N. DAC0716101 - DAC0716258
1шт.
109
KHN3234
GASKET
P.I.N. DAC0716259 -
1шт.
110
KHN2729
SEAL
1шт.
149
KHN2982
PAD, RUBBER
2шт.
157
161357A1
NUT
3шт.
158
KHN2974
BRACKET
1шт.
159
KHN2975
SCREW,Spcl
2шт.
Выбрано товаров: 53
