Запчасти Case CX160 (02-13) - CYLINDER HEAD - COVER (02) - ENGINE

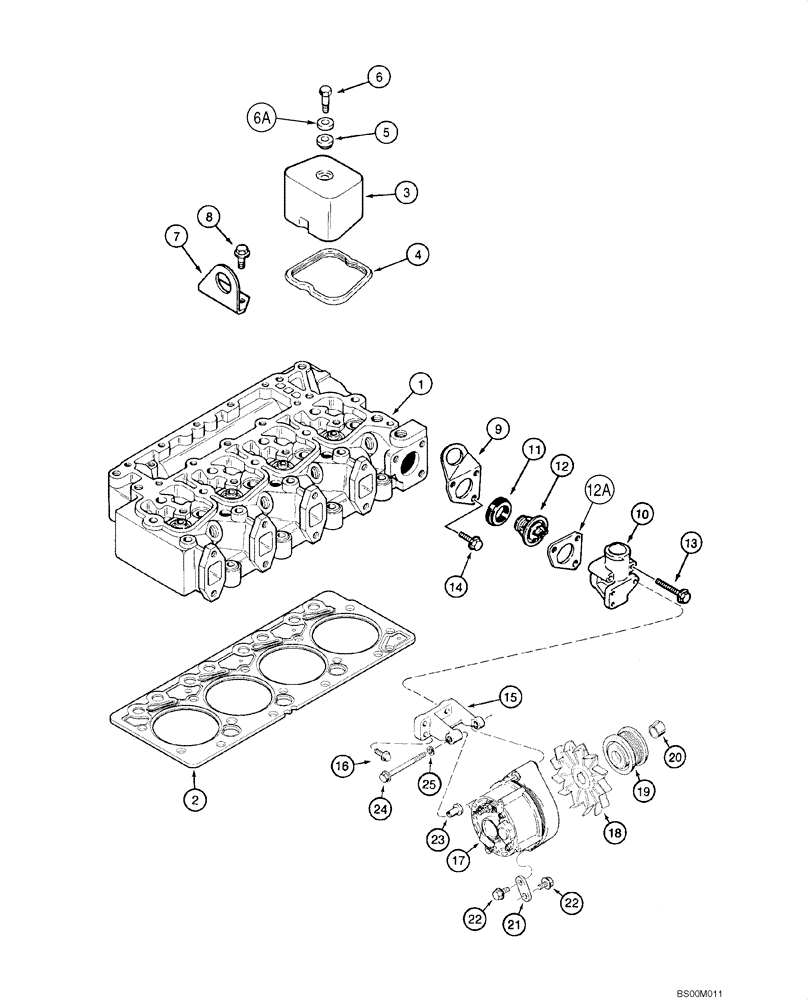

Схема запчастей Case CX160 - (02-13) - CYLINDER HEAD - COVER (02) - ENGINE
20
6
22
19
4
9
18
2
3
25
14
8
6a
23
10
12a
22
5
13
21
1
24
17
12
7
11
15
16

Артикул

Название

Примечание

Количество

4TA-390 Emissions Certified Engine

1шт.

1

REF

INSTRUCTION

Head, See Figure 02-14

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

Standard

1шт.

2

J283336

GASKET

0,25 mm, Notch 2

1шт.

2

J283338

GASKET

0,50 mm, Notch 3

1шт.

3

J928404

COVER

4шт.

4

J930906

GASKET

4шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

4шт.

6

J907049

BOLT,Hex

M8 x 21

4шт.

6a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

7

J908118

BRACKET

Lift, Rear

1шт.

8

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

2шт.

THERMOSTAT AND HOUSING

1шт.

9

J903757

BRACKET

Lift, Front

1шт.

10

J285102

HOUSING

Thermostat

1шт.

A77736

THERMOSTAT

Incl. 11, 12, 12A

1шт.

11

J923331

GASKET

1шт.

12

NSS

NOT SOLD SEPARAT

Thermostat

1шт.

12a

J920336

PLATE

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J287096

SUPPORT

Incl. 15A

1шт.

15a

838-5310

LOCK PIN,M3 x 10, Slotted

Not Illustrated

2шт.

16

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

17

A187916

ALTERNATOR,24V, 45A

See Figure 04-11

1шт.

18

221425R1

FAN

See Figure 04-11

1шт.

19

J908560

PULLEY

See Figure 04-11; Ref 20 Retainer Not Requred With Replacement Pulley 84538542

1шт.

20

J908563

RETAINER

See Figure 04-11; Not Used Wtih Replacement Pulley 84538542

1шт.

21

J903089

SUPPORT

1шт.

22

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

23

87448092

SPACER

Alternator Mounting

1шт.

24

J908226

FLANGE BOLT,Hex, M10 x 1.5 x 95mm

M10 x 95

1шт.

25

892-11010

LOCK WASHER,M10

1шт.

Выбрано товаров: 33
