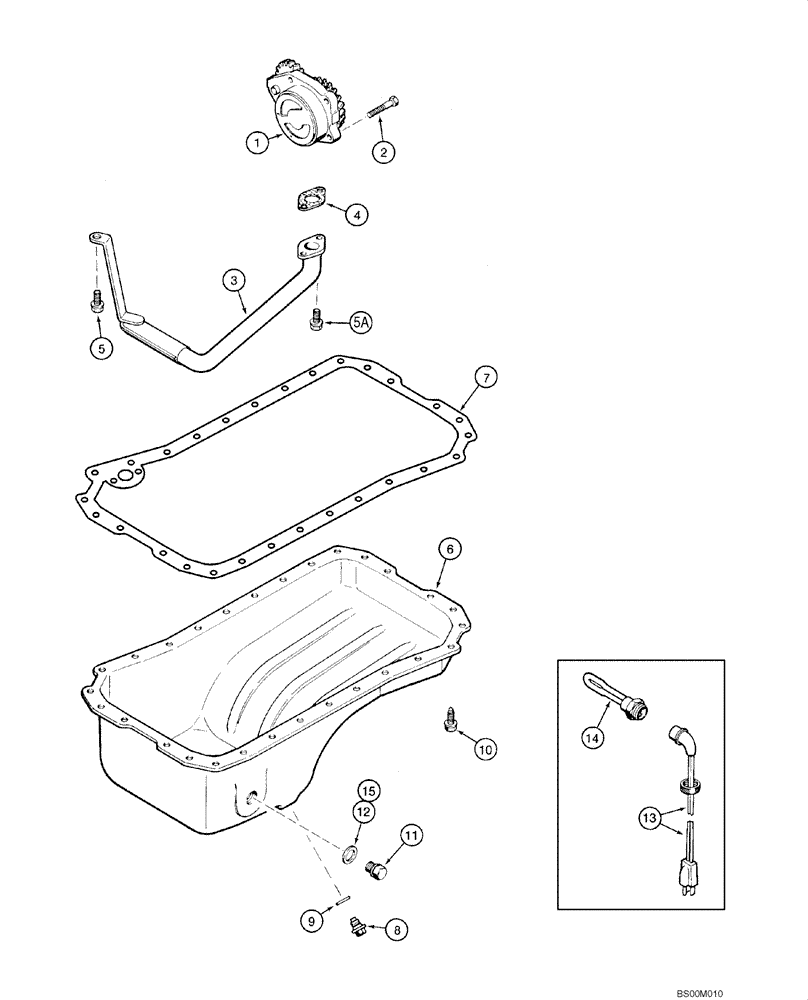

Запчасти Case CX160 (02-12) - OIL PUMP, PAN - HEATER (02) - ENGINE

4TA-390 Emissions Certified Engine

1шт.

1

J937027

PUMP, ENGINE OIL

1шт.

JR937027

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. Only

1шт.

JC937027

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return Number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J905206

TUBE,1" OD

1шт.

4

J938157

GASKET,1.2mm Thk

1шт.

5

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

5a

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL

1шт.

7

A77673

GASKET KIT

1шт.

7

J929093

PLATE

Not Shown - Stiffener

1шт.

8

J924147

PLUG,M18 x 1.5

M18

1шт.

9

J920773

SEALING WASHER

1шт.

10

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

32шт.

11

J924148

PLUG,M22 x 1.5

M22

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

87307915

SEALANT

RTV Silicone, Use Between Block and Oil Pan

1шт.

ENGINE OIL HEATER

1шт.

A77490

KIT

120V, Incl. 13, 14, Also Order J902425, Ref 12

1шт.

13

NSS

NOT SOLD SEPARAT

Element

1шт.

14

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

J823494

SEALANT

Liquid Gasket, Use Between Oil Pan and Block, Oil Pan and Plate, Ref 7

1шт.
