Запчасти Case CX160 (09-14) - SEAT, MOUNTING - SEAT BELTS (09) - CHASSIS/ATTACHMENTS

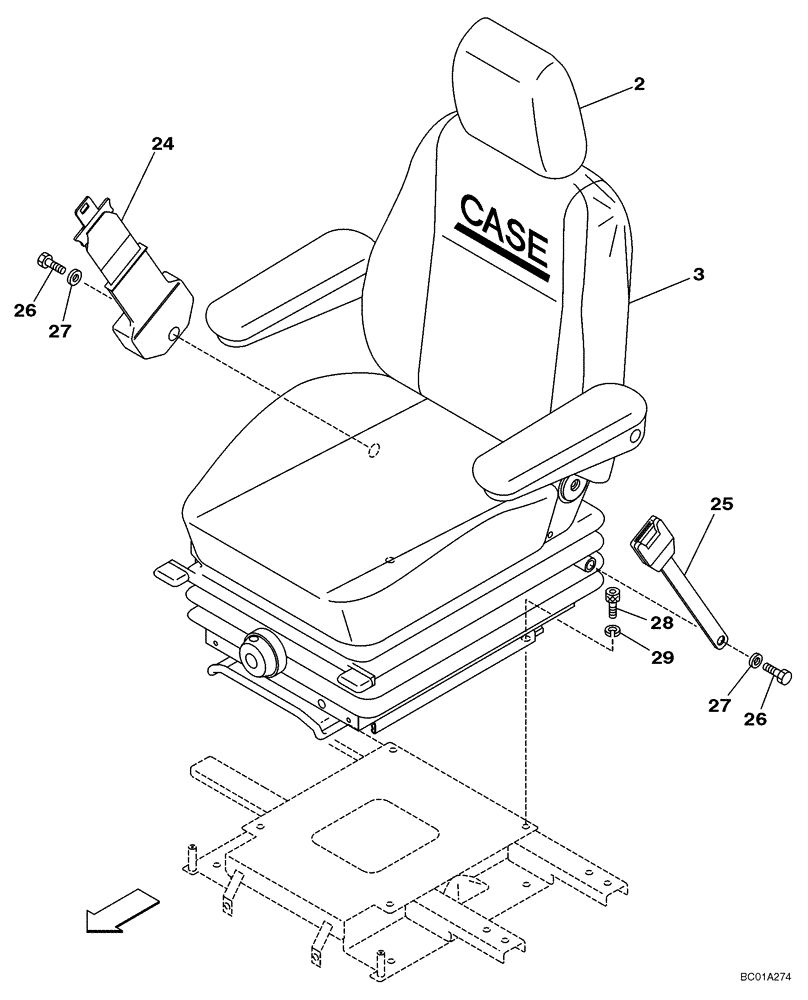

Схема запчастей Case CX160 - (09-14) - SEAT, MOUNTING - SEAT BELTS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

2

166096A1

HEADREST, SEAT

HEADREST Grey

1шт.

87350977

SEAT HEADREST

Wheat

1шт.

3

300642A1

SEAT ASSY.

Grey, See Figure 09-15

1шт.

87344650

DRIVER SEAT

ASSY., Wheat, See Figure 09-15

1шт.

87706012

SEAT BELT

Kit (With 3" Belt and Retractable), Incl 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Belt, Right Hand

1шт.

25

NSS

NOT SOLD SEPARAT

Belt, Left Hand

1шт.

26

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

27

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

28

863-8016

HEX SOC SCREW,M8 x 16mm, Cl 12.9

2шт.

29

892-11008

LOCK WASHER,8mm ID

2шт.

Выбрано товаров: 11
