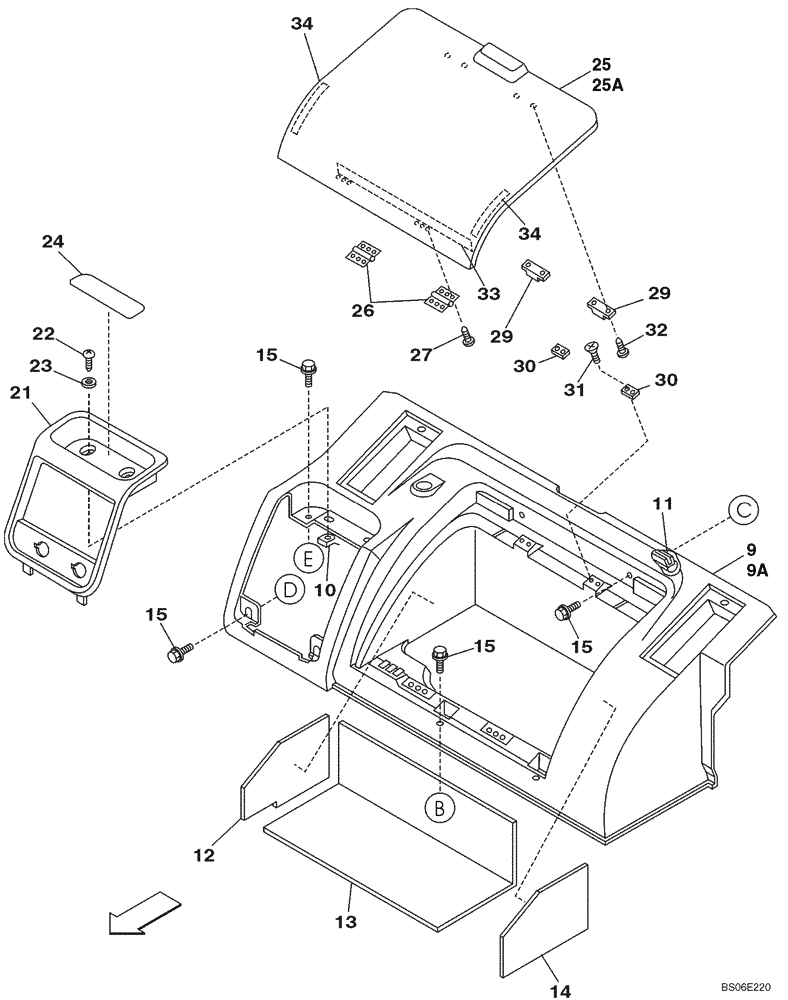

Запчасти Case CX160 (09-13) - CONSOLE, CONTROL - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS

KHN2236

BOX

Incl. 9 - 14; Grey

1шт.

KHN3589

PADDING

Incl. 9A - 14; Wheat

1шт.

9

KHN2237

BOX

Grey

1шт.

9a

KHN3591

BOX

Wheat

1шт.

10

KHN2303

SPECIAL NUT

2шт.

11

KHN2304

SEAL

1шт.

12

KHN2305

SEAL

1шт.

13

KHN2306

SEAL

1шт.

14

KHN2307

SEAL

1шт.

15

KHN2309

BOLT,Spcl

7шт.

21

KHN2238

BRACKET

1шт.

22

KHR2740

SELF-TAP SCREW

2шт.

23

KHN2317

WASHER

2шт.

24

KHN2322

SEAL

1шт.

25

KHN2242

COVER

Grey

1шт.

25a

KHN3597

COVER

Wheat

1шт.

26

KHN2321

HINGE

2шт.

27

KHR2731

SELF-TAP SCREW

12шт.

28

KHN2320

CATCH

Incl. 29, 30

2шт.

29

KHN2333

MAGNET

1шт.

30

KHN2334

PLATE

1шт.

31

152031A1

SCREW

4шт.

32

KHR2729

SELF-TAP SCREW

4шт.

33

KHN2323

RUBBER SEAL

1шт.

34

KHN2324

SEAL

2шт.
