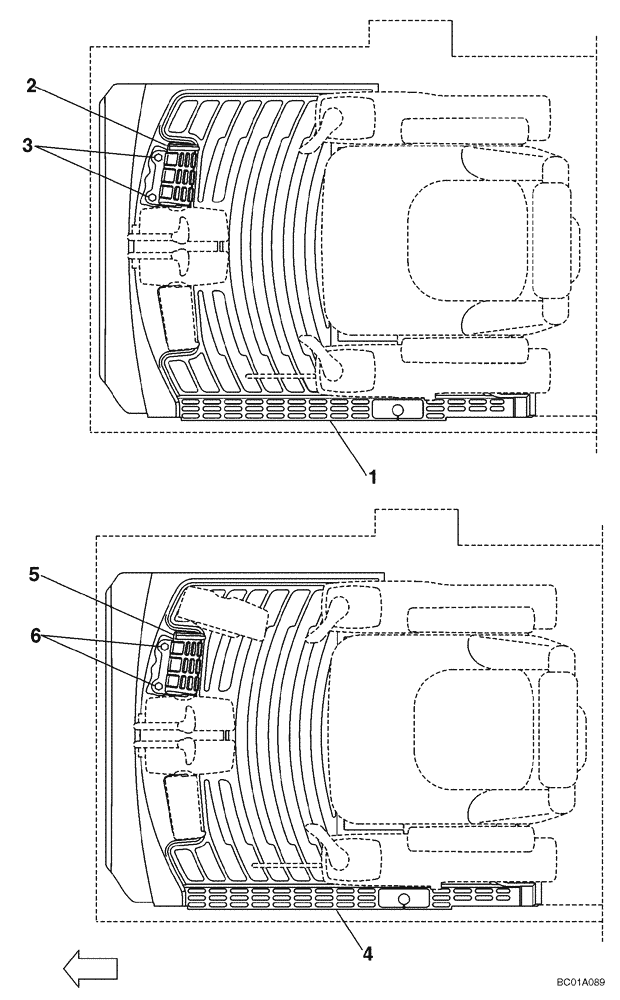

Запчасти Case CX160 (09-11) - MAT, FLOOR - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS

Models Without Auxiliary Hydraulics

1шт.

1

KHJ1611

FLOOR MAT

1шт.

2

KHJ1638

FOOT REST

Right Hand

1шт.

3

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

3b

KHJ1636

FOOT REST

Left Hand, Not Illustrated

1шт.

Models With Auxiliary Hydraulics

1шт.

4

KHJ1614

FLOOR MAT

1шт.

5

KHJ1638

FOOT REST

Right Hand

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

7

KHJ1636

FOOT REST

Left Hand, Not Illustrated

1шт.
