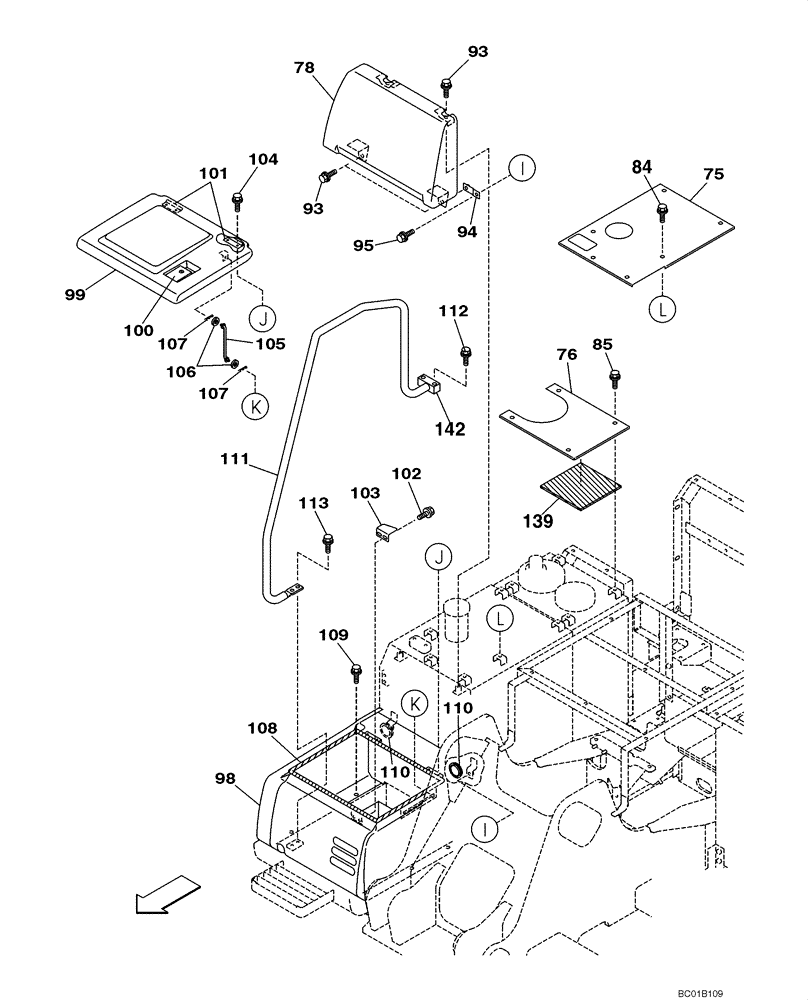

Запчасти Case CX160 (09-08) - STORAGE BOX - INSULATION (09) - CHASSIS/ATTACHMENTS

75

KNN1254Y2

COVER

1шт.

76

KNN1255Y2

COVER

1шт.

78

KLN0309Y2

COVER

1шт.

84

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

85

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

93

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

94

KLN0335

BRACKET

1шт.

95

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

98

KLN0354Y2

COVER

1шт.

99

KLN0355Y2

COVER

Incl. 100, 101

1шт.

100

150938A1

LOCK

1шт.

101

159118A1

HINGE

2шт.

102

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

103

159114A1

BRACKET

1шт.

104

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

4шт.

105

159119A1

STAY

1шт.

106

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

107

153181A1

COTTER PIN

2шт.

108

159116A1

GROMMET

1шт.

109

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

110

KHN2651

GROMMET

2шт.

111

KHN3032Y2

STAY

1шт.

112

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

113

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

139

KRN2092

SEAL

1шт.

142

KHN3033

COLLAR

2шт.
