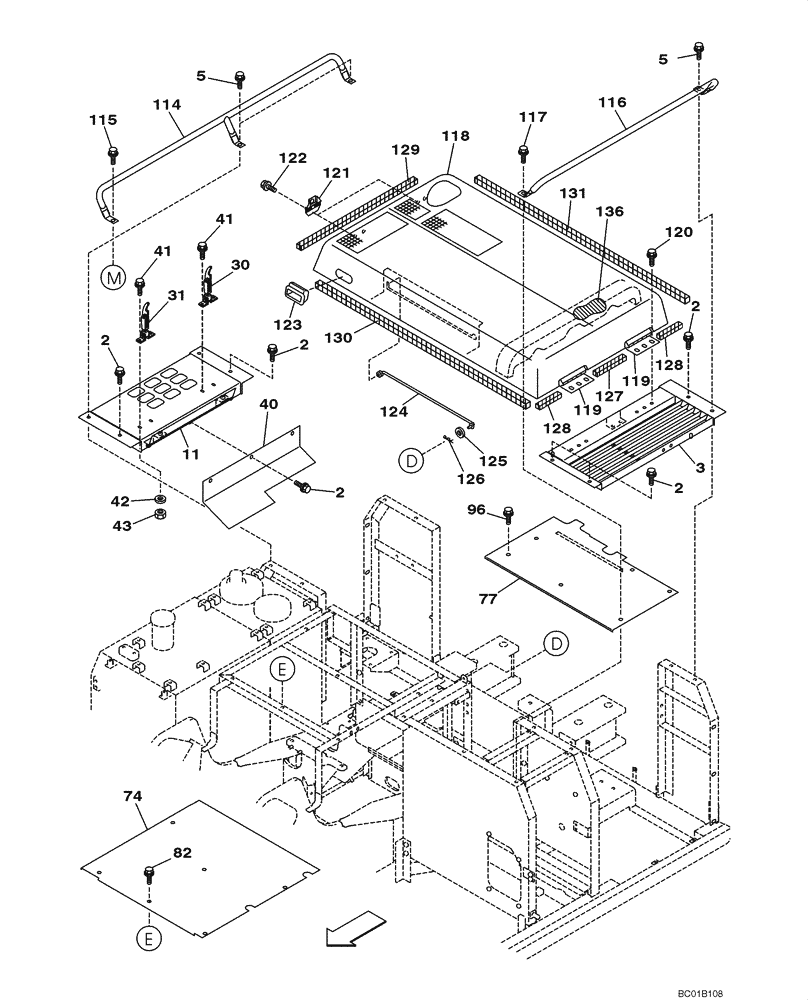

Запчасти Case CX160 (09-07) - HOOD, ENGINE - INSULATION (09) - CHASSIS/ATTACHMENTS

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

8шт.

3

KLN0343G1

FRAME

Replaces KLN0343Y2

1шт.

5

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

11

KLN0344G1

COVER ASSY

Replaces KLN0344Y2

1шт.

30

150790A1

LATCH

1шт.

31

152423A1

LATCH

1шт.

40

KNN1316

COVER

1шт.

41

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

42

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

43

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

74

KLN0322Y2

COVER

1шт.

77

KLN0347Y2

COVER

1шт.

82

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

96

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

114

KLN0337Y2

STAY

1шт.

115

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

116

KLN0338Y2

STAY

1шт.

117

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

118

KNN1355G1

HOOD

Incl. 119; Replaces KNN1297G1

1шт.

119

KHN2143

HINGE

2шт.

120

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

121

150785A1

STOP LOCK

2шт.

122

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

123

KHN1960

HANDLE

1шт.

124

KNN1326

STAY

1шт.

125

150409A1

WASHER

1шт.

126

153181A1

COTTER PIN

1шт.

127

KBN1075

FOAM INSULATION

1шт.

128

KNN1322

FOAM INSULATION

2шт.

129

KNN1323

FOAM INSULATION

1шт.

130

KNN1324

FOAM INSULATION

1шт.

131

KNN1325

FOAM INSULATION

1шт.

136

KNN1321

FOAM INSULATION

1шт.
