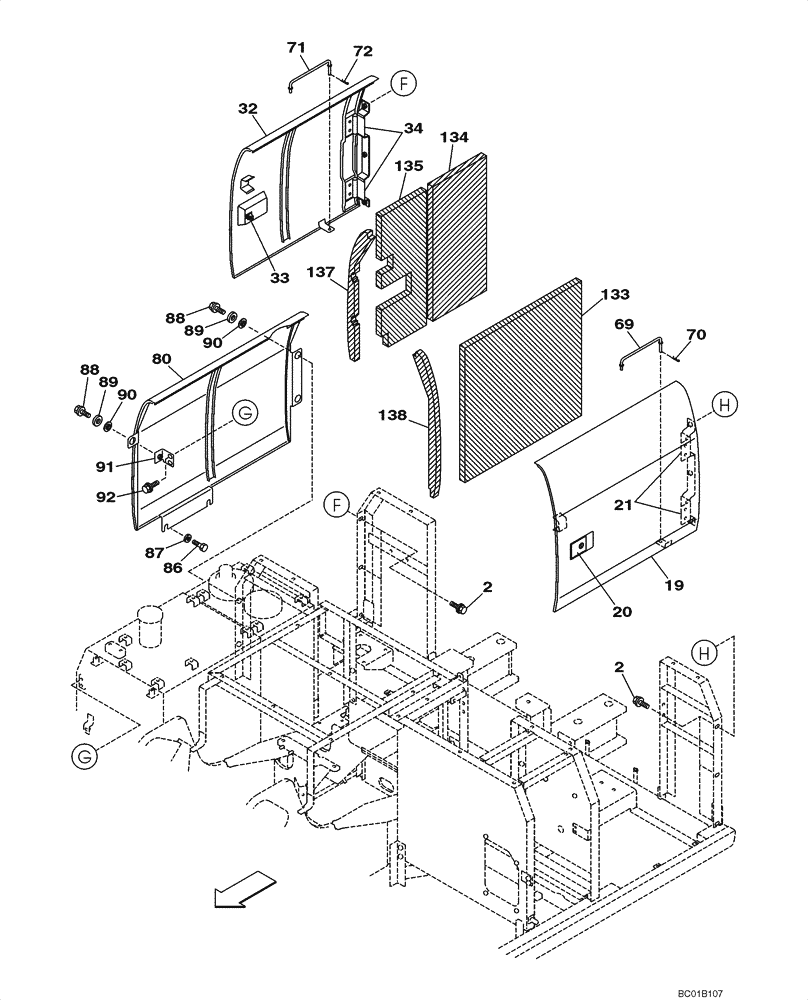

Запчасти Case CX160 (09-06) - ACCESS DOOR - INSULATION (09) - CHASSIS/ATTACHMENTS

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

19

KLN0305Y2

INSPECTION DOOR

Left Hand, Incl. 20, 21

1шт.

20

150938A1

LOCK

1шт.

21

159098A1

HINGE

2шт.

32

KLN0306Y2

INSPECTION DOOR

Right Hand, Incl. 33, 34

1шт.

33

150939A1

LOCK

1шт.

34

159098A1

HINGE

2шт.

69

159101A1

STAY

1шт.

70

153181A1

COTTER PIN

1шт.

71

159101A1

STAY

1шт.

72

153181A1

COTTER PIN

1шт.

80

KNN1242Y2

COVER ASSY

Right Hand Side

1шт.

86

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

87

151161A1

WASHER

2шт.

88

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

89

162409A1

WASHER

3шт.

90

KHN2061

WASHER

3шт.

91

KNN1206

BRACKET

1шт.

92

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

133

KLN0359

FOAM

Replaces KLN0329

1шт.

134

KLN0327

NOISE PROTECTION

1шт.

135

KLN0326

NOISE PROTECTION

1шт.

137

KRN2264

FOAM INSULATION

1шт.

138

KRN2265

FOAM INSULATION

1шт.
