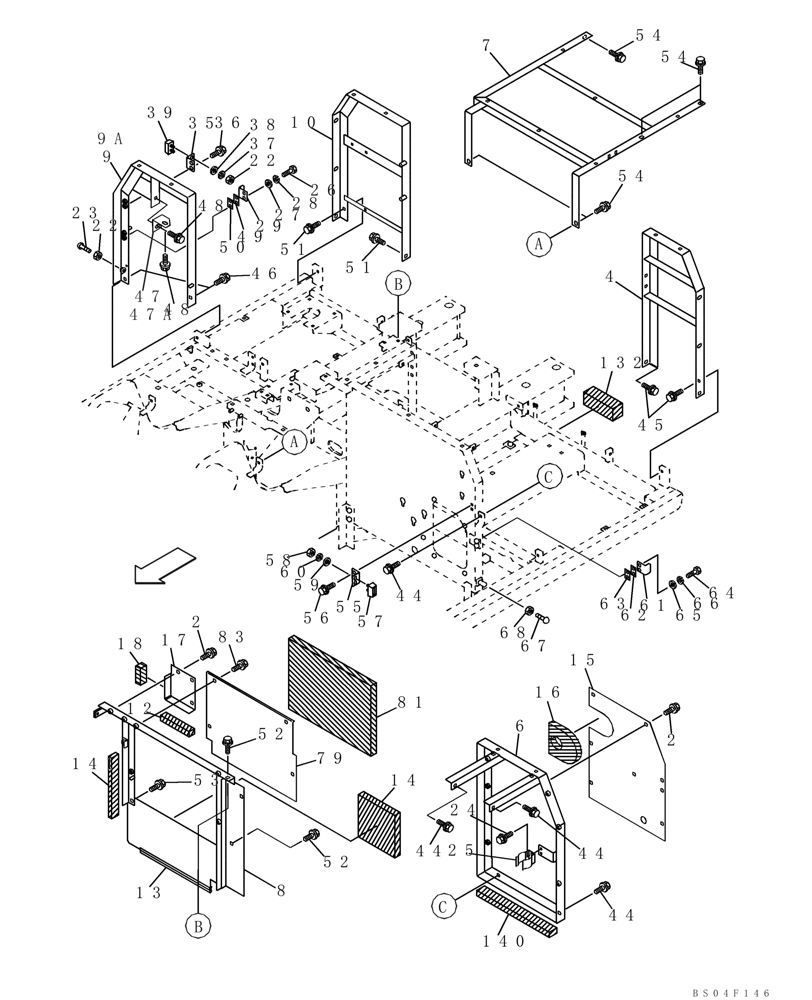

Запчасти Case CX160 (09-05) - FRAMES, COVERS - INSULATION (09) - CHASSIS/ATTACHMENTS

Upper Structure

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

9шт.

4

KLN0313

FRAME

Left Hand

1шт.

6

KLN0342

FRAME

Left Hand

1шт.

7

KLN0320

FRAME

Center

1шт.

8

KLN0345

FRAME

Center

1шт.

9

KNN1345

FRAME

Right Hand; P.I.N. DAC0716098 - DAC0716269

1шт.

9a

KNN1350

SUPPORT ASSY.

Right Hand; P.I.N.DAC0716270 -

1шт.

10

KLN0348

FRAME

Right Hand

1шт.

12

KLN0330

FOAM INSULATION

1шт.

13

HEH0085

SEAL PROTECTION

1шт.

14

KNN1264

NOISE PROTECTION

Center

1шт.

15

KNN1312

COVER

1шт.

16

KNN1318

NOISE PROTECTION

1шт.

17

KLN0325

COVER

1шт.

18

KLN0333

FOAM INSULATION

1шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

23

159091A1

STOP

1шт.

24

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

25

152772A1

HOLDER

1шт.

26

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

27

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

28

892-11012

LOCK WASHER,M12

2шт.

29

KHN2062

BRACKET

1шт.

35

KHN2417

BRACKET

1шт.

36

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

37

892-11010

LOCK WASHER,M10

2шт.

38

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

39

KRN2098

STOP

1шт.

44

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

45

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

46

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

47

KNN1346

BRACKET

P.I.N. DAC0716098 - DAC0716269

1шт.

47a

KNN1351

SUPPORT

P.I.N.DAC0716270 -

1шт.

48

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

49

152719A1

SHIM

1шт.

50

158749A1

SHIM

1шт.

51

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

52

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

53

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

54

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

55

KHN2528

BRACKET

1шт.

56

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

57

KRN2098

STOP

1шт.

58

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

59

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

60

892-11010

LOCK WASHER,M10

2шт.

61

KHN2527

BRACKET

1шт.

62

152719A1

SHIM

1шт.

63

158749A1

SHIM

1шт.

64

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

65

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

66

892-11012

LOCK WASHER,M12

2шт.

67

159091A1

STOP

1шт.

68

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

79

KNN1313

COVER

Center

1шт.

81

KNN1320

NOISE PROTECTION

1шт.

83

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

132

KLN0332

FOAM INSULATION

1шт.

140

KNN1263

NOISE PROTECTION

1шт.

141

KLN0331

FOAM INSULATION

1шт.
