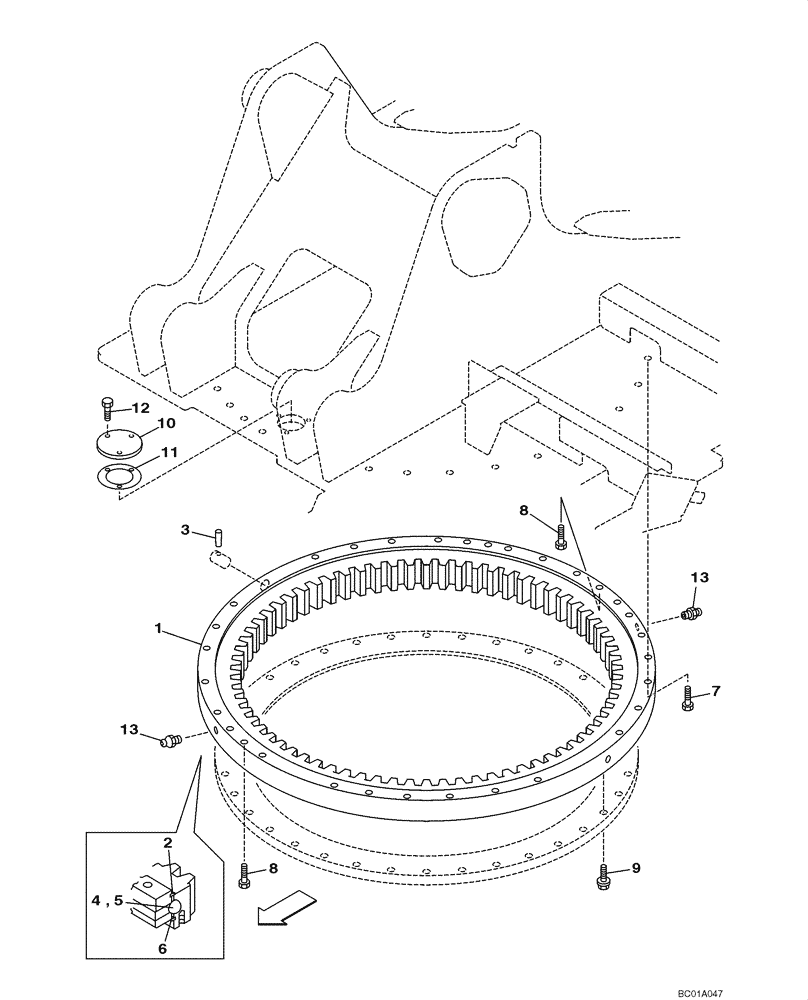

Запчасти Case CX160 (09-01) - TURNTABLE BEARING (09) - CHASSIS/ATTACHMENTS

1

KLB0202

SLEWING RING

Turntable, Incl. 2 - 6

1шт.

2

KRB1273

SEALING RING

Incl. 3

1шт.

3

160433A1

DOWEL

1шт.

4

150980A1

BEARING, BALL,28.57mm OD

120шт.

5

163865A1

SPACER

120шт.

6

KRB1274

SEALING RING

1шт.

7

627-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9, Full Thd

28шт.

8

165900A1

BOLT,M20 x 100mm, Cl 10.9

2шт.

9

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

36шт.

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

36шт.

10

158929A1

LID

1шт.

11

158930A1

CORK SEAL

1шт.

12

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

13

153630A1

LUBE NIPPLE

2шт.
