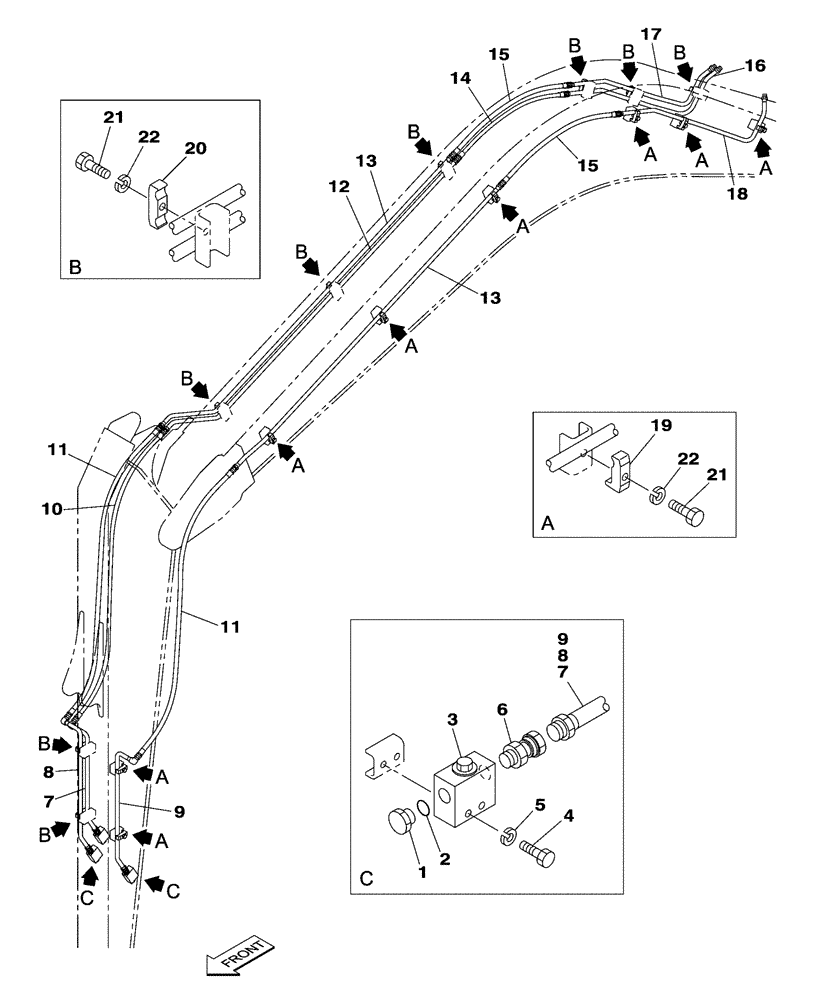

Запчасти Case CX160 (08-95) - HYD. LINE, SMALL FLOW - DIPPER 3.10M (08) - HYDRAULICS

1

159085A1

PLUG

3шт.

Consists Of Ref. Number 2

1шт.

2

154487A1

O-RING

1шт.

3

KHV0391

VALVE

3шт.

4

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

6шт.

5

892-11010

LOCK WASHER,M10

6шт.

6

KHJ1939

FITTING

3шт.

7

KNV1464

TUBE ASSY.

1шт.

8

KNV1465

TUBE ASSY.,16.1 mm ID x 21.7 mm OD

1шт.

9

KNV1466

TUBE ASSY.,16.1 mm ID x 21.7 mm OD

1шт.

10

KNV1467

HYDRAULIC HOSE,12.70 mm ID x 1750.00 mm

1шт.

11

KNV1468

HYDRAULIC HOSE,12.70 mm ID x 1750.00 mm

2шт.

12

KLV0433

TUBE ASSY.,16.1 mm ID x 21.7 mm OD

1шт.

13

KLV0434

TUBE ASSY.,16.1 mm ID x 21.7 mm OD

2шт.

14

KRV1998

HYDRAULIC HOSE,12.70 mm ID x 850.00 mm

1шт.

15

MPJ2251

HOSE ASSY.,12.70 mm ID x 900.00 mm

2шт.

16

KLV0435

TUBE ASSY.,16.1 mm ID x 21.7 mm OD

1шт.

17

KLV0436

TUBE ASSY.,16.1 mm ID x 21.7 mm OD

1шт.

18

KLV0437

TUBE ASSY.,16.1 mm ID x 21.7 mm OD

1шт.

19

166401A1

HALF-FLANGE

8шт.

20

166400A1

COLLAR

8шт.

21

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

16шт.

22

183-112VR

SPRING WASHER

16шт.
