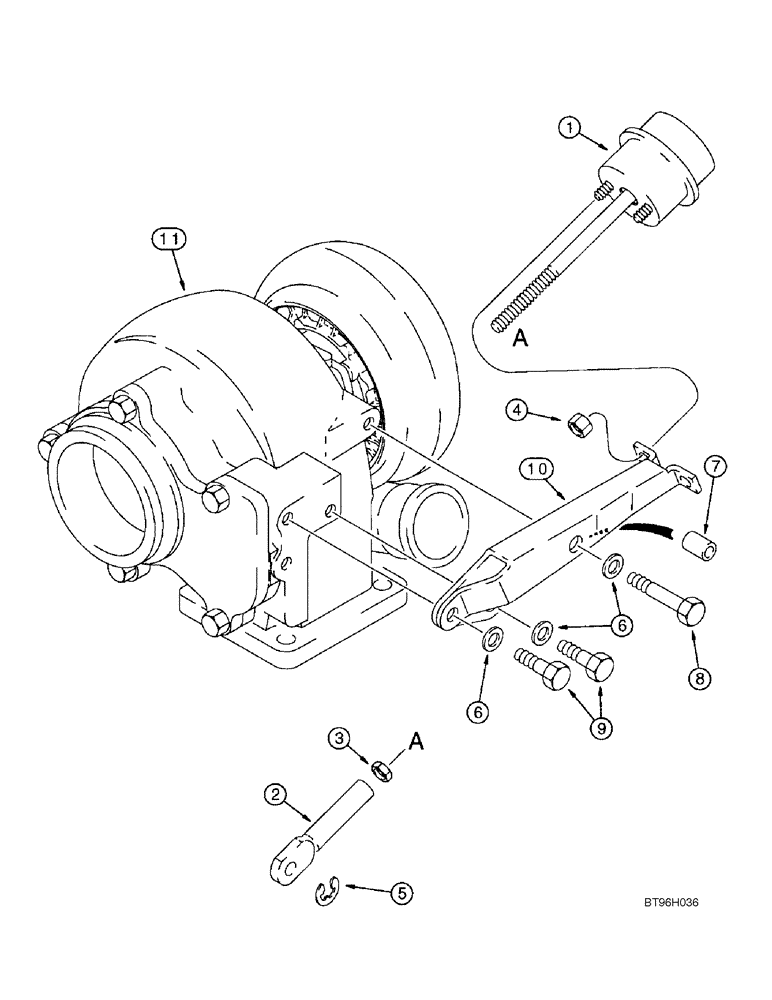

Запчасти Case CX160 (02-10) - WASTEGATE ACTUATOR (02) - ENGINE

.

4TA-390 Emissions Certified Engine

1шт.

J802906

TURBOCHARGER

Incl. 1 - 11, Also Includes Parts On Figure 02-09

1шт.

JR802906

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

JC592121

CORE-TURBOCHARGER

Return Part Number

1шт.

1

J594012

ACTUATOR

Replaces J537561

1шт.

2

J528177

LINK

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

4

J592050

NUT

Replaces J528204

2шт.

5

J528221

CIRCLIP

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

13.6 mm

1шт.

8

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

10

J535203

SUPPORT

1шт.

11

NSS

NOT SOLD SEPARAT

Housing

1шт.
