(08-80) - KLJ0606 PUMP ASSY, HYDRAULIC

Запчасти Case CX160 (08-80) - KLJ0606 PUMP ASSY, HYDRAULIC (08) - HYDRAULICS

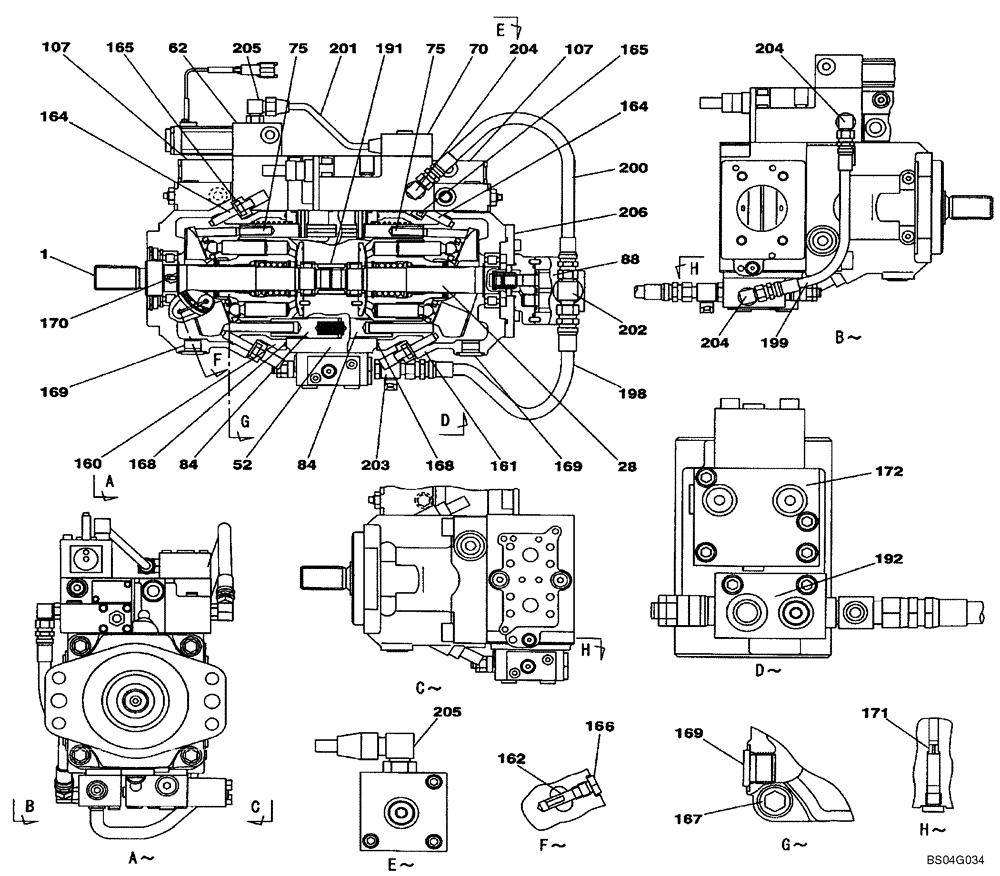

Схема запчастей Case CX160 - (08-80) - KLJ0606 PUMP ASSY, HYDRAULIC (08) - HYDRAULICS
201
204
171
198
164
160
204
168
170
70
165
84
164
84
205
107
161
1
75
172
166
204
169
107
199
167
88
75
205
162
206
202
168
169
62
52
192
203
191
200
28
169
165
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

KLJ0606

PUMP, HYDRAULIC

Includes All Parts on Figures 08-80 - 08-87

1шт.

87341972

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

87341975

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

LU00089

ROTOR

See Figure 08-81

1шт.

28

LU00090

ROTOR

See Figure 08-82

1шт.

52

LW00318

COVER

See Figure 08-83

1шт.

62

LS00134

CONTROL BLOCK

See Figure 08-84

1шт.

70

LW00319

COVER

See Figure 08-84

1шт.

75

LJ00761

PILOT VALVE

See Figure 08-85

2шт.

84

LJ00762

PILOT VALVE

See Figure 08-85

1шт.

88

LJ00766

PUMP

See Figure 08-85, Serial Range: -DAC0716270

1шт.

107

LJ01202

REGULATOR

See Figure 08-86

2шт.

160

LT00100

HOUSING

1шт.

161

LT00101

HOUSING

1шт.

162

LA00714

SPECIAL PIN

8шт.

164

LA00715

SCREW,Hex Skt

4шт.

165

829-1310

NUT,M10, Cl 10

4шт.

166

LK00309

PLUG

8шт.

167

863-16060

HEX SOC SCREW,M16 x 60mm, Cl 12.9

8шт.

168

LBQ5164

O-RING

2шт.

169

LK00118

PLUG

6шт.

170

LA00716

DOWEL

4шт.

171

164915A1

ORIFICE

2шт.

172

LJ00765

VALVE

See Figure 08-87

1шт.

191

LB00559

SPLINED COUPLING

1шт.

192

LJ00906

VALVE, PRESSURE RELI

EF See Figure 08-87

1шт.

198

LK00310

PLUG

Hose

1шт.

199

LK00311

HYDRAULIC HOSE

1шт.

200

LK00312

HYDRAULIC HOSE

1шт.

201

LR00595

HYD TUBE

1шт.

202

LK00313

TEE

1шт.

203

LK00314

TEE

1шт.

204

LLP0106

ELBOW

3шт.

205

LK00315

ELBOW

2шт.
