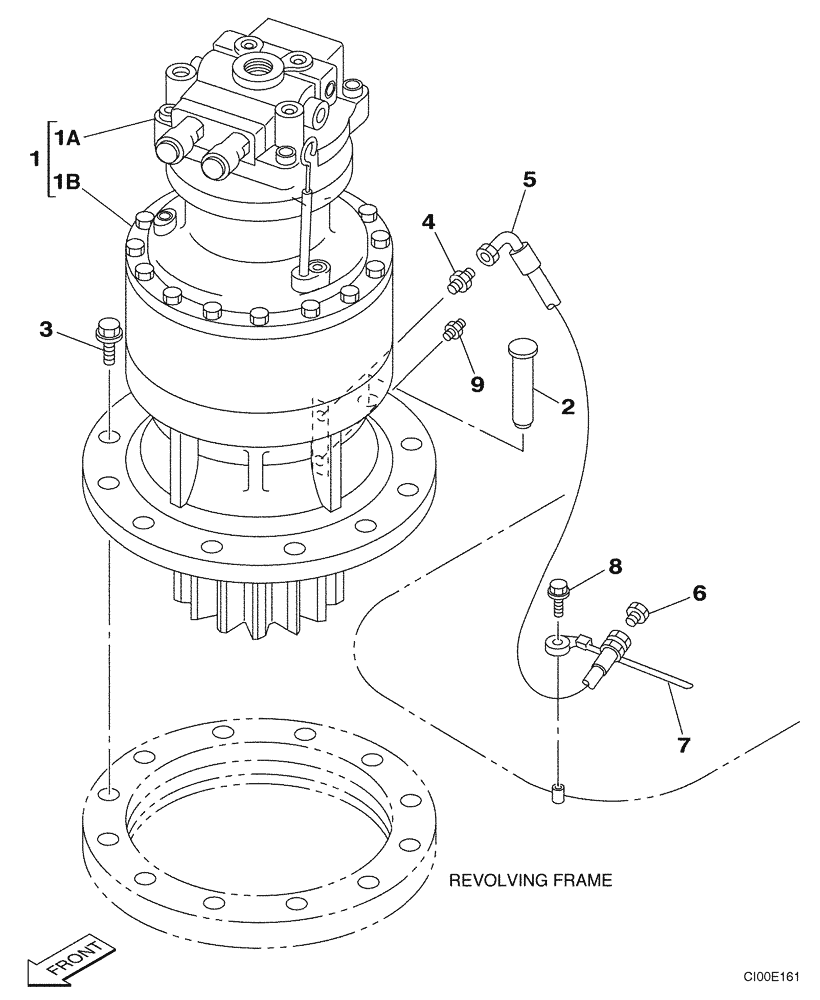

Запчасти Case CX160 (08-55) - MOUNTING - SWING MOTOR; P.I.N. DAC0716101 - DAC0716371 (08) - HYDRAULICS

1

KLC0020

MOTO-REDUCTION GEAR

Incl. 1A, 1B, Replaces 169325A1

1шт.

1a

LJ01138

MOTOR, HYDRAULIC

Replaces KRC0185; See Figure 08-56

1шт.

1b

KLC0011

REDUCER

See Figure 8-57

1шт.

2

158955A1

HEADED PIN

1шт.

3

827-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd

11шт.

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

11шт.

4

153596A1

ADAPTER

1шт.

5

KHJ1193

HYDRAULIC HOSE,9.52 mm ID x 450.00 mm

1шт.

6

KHP0501

PLUG

1шт.

7

KHR2583

CLAMP

1шт.

8

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

9

153630A1

LUBE NIPPLE

1шт.
