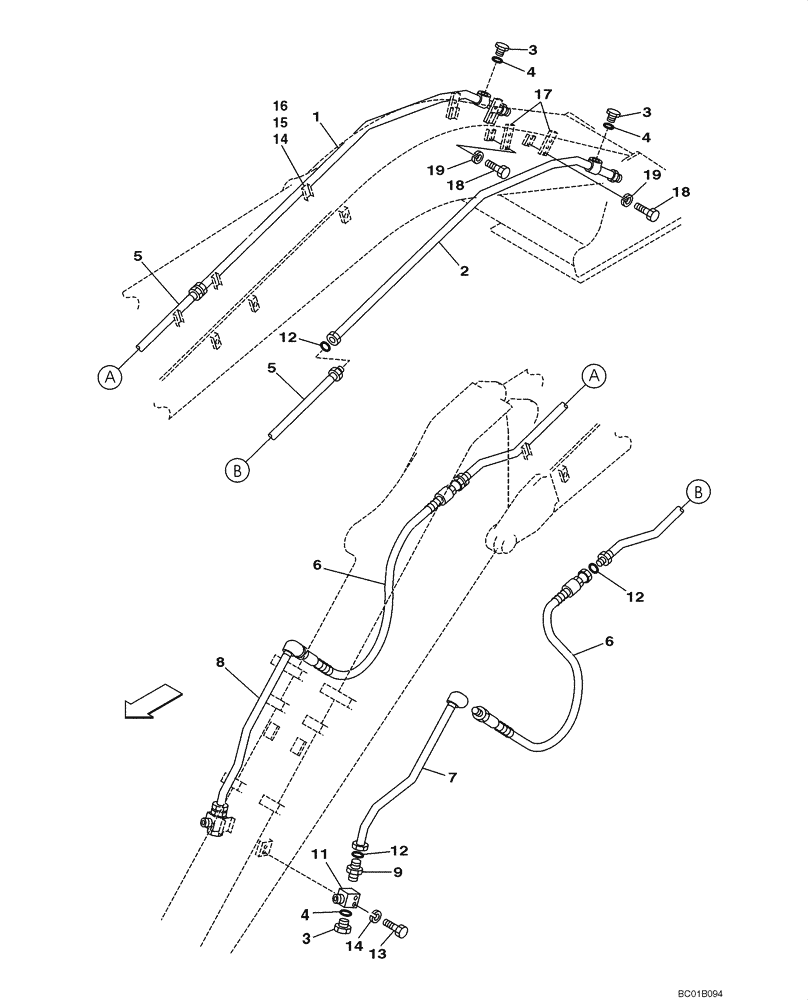

Запчасти Case CX160 (08-53) - HYDRAULICS, AUXILIARY ATTACHMENT - 3,10 M (10 FT 2 IN) ARM (08) - HYDRAULICS

Standard Arm

1шт.

1

KLV0410

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

2

KLV0411

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

3

152924A1

PLUG

Incl. 4

4шт.

4

154503A1

O-RING

1шт.

5

KLV0412

HYD TUBE

2шт.

6

KLV0416

HOSE ASSY.,19mm ID x 1800mm L

2шт.

7

KLV0414

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

8

KLV0415

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

9

KHV0325

ADAPTER

2шт.

11

KHV10680

VALVE SECTION

; Replaces KHV0453

2шт.

12

KHJ1360

O-RING,0.07" Thk x 0.739" ID

6шт.

13

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

14

892-11012

LOCK WASHER,M12

20шт.

15

151486A1

CLAMP BRACKET

16шт.

16

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

16шт.

17

163302A1

BAR

4шт.

18

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

8шт.

19

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

8шт.
