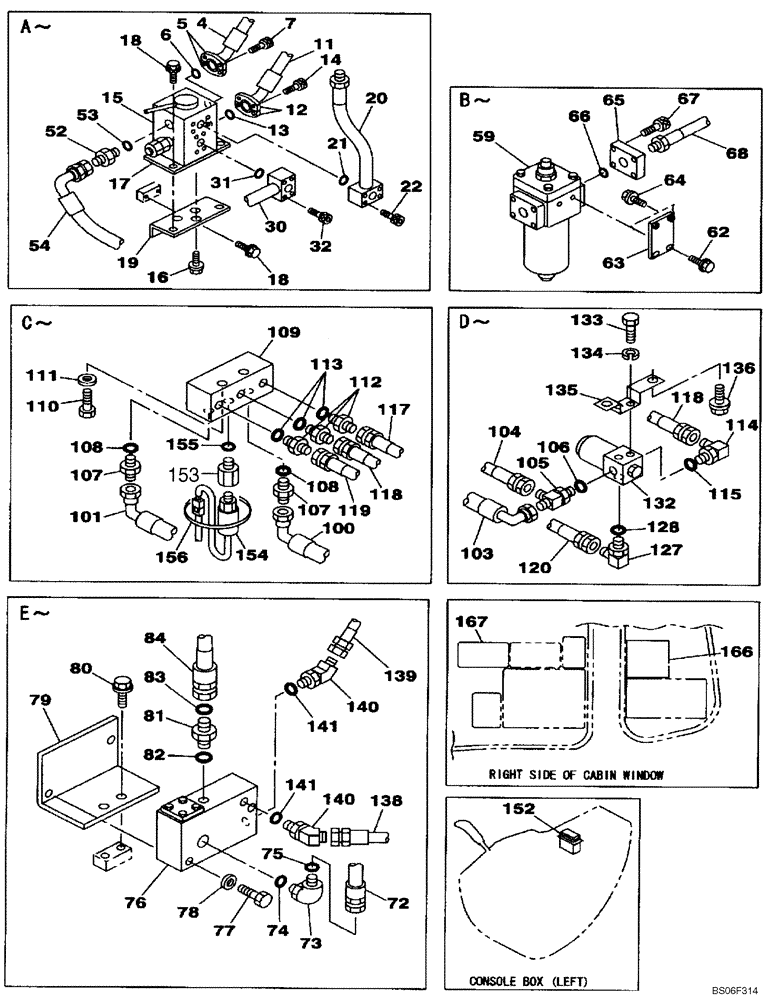

Запчасти Case CX160 (08-51C) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (DAC0716849 - ) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
4
KLJ10180
HOSE ASSY.,19.00 mm ID x 620.00 mm
See Figure 08-51A
1шт.
5
153458A1
FLANGE
2шт.
6
155210A1
O-RING
1шт.
7
862-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
4шт.
11
KLJ10190
HOSE ASSY.,19.00 mm ID x 750.00 mm
See Figure 08-51A
1шт.
12
153458A1
FLANGE
2шт.
13
155210A1
O-RING
1шт.
14
862-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
4шт.
15
KHJ1610
VALVE
Direction, See Figure 08-67A
1шт.
16
166052A1
BOLT
M10 x 25; 10.9
3шт.
17
KNJ2543
BRACKET
1шт.
18
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
19
KNJ2590
BRACKET
1шт.
20
KLJ10160
HYD TUBE,20.8 mm ID x 27.2 mm OD
1шт.
21
154528A1
O-RING
1шт.
22
862-10055
HEX SOC SCREW,M10 x 55mm, Cl 12.9
4шт.
30
KLJ10170
HYD TUBE,20.8 mm ID x 27.2 mm OD
1шт.
31
154528A1
O-RING
1шт.
32
862-10055
HEX SOC SCREW,M10 x 55mm, Cl 12.9
4шт.
52
151654A1
HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT
Incl. 53
1шт.
54
KAJ3791
HYDRAULIC HOSE,19.00 mm ID x 430.00 mm
See Figure 08-51A
1шт.
59
163278A1
FILTER
See Figure 08-79
1шт.
62
166351A1
BOLT,Sems, M10 x 20mm
2шт.
63
KNJ2598
BRACKET
1шт.
64
166351A1
BOLT,Sems, M10 x 20mm
2шт.
65
163275A1
FLANGE
1шт.
66
154569A1
O-RING
1шт.
67
862-8035
HEX SOC SCREW,M8 x 35mm, Cl 12.9
4шт.
68
KRJ6161
HYDRAULIC HOSE,19.00 mm ID x 420.00 mm
See Figure 08-51A
1шт.
72
KLJ0581
HOSE ASSY.,15.90 mm ID x 600.00 mm
See Figure 08-51B
1шт.
73
KHJ1804
ELBOW
Incl. 74
1шт.
75
KHJ1360
O-RING,0.07" Thk x 0.739" ID
1шт.
76
KHJ1473
VALVE
See Figure 08-69
1шт.
78
150409A1
WASHER
2шт.
79
KNJ2604
BRACKET
1шт.
80
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
81
KHJ1348
ADAPTER
Incl. 82
1шт.
83
KHJ1360
O-RING,0.07" Thk x 0.739" ID
1шт.
84
KNJ2601
HYDRAULIC HOSE,15.90 mm ID x 880.00 mm
See Figure 08-51A
1шт.
100
159009A1
HOSE ASSY.
2600 mm (102-3/8 in); See Figure 08-51B
1шт.
101
162193A1
HOSE ASSY.
2900 mm (114-3/16 in); See Figure 08-51B
1шт.
103
167352A1
HOSE,2500.00 mm
See Figure 08-51B
1шт.
104
159235A1
HYDRAULIC HOSE
See Figure 08-51B, 850 mm (KRJ3572)
1шт.
105
159497A1
TEE
Incl. 106
1шт.
106
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
107
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 108
2шт.
108
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
109
KHJ17100
VALVE PRESSURE RELIE
; Replaces KHJ1655
1шт.
110
827-8055
BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9
2шт.
111
153081A1
WASHER
2шт.
112
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 113
3шт.
113
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
114
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 115
1шт.
115
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
117
158130A1
HOSE,6.3mm ID x 1350mm L
See Figure 08-51B
1шт.
118
161272A1
HOSE
See Figure 08-51B
1шт.
119
157839A1
HOSE,6.3 mm ID x 3900.00 mm
See Figure 08-51B
1шт.
120
157853A1
HOSE,6.3 mm ID x 2050.00 mm
See Figure 08-51B
1шт.
127
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 128
1шт.
128
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
132
162538A1
VALVE
See Figures 08-51B, 08-64
1шт.
133
627-6012
BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd
2шт.
134
183-106VR
SPRING WASHER
2шт.
135
KRJ5751
BRACKET
1шт.
136
166346A1
BOLT,Sems, M10
2шт.
138
152514A1
HOSE,63mm ID x 1000mm L
See Figure 08-51B
1шт.
139
153398A1
HOSE ASSY.
See Figure 08-51B
1шт.
140
150933A1
ELBOW
Incl. 141
2шт.
141
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
152
KHR2948
SWITCH
1шт.
153
KHJ11460
ADAPTER
1шт.
154
KHR10790
PRESSURE SWITCH
1шт.
155
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
156
150067A1
MOUNTING CLIP
1шт.
157
KNP0532
DECAL
Right Hand Side of Cab
1шт.
158
KHP1758
DECAL
Right Hand Side of Cab
1шт.
Выбрано товаров: 80
