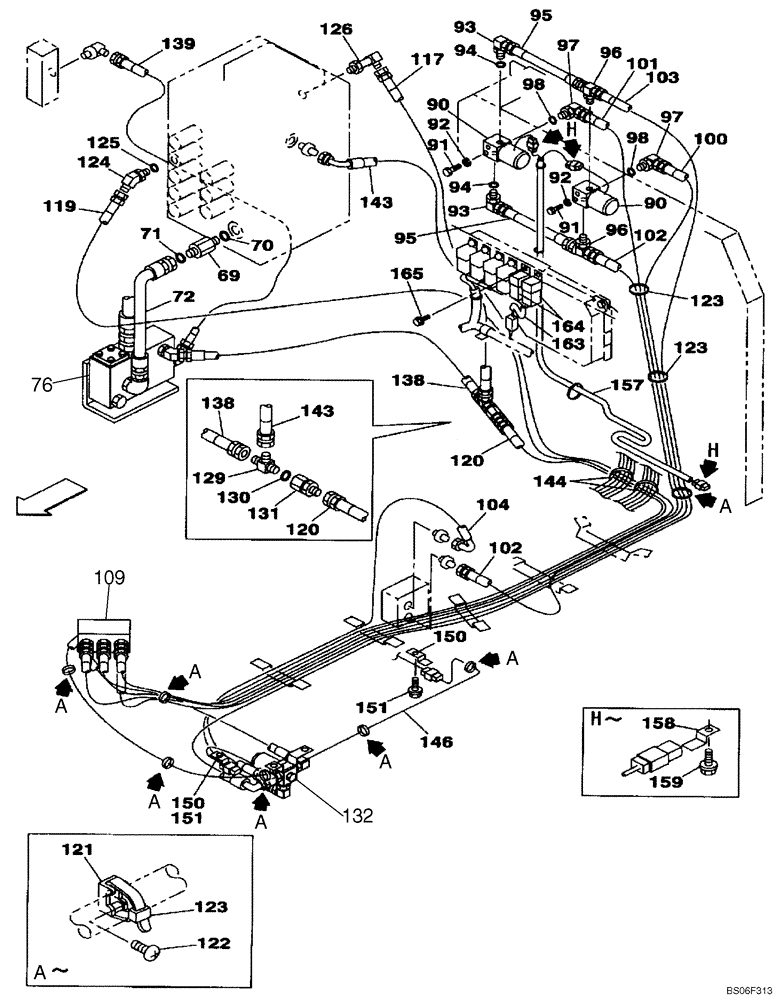

Запчасти Case CX160 (08-51B) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (DAC0716849 - ) (08) - HYDRAULICS

69

KHJ1500

ADAPTER

Incl. 70

1шт.

70

154487A1

O-RING

1шт.

71

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

72

KLJ0581

HOSE ASSY.,15.90 mm ID x 600.00 mm

See Figure 08-51C

1шт.

76

KHJ1473

VALVE

See Figures 08-51C, 08-69

1шт.

90

162538A1

VALVE

See Figures 08-51C, 08-64

2шт.

91

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

92

183-106VR

SPRING WASHER

4шт.

93

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 94

2шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

95

MPJ2264

HOSE ASSY.,6.30 mm ID x 230.00 mm

2шт.

96

167321A1

TEE

2шт.

97

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 98

2шт.

98

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

100

159009A1

HOSE ASSY.

2600 mm (102-3/8 in); See Figure 08-51C

1шт.

101

162193A1

HOSE ASSY.

2900 mm (114-3/16 in); See Figure 08-51C

1шт.

102

153484A1

HOSE ASSY.

1700 mm (66-15/16 in)

1шт.

103

167352A1

HOSE,2500.00 mm

See Figure 08-51C

1шт.

104

159235A1

HYDRAULIC HOSE

See Figure 08-51C, 850 mm (KRJ3572)

1шт.

109

KHJ17100

VALVE PRESSURE RELIE

See Figure 08-51C; Replaces KHJ1655

1шт.

117

158130A1

HOSE,6.3mm ID x 1350mm L

See Figure 08-51C

1шт.

119

157839A1

HOSE,6.3 mm ID x 3900.00 mm

See Figure 08-51C

1шт.

120

157853A1

HOSE,6.3 mm ID x 2050.00 mm

See Figure 08-51C

1шт.

121

150860A1

COLLAR

8шт.

122

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

8шт.

123

150496A1

MOUNTING CLIP

250 mm (10 in)

12шт.

124

150933A1

ELBOW

Incl. 125

1шт.

125

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

126

KHJ1178

ELBOW

1шт.

129

159497A1

TEE

Incl. 130

1шт.

130

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

131

167853A1

ADAPTER

1шт.

132

162538A1

VALVE

See Figures 08-51C, 08-64

1шт.

138

152514A1

HOSE,63mm ID x 1000mm L

See Figure 08-51C

1шт.

139

153398A1

HOSE ASSY.

1400 mm (55-1/8 in); See Figure 08-51C

1шт.

143

162648A1

HOSE

1шт.

144

150071A1

MOUNTING CLIP

2шт.

146

KHR3351

HARNESS

1шт.

150

165405A1

CLIP

2шт.

151

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.

157

KHR3329

HARNESS

1шт.

158

165405A1

CLIP

3шт.

159

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

3шт.

163

KNR0737

WIRE HARNESS

1шт.

164

159919A1

RELAY

2шт.

165

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.
