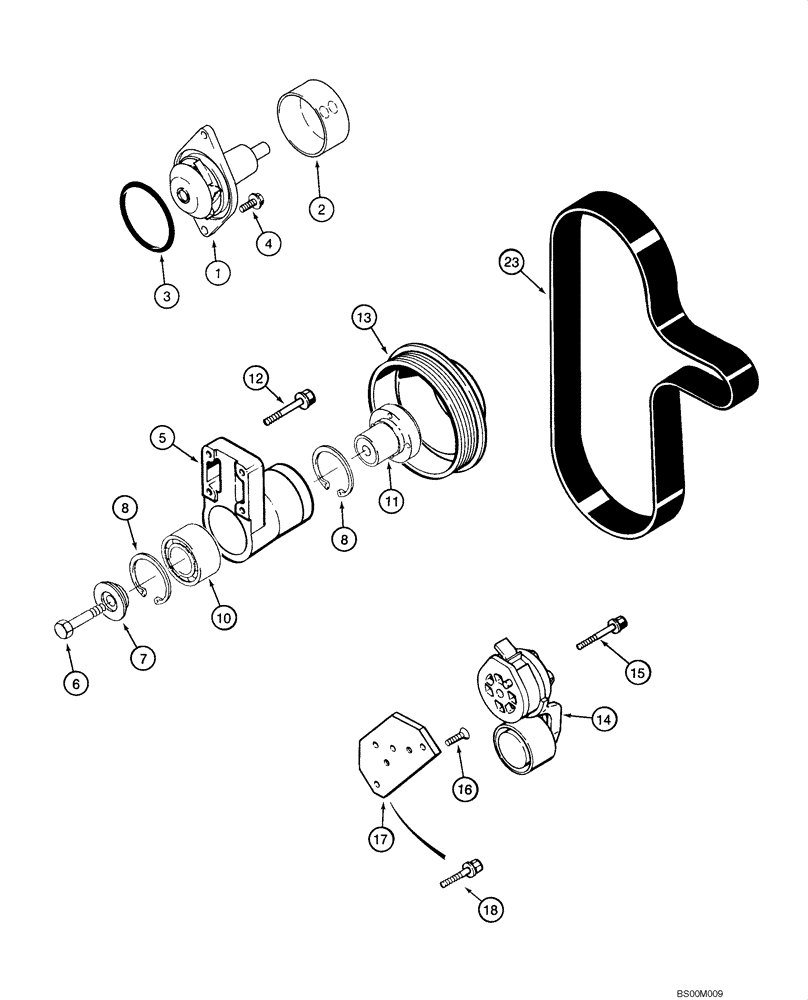

Запчасти Case CX160 (02-05) - WATER PUMP SYSTEM (02) - ENGINE

*

4TA-390 Emissions Certified Engine

1шт.

J286277

PUMP, WATER

Incl. 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

CX160

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump Assy

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

Replaces 238-5341

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J913433

BRACKET

Incl. 6 - 11

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

7

J923044

RETAINER

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

1шт.

12

854-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

4шт.

13

J914462

PULLEY,163mm OD

1шт.

14

J936203

BELT TENSIONER

1шт.

15

844-10070

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

17

J925207

SUPPORT

1шт.

18

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

23

J911557

V-BELT,27.92mm W x 1422.4mm L, 8 Ribs

1шт.
