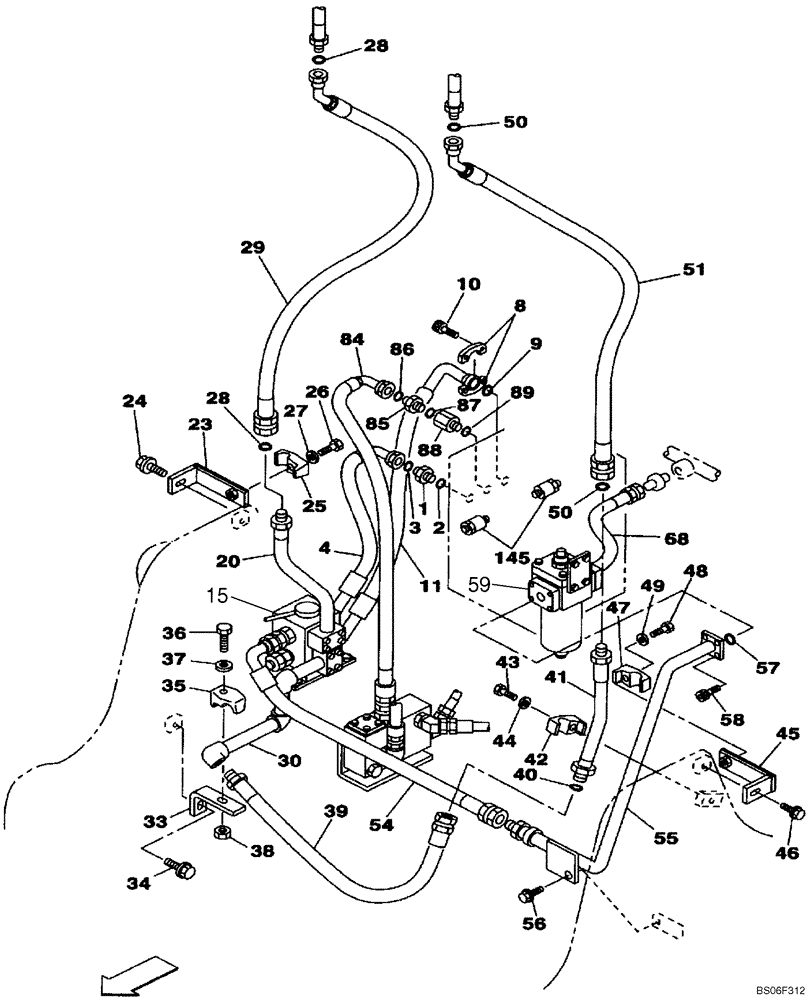

Запчасти Case CX160 (08-51A) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (DAC0716849 - ) (08) - HYDRAULICS

1

KHJ1348

ADAPTER

Incl. 2

1шт.

2

154503A1

O-RING

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

4

KLJ10180

HOSE ASSY.,19.00 mm ID x 620.00 mm

See Figure 08-51C

1шт.

8

153458A1

FLANGE

2шт.

9

155210A1

O-RING

1шт.

10

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

11

KLJ10190

HOSE ASSY.,19.00 mm ID x 750.00 mm

See Figure 08-51C

1шт.

15

KHJ1610

VALVE

Direction; See Figure 08-51C & 08-67A

1шт.

20

KLJ10160

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

23

KLJ0615

BRACKET

1шт.

24

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

25

151486A1

CLAMP BRACKET

1шт.

26

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

27

150811A1

WASHER

M12

1шт.

28

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

29

KLJ0611

HOSE ASSY.

1шт.

30

KLJ10170

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

33

KLJ10100

1шт.

34

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

35

151486A1

CLAMP BRACKET

1шт.

36

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

37

150811A1

WASHER

2шт.

38

829-1412

NUT,M12, Cl 10.9

1шт.

39

KLJ10200

HOSE ASSY.,19.00 mm ID x 780.00 mm

1шт.

40

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

41

KLJ0614

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

42

151486A1

CLAMP BRACKET

1шт.

43

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

1шт.

44

150811A1

WASHER

M12

1шт.

45

KLJ0615

BRACKET

1шт.

46

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

47

151486A1

CLAMP BRACKET

1шт.

48

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

49

150811A1

WASHER

M12

1шт.

50

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

51

KLJ0611

HOSE ASSY.

1шт.

54

KAJ3791

HYDRAULIC HOSE,19.00 mm ID x 430.00 mm

See Figure 08-51C

1шт.

55

KLJ0617

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

56

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

57

154569A1

O-RING

1шт.

58

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

4шт.

59

163278A1

FILTER

See Figure 08-79

1шт.

68

KRJ6161

HYDRAULIC HOSE,19.00 mm ID x 420.00 mm

See Figure 08-51C

1шт.

84

KNJ2601

HYDRAULIC HOSE,15.90 mm ID x 880.00 mm

See Figure 08-51C

1шт.

85

KHJ1348

ADAPTER

Incl. 86

1шт.

86

154503A1

O-RING

1шт.

87

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

88

KHJ1504

CHECK VALVE

Incl. 89

1шт.

89

154495A1

O-RING

1шт.

145

KNJ2732

VALVE, PRESSURE RELI

EF

2шт.
