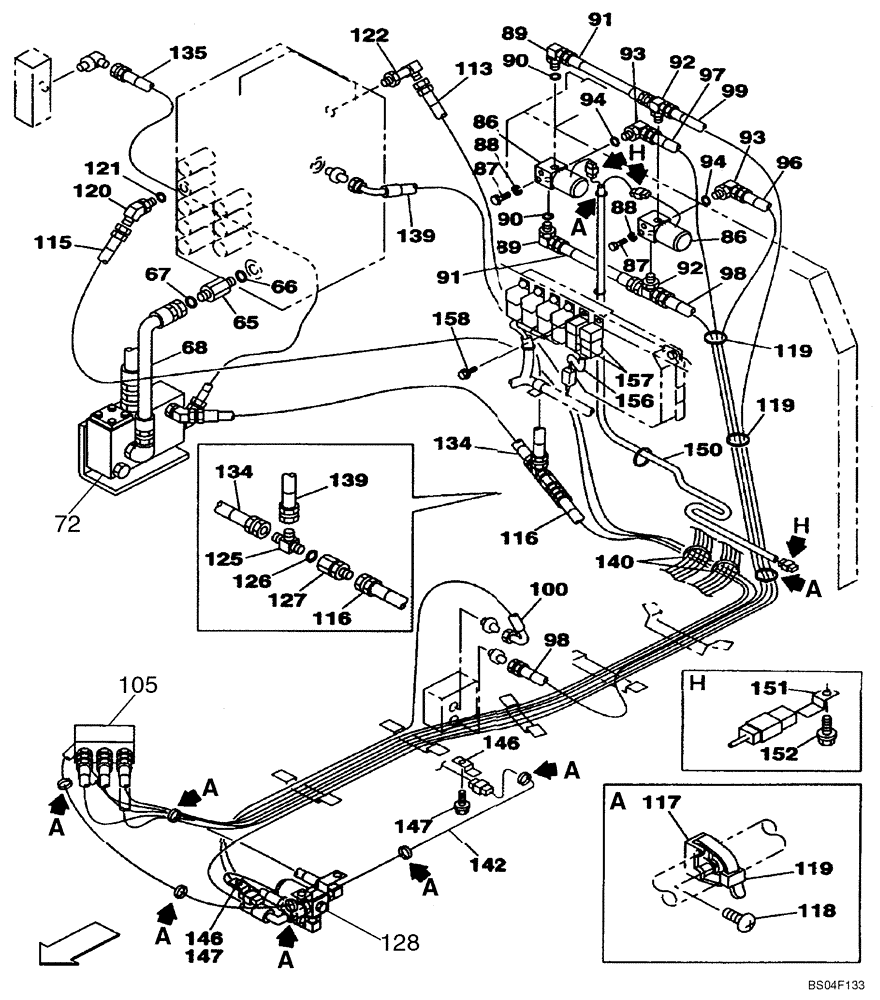

Запчасти Case CX160 (08-50) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (DAC0716101 - DAC0716848) (08) - HYDRAULICS

65

KHJ1500

ADAPTER

Incl. 66

1шт.

66

154487A1

O-RING

1шт.

67

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

68

KLJ0581

HOSE ASSY.,15.90 mm ID x 600.00 mm

See Figure 08-51

1шт.

72

KHJ1473

VALVE

See Figures 08-51, 08-69

1шт.

86

162538A1

VALVE

See Figures 08-51, 08-64

2шт.

87

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

88

892-11006

LOCK WASHER,M6

4шт.

89

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 90

2шт.

90

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

91

MPJ2264

HOSE ASSY.,6.30 mm ID x 230.00 mm

2шт.

92

167321A1

TEE

2шт.

93

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 94

2шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

96

159009A1

HOSE ASSY.

2600 mm (102-3/8 in); See Figure 08-51

1шт.

97

162193A1

HOSE ASSY.

2900 mm (114-3/16 in); See Figure 08-51

1шт.

98

153484A1

HOSE ASSY.

1700 mm (66-15/16 in)

1шт.

99

167352A1

HOSE,2500.00 mm

See Figure 08-51

1шт.

100

159235A1

HYDRAULIC HOSE

See Figure 08-51, 850 mm (KRJ3572)

1шт.

105

KHJ17100

VALVE PRESSURE RELIE

See Figure 08-51; Replaces KHJ1655

1шт.

113

158130A1

HOSE,6.3mm ID x 1350mm L

See Figure 08-51

1шт.

115

157839A1

HOSE,6.3 mm ID x 3900.00 mm

See Figure 08-51

1шт.

116

157853A1

HOSE,6.3 mm ID x 2050.00 mm

See Figure 08-51

1шт.

117

150860A1

COLLAR

8шт.

118

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

8шт.

119

150496A1

MOUNTING CLIP

250 mm (10 in)

12шт.

120

150933A1

ELBOW

Incl. 121

1шт.

121

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

122

KHJ1178

ELBOW

1шт.

125

159497A1

TEE

Incl. 126

1шт.

126

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

127

167853A1

ADAPTER

1шт.

128

162538A1

VALVE

See Figures 08-51, 08-64

1шт.

134

152514A1

HOSE,63mm ID x 1000mm L

See Figure 08-51

1шт.

135

153398A1

HOSE ASSY.

1400 mm (55-1/8 in); See Figure 08-51

1шт.

139

162648A1

HOSE

1шт.

140

150071A1

MOUNTING CLIP

2шт.

142

KHR3351

HARNESS

1шт.

146

165405A1

CLIP

2шт.

147

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.

150

KHR3329

HARNESS

1шт.

152

165405A1

CLIP

3шт.

153

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

3шт.

156

KNR0737

WIRE HARNESS

1шт.

157

159919A1

RELAY

2шт.

158

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

159

KNP0532

DECAL

Not Illustrated

1шт.

160

KHP1758

DECAL

Not Illustrated

1шт.
