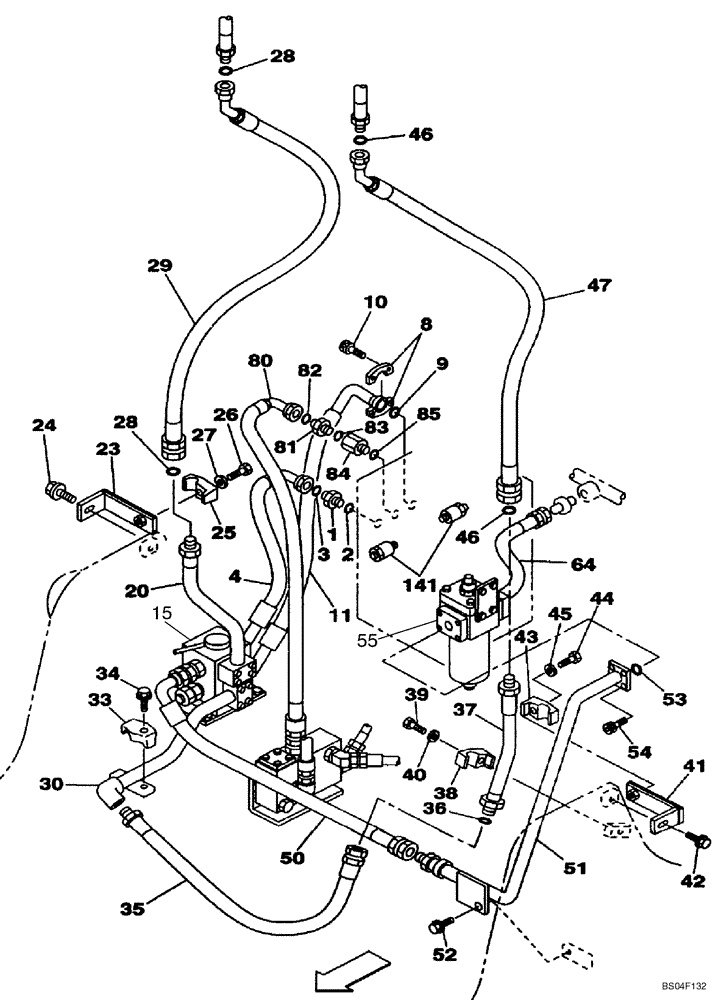

Запчасти Case CX160 (08-49) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (DAC0716101 - DAC0716848) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
KHJ1348
ADAPTER
Incl. 2
1шт.
3
KHJ1360
O-RING,0.07" Thk x 0.739" ID
1шт.
4
KLJ0623
HOSE ASSY.
See Figure 08-51
1шт.
8
153458A1
FLANGE
2шт.
9
155210A1
O-RING
1шт.
10
862-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
4шт.
11
KLJ0609
HOSE ASSY.
See Figure 08-51
1шт.
15
KHJ1610
VALVE
Direction; See Figure 08-51 & 08-67A
1шт.
20
KLJ0610
HYD TUBE
1шт.
23
KLJ0615
BRACKET
1шт.
24
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
1шт.
25
151486A1
CLAMP BRACKET
1шт.
26
827-12065
BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9
1шт.
27
150811A1
WASHER
M12
1шт.
28
KHJ1360
O-RING,0.07" Thk x 0.739" ID
2шт.
29
KLJ0611
HOSE ASSY.
1шт.
30
KLJ0612
HYD TUBE
1шт.
33
151486A1
CLAMP BRACKET
1шт.
34
167183A1
BOLT,Sems, M12 x 60mm, Cl 10.9
M12 x 60; 10.9
1шт.
35
KLJ0613
HOSE ASSY.
1шт.
36
KHJ1360
O-RING,0.07" Thk x 0.739" ID
1шт.
37
KLJ0614
HYD TUBE,20.8 mm ID x 27.2 mm OD
1шт.
38
151486A1
CLAMP BRACKET
1шт.
40
150811A1
WASHER
M12
1шт.
41
KLJ0615
BRACKET
1шт.
42
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
1шт.
43
151486A1
CLAMP BRACKET
1шт.
44
827-12065
BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9
1шт.
45
150811A1
WASHER
M12
1шт.
46
KHJ1360
O-RING,0.07" Thk x 0.739" ID
2шт.
47
KLJ0611
HOSE ASSY.
1шт.
50
KLJ0616
HOSE ASSY.
See Figure 08-51
1шт.
51
KLJ0617
HYD TUBE,20.8 mm ID x 27.2 mm OD
1шт.
52
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
1шт.
53
154569A1
O-RING
1шт.
54
862-8035
HEX SOC SCREW,M8 x 35mm, Cl 12.9
4шт.
55
163278A1
FILTER
See Figure 08-79
1шт.
64
KRJ6161
HYDRAULIC HOSE,19.00 mm ID x 420.00 mm
See Figure 08-51
1шт.
80
KNJ2601
HYDRAULIC HOSE,15.90 mm ID x 880.00 mm
See Figure 08-51
1шт.
81
KHJ1348
ADAPTER
Incl. 82
1шт.
83
KHJ1360
O-RING,0.07" Thk x 0.739" ID
1шт.
84
KHJ1504
CHECK VALVE
Incl. 85
1шт.
85
154495A1
O-RING
1шт.
141
KNJ2732
VALVE, PRESSURE RELI
EF
2шт.
Выбрано товаров: 47
