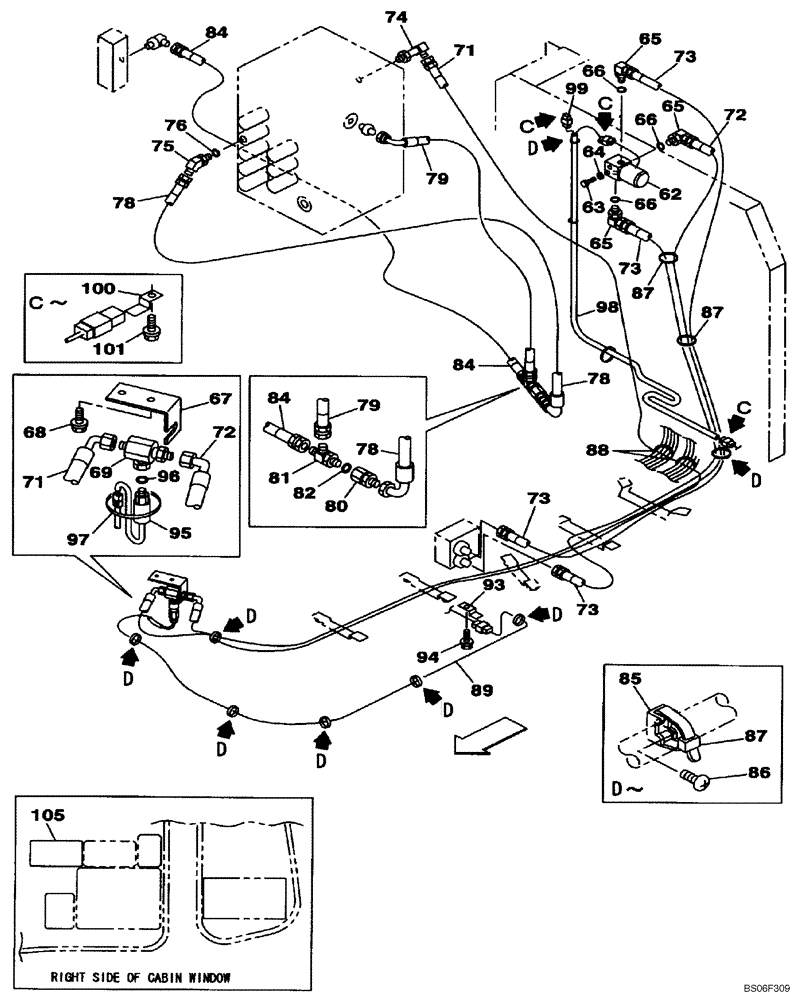

Запчасти Case CX160 (08-48B) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, TRIGGER ACTIVATED (DAC0716849 - ) (08) - HYDRAULICS

62

162538A1

VALVE

Solenoid, See Figure 08-64

1шт.

63

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

64

183-106VR

SPRING WASHER

2шт.

65

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 66

3шт.

66

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

67

KHJ2127

BRACKET

1шт.

68

166345A1

BOLT

2шт.

69

KHJ11470

ADAPTER

1шт.

71

161077A1

HOSE ASSY.

3400 mm (133-7/8 in)

1шт.

72

159009A1

HOSE ASSY.

1шт.

73

153484A1

HOSE ASSY.

2шт.

74

KHJ1178

ELBOW

1шт.

75

150933A1

ELBOW

Incl. 76

1шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

78

KHJ1221

HYDRAULIC HOSE

1шт.

79

162648A1

HOSE

1шт.

80

167853A1

ADAPTER

1шт.

81

159497A1

TEE

Incl. 82

1шт.

82

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

84

153398A1

HOSE ASSY.

1шт.

85

150860A1

COLLAR

8шт.

86

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

8шт.

87

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

88

150071A1

MOUNTING CLIP

2шт.

89

KHR3350

HARNESS

1шт.

93

165405A1

CLIP

1шт.

94

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

95

KHR10790

PRESSURE SWITCH

1шт.

96

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

97

150067A1

MOUNTING CLIP

1шт.

98

KHR3329

HARNESS

1шт.

99

168694A1

MULTIPOLE CONNECTOR

1шт.

100

165405A1

CLIP

3шт.

101

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

3шт.

102

KHP1758

DECAL

Not Illustrated

1шт.
