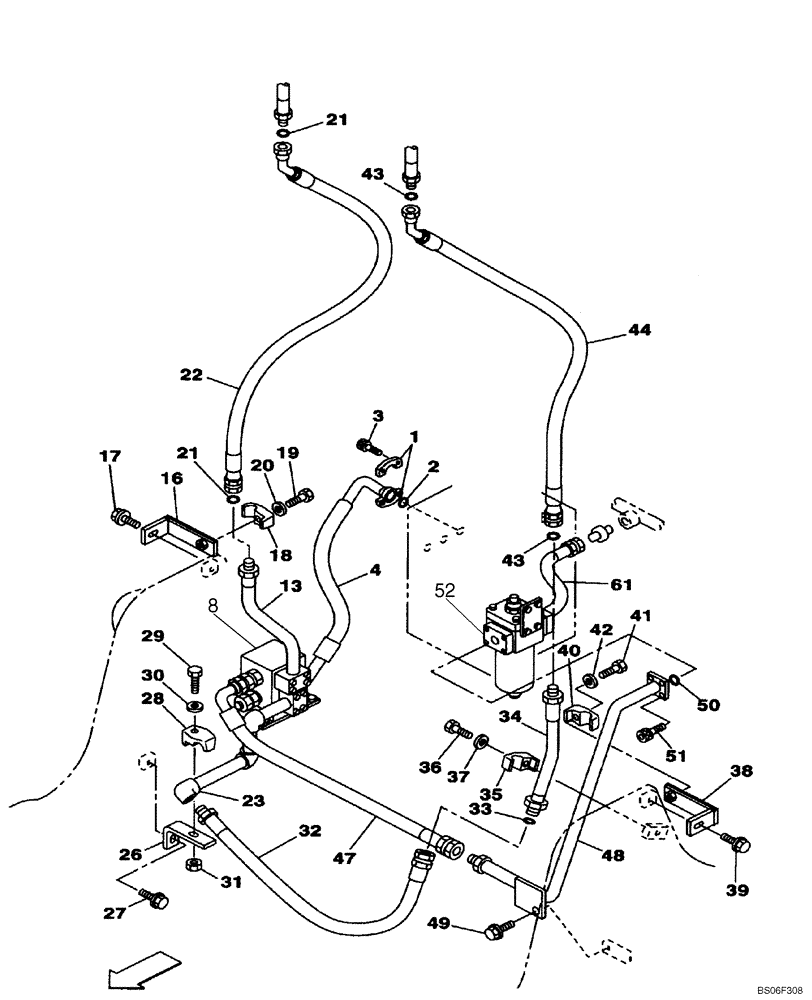

Запчасти Case CX160 (08-48A) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, TRIGGER ACTIVATED (DAC0716849 - ) (08) - HYDRAULICS

1

153458A1

FLANGE

Split

2шт.

2

155210A1

O-RING

1шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

4

KLJ10190

HOSE ASSY.,19.00 mm ID x 750.00 mm

1шт.

8

KHJ1842

MANIFOLD

See Figure 08-92

1шт.

13

KLJ10160

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

16

KLJ0615

BRACKET

1шт.

17

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

18

151486A1

CLAMP BRACKET

1шт.

19

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

20

150811A1

WASHER

M12

1шт.

21

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

22

KLJ0611

HOSE ASSY.

1шт.

23

KLJ10170

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

26

KLJ10100

1шт.

27

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

28

151486A1

CLAMP BRACKET

1шт.

29

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

30

150811A1

WASHER

2шт.

31

829-1412

NUT,M12, Cl 10.9

1шт.

32

KLJ10200

HOSE ASSY.,19.00 mm ID x 780.00 mm

1шт.

33

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

34

KLJ0614

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

35

151486A1

CLAMP BRACKET

1шт.

36

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

1шт.

37

150811A1

WASHER

M12

1шт.

38

KLJ0615

BRACKET

1шт.

39

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

40

151486A1

CLAMP BRACKET

1шт.

41

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

42

150811A1

WASHER

M12

1шт.

43

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

44

KLJ0611

HOSE ASSY.

1шт.

47

KAJ3791

HYDRAULIC HOSE,19.00 mm ID x 430.00 mm

1шт.

48

KLJ0617

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

49

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

50

154569A1

O-RING

1шт.

51

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

4шт.

52

163278A1

FILTER

See Figure 08-79

1шт.

61

KRJ6161

HYDRAULIC HOSE,19.00 mm ID x 420.00 mm

1шт.
