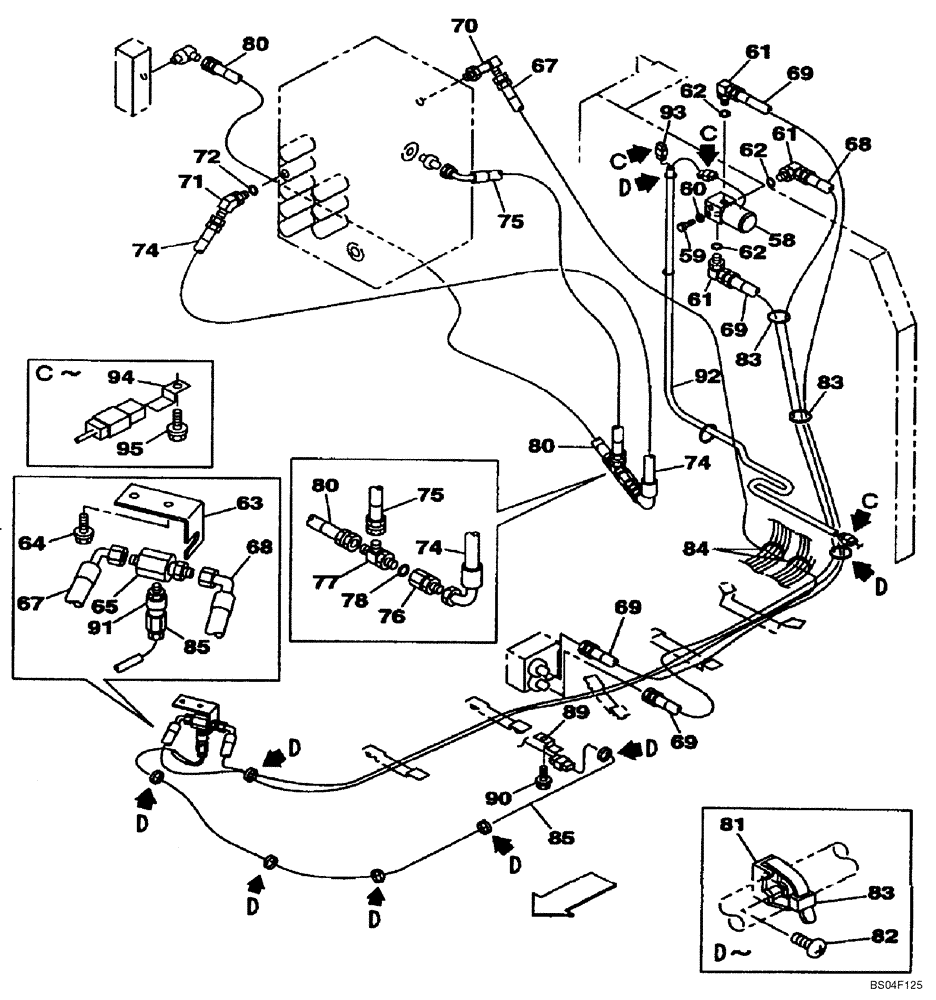

Запчасти Case CX160 (08-47) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, TRIGGER ACTIVATED (DAC0716101 - DAC0716848) (08) - HYDRAULICS

58

162538A1

VALVE

Solenoid, See Figure 08-64

1шт.

59

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

60

892-11006

LOCK WASHER,M6

2шт.

61

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 62

3шт.

62

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

63

KHJ2127

BRACKET

1шт.

64

166345A1

BOLT

2шт.

65

KHJ11470

ADAPTER

Replaces 167852A1

1шт.

67

161077A1

HOSE ASSY.

3400 mm (133-7/8 in)

1шт.

68

159009A1

HOSE ASSY.

1шт.

69

153484A1

HOSE ASSY.

2шт.

70

KHJ1178

ELBOW

1шт.

71

150933A1

ELBOW

Incl. 72

1шт.

72

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

74

KHJ1221

HYDRAULIC HOSE

1шт.

75

162648A1

HOSE

1шт.

76

167853A1

ADAPTER

1шт.

77

159497A1

TEE

Incl. 78

1шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

80

153398A1

HOSE ASSY.

1шт.

81

150860A1

COLLAR

8шт.

82

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

8шт.

83

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

84

150071A1

MOUNTING CLIP

2шт.

85

KHR3350

HARNESS

1шт.

89

165405A1

CLIP

1шт.

90

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

91

KHR10790

PRESSURE SWITCH

Replaces 159599A1

1шт.

92

KHR3329

HARNESS

1шт.

93

168694A1

MULTIPOLE CONNECTOR

1шт.

94

165405A1

CLIP

3шт.

95

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

3шт.

99

KHP1758

DECAL

Not Illustrated

1шт.

100

150067A1

MOUNTING CLIP

Not Illustrated

1шт.
