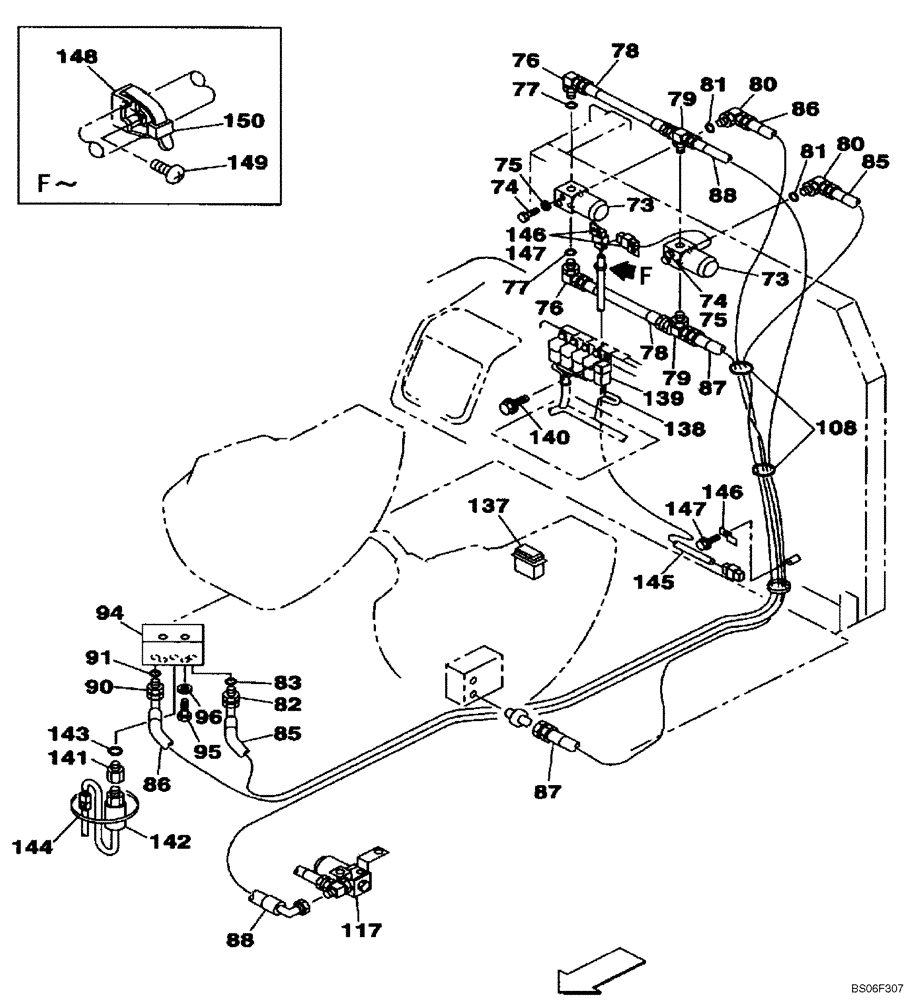

Запчасти Case CX160 (08-45C) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, TRIGGER ACTIVATED (DAC0716849 - ) (08) - HYDRAULICS

73

162538A1

VALVE

See Figure 08-64

2шт.

74

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

75

183-106VR

SPRING WASHER

4шт.

76

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 77

2шт.

77

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

78

MPJ2264

HOSE ASSY.,6.30 mm ID x 230.00 mm

2шт.

79

167321A1

TEE

2шт.

80

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 81

2шт.

81

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

82

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 83

1шт.

83

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

85

159009A1

HOSE ASSY.

1шт.

86

162193A1

HOSE ASSY.

1шт.

87

153484A1

HOSE ASSY.

1700 mm (67 in)

1шт.

88

167352A1

HOSE,2500.00 mm

See Figure 08-45B

1шт.

89

159235A1

HYDRAULIC HOSE

See Figure 08-45B, 850 mm (KRJ3572)

1шт.

90

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 91

1шт.

91

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

94

KHJ17100

VALVE PRESSURE RELIE

; Replaces KHJ1655

1шт.

95

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

96

153081A1

WASHER

2шт.

108

150496A1

MOUNTING CLIP

2шт.

117

162538A1

VALVE

See Figure 08-64

1шт.

137

KHR3562

SWITCH

Console Box, Left Hand Side

1шт.

138

KLR0153

HARNESS

1шт.

139

159919A1

RELAY

1шт.

140

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

141

KHJ11460

ADAPTER

1шт.

142

KHR10790

PRESSURE SWITCH

1шт.

143

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

144

150067A1

MOUNTING CLIP

1шт.

145

KHR3329

HARNESS

1шт.

146

165405A1

CLIP

3шт.

147

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

3шт.

148

150860A1

COLLAR

1шт.

149

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

150

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.
