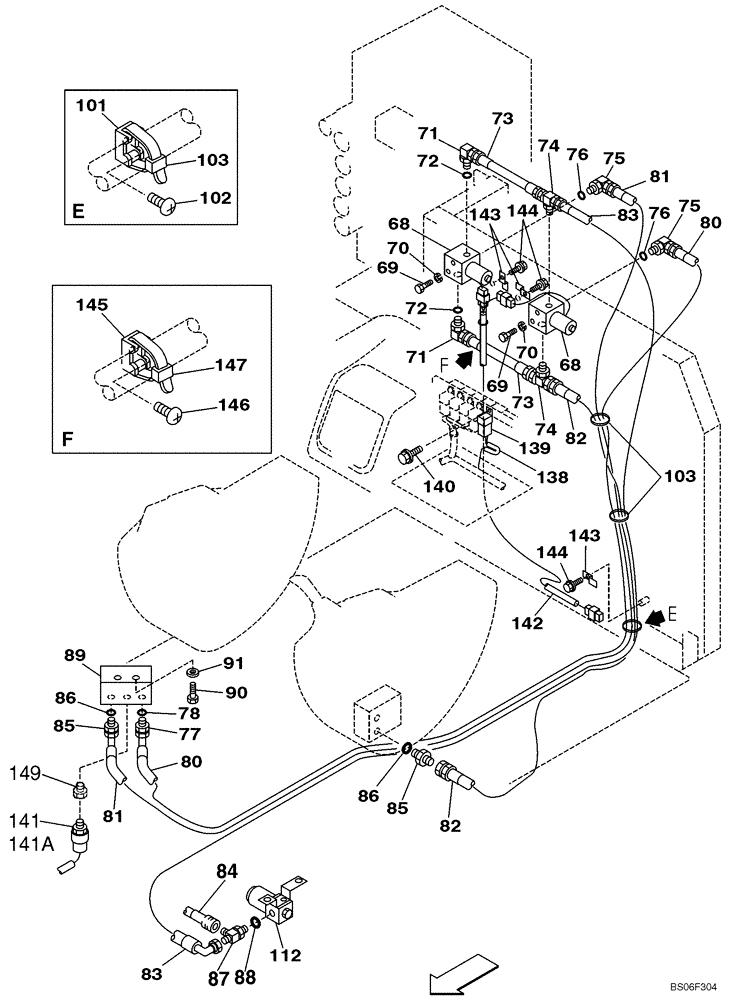

Запчасти Case CX160 (08-45) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, TRIGGER ACTIVATED (DAC0716101 - DAC0716848) (08) - HYDRAULICS

68

162538A1

VALVE

See Figure 08-64

2шт.

69

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

70

892-11006

LOCK WASHER,M6

4шт.

71

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 72

2шт.

72

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

73

MPJ2264

HOSE ASSY.,6.30 mm ID x 230.00 mm

2шт.

74

167321A1

TEE

2шт.

75

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 76

2шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 78

1шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

80

159009A1

HOSE ASSY.

1шт.

81

162193A1

HOSE ASSY.

1шт.

82

153484A1

HOSE ASSY.

1700 mm (67 in)

1шт.

83

167352A1

HOSE,2500.00 mm

See Figure 08-44

1шт.

84

159235A1

HYDRAULIC HOSE

See Figure 08-44, 850 mm (KRJ3572)

1шт.

85

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 86

2шт.

86

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

87

159497A1

TEE

Incl. 88

1шт.

88

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

89

KHJ17100

VALVE PRESSURE RELIE

; Replaces KHJ1655

1шт.

90

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

91

153081A1

WASHER

2шт.

101

150860A1

COLLAR

1шт.

102

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

103

150496A1

MOUNTING CLIP

250 mm (10 in)

3шт.

112

162538A1

VALVE

See Figure 08-64

1шт.

138

KLR0153

HARNESS

1шт.

139

159919A1

RELAY

1шт.

140

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

141

159599A1

PRESSURE SWITCH

No Longer Used, For Service Order KHR10790, Ref 141A And KHJ11460, Ref 149

1шт.

141a

KHR10790

PRESSURE SWITCH

No Longer Used, For Service Order KHR24000, Ref 141A And KHJ11460, Ref 149 (If not Installed)

1шт.

142

KHR3329

HARNESS

1шт.

143

165405A1

CLIP

3шт.

144

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

3шт.

145

150860A1

COLLAR

1шт.

146

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

147

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

149

KHJ11460

ADAPTER

Used With Ref 141A

1шт.
