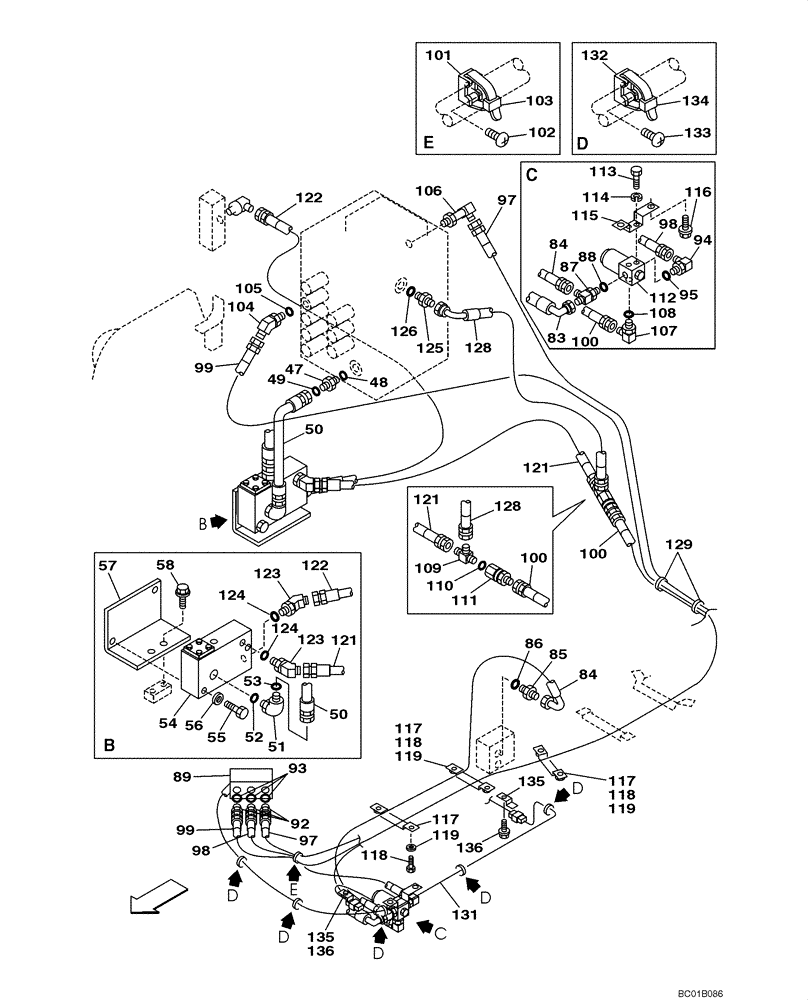

Запчасти Case CX160 (08-44) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, TRIGGER ACTIVATED (DAC0716101 - DAC0716848) (08) - HYDRAULICS

47

KHJ1500

ADAPTER

Replaces KHJ1765

1шт.

48

154487A1

O-RING

1шт.

49

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

50

KLJ0581

HOSE ASSY.,15.90 mm ID x 600.00 mm

1шт.

51

KHJ1804

ELBOW

Incl. 52

1шт.

52

154503A1

O-RING

1шт.

53

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

54

KHJ1473

VALVE

See Figure 08-69

1шт.

55

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

56

150409A1

WASHER

10,5 x 21 x 3,2 mm

2шт.

57

KNJ2604

BRACKET

1шт.

58

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

83

167352A1

HOSE,2500.00 mm

See Figure 08-45

1шт.

84

159235A1

HYDRAULIC HOSE

See Figure 08-45, 850 mm (KRJ3572)

1шт.

85

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 86

1шт.

86

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

87

159497A1

TEE

Incl. 88

1шт.

88

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

89

KHJ17100

VALVE PRESSURE RELIE

; Replaces KHJ1655

1шт.

92

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 93

3шт.

93

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

94

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 95

1шт.

95

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

97

158130A1

HOSE,6.3mm ID x 1350mm L

1шт.

97

159130A1

RUBBER BLOCK

1шт.

98

161272A1

HOSE

1шт.

99

157839A1

HOSE,6.3 mm ID x 3900.00 mm

1шт.

100

157853A1

HOSE,6.3 mm ID x 2050.00 mm

1шт.

101

150860A1

COLLAR

1шт.

102

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

103

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

104

150933A1

ELBOW

Incl. 105

1шт.

105

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

106

KHJ1178

ELBOW

1шт.

107

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 108

1шт.

108

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

109

159497A1

TEE

Incl. 110

1шт.

110

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

111

167853A1

ADAPTER

1шт.

112

162538A1

VALVE

See Figure 08-64

1шт.

113

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

114

892-11006

LOCK WASHER,M6

2шт.

115

KRJ5751

BRACKET

1шт.

116

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

117

KHJ1951

CLAMP

3шт.

118

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

6шт.

119

153081A1

WASHER

6шт.

121

152514A1

HOSE,63mm ID x 1000mm L

1шт.

122

153398A1

HOSE ASSY.

1шт.

123

150933A1

ELBOW

Incl. 124

2шт.

124

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

125

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 126

1шт.

126

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

128

162648A1

HOSE

1шт.

129

150071A1

MOUNTING CLIP

2шт.

131

KHR3351

HARNESS

Replaces KHR2718

1шт.

132

150860A1

COLLAR

5шт.

133

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

134

150496A1

MOUNTING CLIP

250 mm (10 in)

5шт.

135

165405A1

CLIP

2шт.

136

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.

148

KHP1758

DECAL

Operation, Right Hand Side of Cab Window; Not Illustrated

1шт.
