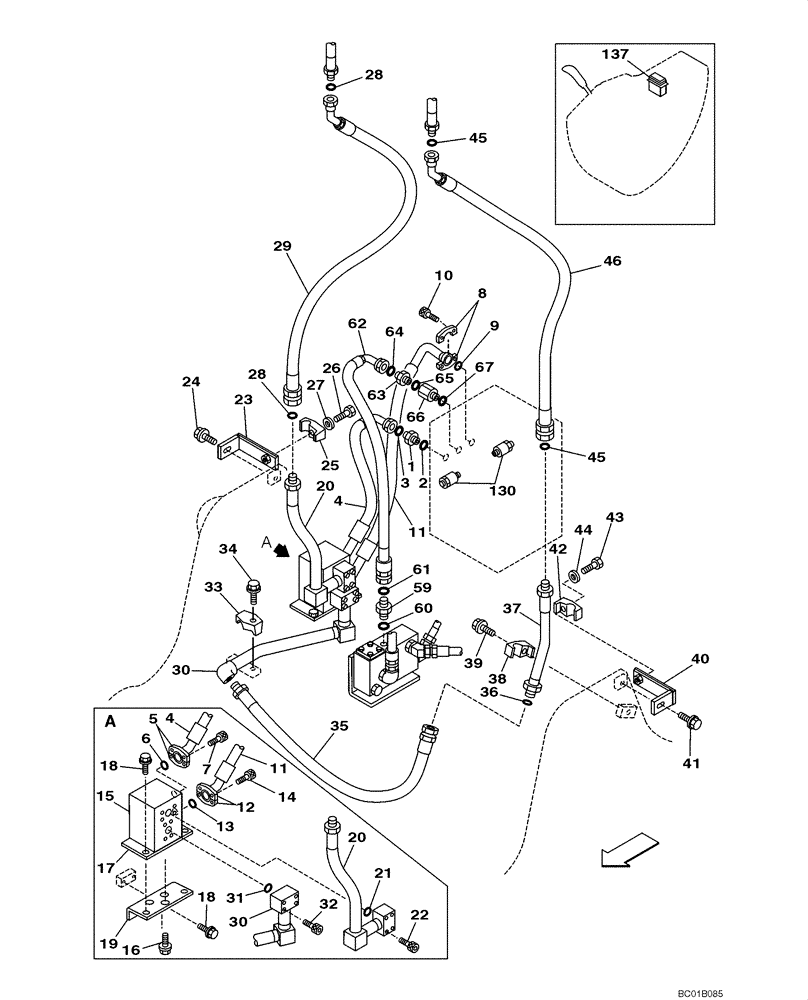

Запчасти Case CX160 (08-43) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, TRIGGER ACTIVATED (DAC0716101 - DAC0716848) (08) - HYDRAULICS

1

KHJ1348

ADAPTER

Incl. 2

1шт.

2

154503A1

O-RING

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

4

KLJ0623

HOSE ASSY.

1шт.

5

153458A1

FLANGE

2шт.

6

155210A1

O-RING

1шт.

7

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

8

153458A1

FLANGE

2шт.

9

155210A1

O-RING

1шт.

10

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

11

KLJ0609

HOSE ASSY.

1шт.

12

153458A1

FLANGE

2шт.

13

155210A1

O-RING

1шт.

14

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

15

KHJ1858

MANIFOLD VALVE

1шт.

16

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

17

KNJ2543

BRACKET

1шт.

18

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

19

KNJ2590

BRACKET

1шт.

20

KLJ0610

HYD TUBE

1шт.

21

154528A1

O-RING

1шт.

22

862-10055

HEX SOC SCREW,M10 x 55mm, Cl 12.9

4шт.

23

KLJ0615

BRACKET

1шт.

24

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

25

151486A1

CLAMP BRACKET

1шт.

26

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

27

150811A1

WASHER

M12

1шт.

28

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

29

KLJ0611

HOSE ASSY.

1шт.

30

KLJ0612

HYD TUBE

1шт.

31

154528A1

O-RING

1шт.

32

862-10055

HEX SOC SCREW,M10 x 55mm, Cl 12.9

4шт.

33

151486A1

CLAMP BRACKET

1шт.

34

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

35

KLJ0613

HOSE ASSY.

1шт.

36

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

37

KLJ0614

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

38

151486A1

CLAMP BRACKET

1шт.

39

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

1шт.

150811A1

WASHER

M12

1шт.

40

KLJ0615

BRACKET

1шт.

41

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

42

151486A1

CLAMP BRACKET

1шт.

43

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

44

150811A1

WASHER

M12

1шт.

45

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

46

KLJ0611

HOSE ASSY.

1шт.

59

KHJ1348

ADAPTER

Incl. 60

1шт.

60

154503A1

O-RING

1шт.

61

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

62

KNJ2601

HYDRAULIC HOSE,15.90 mm ID x 880.00 mm

1шт.

63

KHJ1348

ADAPTER

Incl. 64

1шт.

64

154503A1

O-RING

1шт.

65

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

66

KHJ1504

CHECK VALVE

Incl. 67

1шт.

67

154495A1

O-RING

1шт.

130

KNJ2732

VALVE, PRESSURE RELI

EF

2шт.

137

KHR3562

SWITCH

Console, Left Hand Side

1шт.
