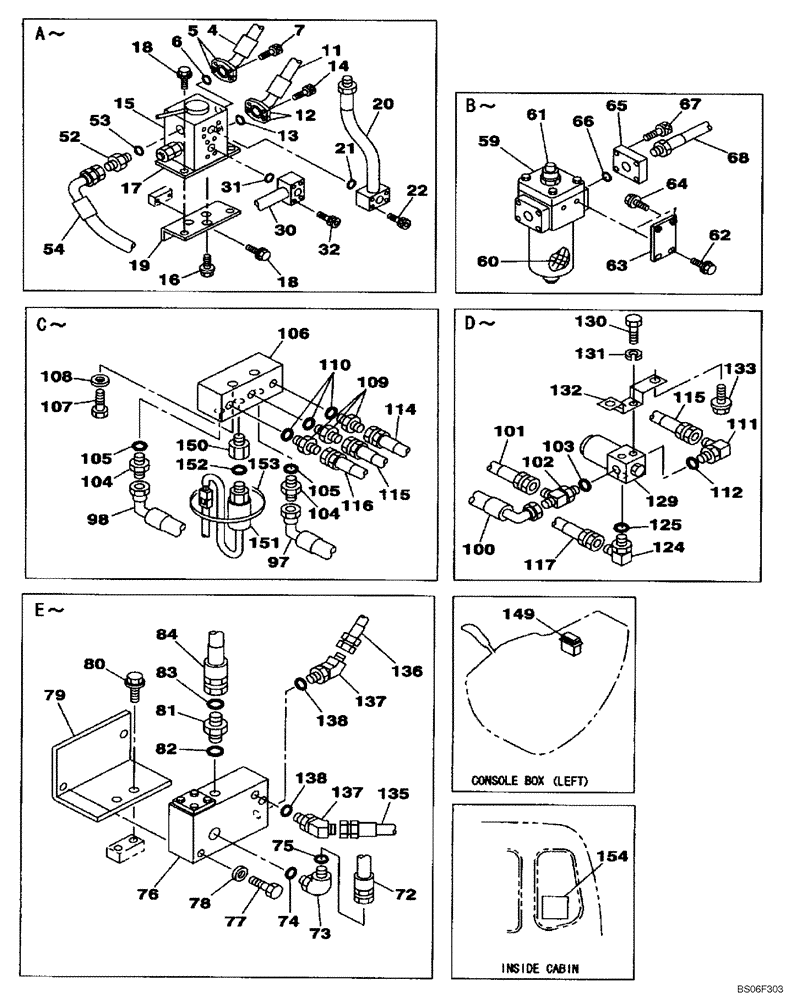

Запчасти Case CX160 (08-42C) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, PEDAL ACTIVATED (DAC0716849 - ) (08) - HYDRAULICS

4

KLJ10180

HOSE ASSY.,19.00 mm ID x 620.00 mm

See Figure 08-42A

1шт.

5

153458A1

FLANGE

Split

2шт.

6

155210A1

O-RING

1шт.

7

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

11

KLJ10190

HOSE ASSY.,19.00 mm ID x 750.00 mm

See Figure 08-42A

1шт.

12

153458A1

FLANGE

2шт.

13

155210A1

O-RING

1шт.

14

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

15

KHJ1610

VALVE

See Figure 08-42A & 08-67A

1шт.

16

166052A1

BOLT

3шт.

17

KNJ2543

BRACKET

1шт.

18

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

19

KNJ2590

BRACKET

1шт.

20

KLJ10160

HYD TUBE,20.8 mm ID x 27.2 mm OD

See Figure 08-42A

1шт.

21

154528A1

O-RING

1шт.

22

862-10065

HEX SOC SCREW,M10 x 65mm, Cl 12.9

4шт.

30

KLJ10170

HYD TUBE,20.8 mm ID x 27.2 mm OD

See Figure 08-42A

1шт.

31

154528A1

O-RING

1шт.

32

862-10055

HEX SOC SCREW,M10 x 55mm, Cl 12.9

4шт.

52

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 53

1шт.

53

154503A1

O-RING

1шт.

54

KLJ3791

See Figure 08-42A

1шт.

59

163278A1

FILTER

Incl. 60, 61, See Figure 08-79 For All Component Parts

1шт.

60

163279A1

HYDRAULIC OIL FILTER

1шт.

61

159706A1

INDICATOR

1шт.

62

166351A1

BOLT,Sems, M10 x 20mm

2шт.

63

KNJ2598

BRACKET

1шт.

64

166351A1

BOLT,Sems, M10 x 20mm

2шт.

65

163275A1

FLANGE

Flat

1шт.

66

154569A1

O-RING

1шт.

67

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

4шт.

68

KRJ6161

HYDRAULIC HOSE,19.00 mm ID x 420.00 mm

See Figure 08-42A

1шт.

72

KLJ0581

HOSE ASSY.,15.90 mm ID x 600.00 mm

1шт.

73

KHJ1804

ELBOW

Incl. 74

1шт.

74

154503A1

O-RING

1шт.

75

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

76

KHJ1473

VALVE

See Figure 08-42B, 8-69

1шт.

77

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

78

150409A1

WASHER

10,5 x 21 x 3,2 mm

2шт.

79

KNJ2604

BRACKET

1шт.

80

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

81

KHJ1348

ADAPTER

Incl. 82

1шт.

82

154503A1

O-RING

1шт.

83

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

84

KNJ2601

HYDRAULIC HOSE,15.90 mm ID x 880.00 mm

See Figure 08-42A

1шт.

97

161483A1

HOSE ASSY.

See Figure 08-42B

1шт.

98

165147A1

HOSE ASSY.

See Figure 08-42B

1шт.

100

159013A1

HOSE ASSY.

See Figure 08-42B

1шт.

101

159235A1

HYDRAULIC HOSE

See Figure 08-42B, 850 mm (KRJ3572)

1шт.

102

159497A1

TEE

Incl. 103

1шт.

103

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

104

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 105

2шт.

105

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

106

KHJ17100

VALVE PRESSURE RELIE

; Replaces KHJ1655

1шт.

107

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

108

153081A1

WASHER

2шт.

109

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 110

3шт.

110

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

111

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 112

1шт.

112

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

114

158130A1

HOSE,6.3mm ID x 1350mm L

See Figure 08-42B

1шт.

115

161272A1

HOSE

1шт.

116

157839A1

HOSE,6.3 mm ID x 3900.00 mm

See Figure 08-42B

1шт.

117

157853A1

HOSE,6.3 mm ID x 2050.00 mm

See Figure 08-42B

1шт.

124

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 125

1шт.

125

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

129

162538A1

VALVE

See Figure 08-42B, 08-64

1шт.

130

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

131

183-106VR

SPRING WASHER

2шт.

132

KRJ5751

BRACKET

1шт.

133

166346A1

BOLT,Sems, M10

2шт.

135

152514A1

HOSE,63mm ID x 1000mm L

See Figure 08-42B

1шт.

136

153398A1

HOSE ASSY.

See Figure 08-42B

1шт.

137

150933A1

ELBOW

Incl. 138

2шт.

138

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

149

KHR2948

SWITCH

1шт.

150

KHJ11460

ADAPTER

1шт.

151

KHR10790

PRESSURE SWITCH

1шт.

152

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

153

150067A1

MOUNTING CLIP

1шт.

154

KNP0532

DECAL

1шт.
