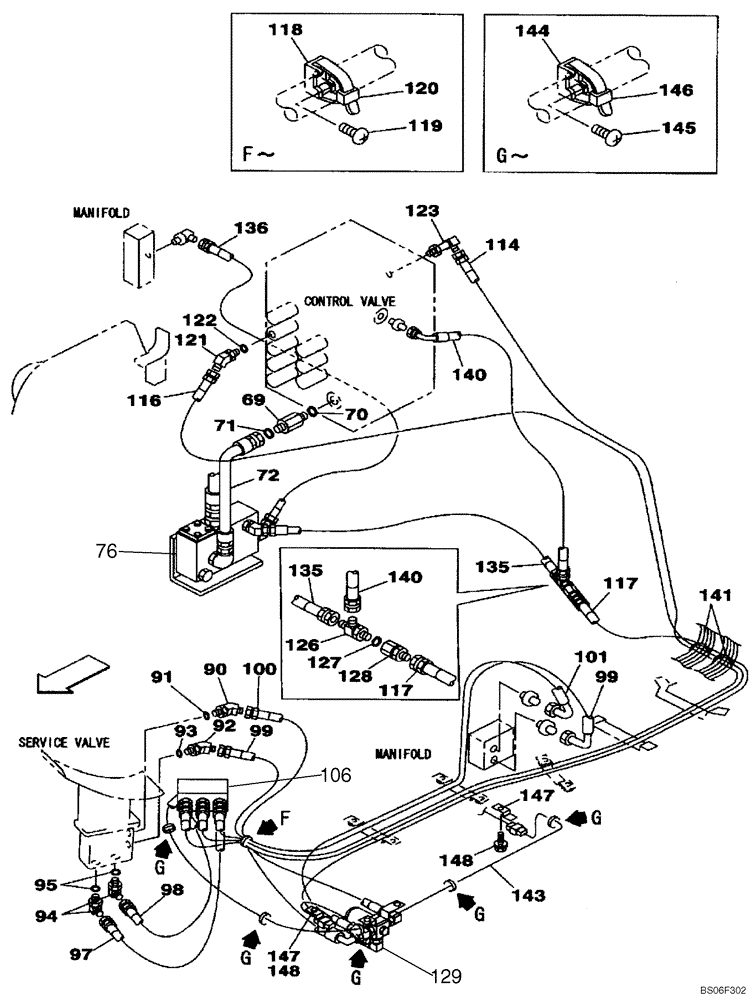

Запчасти Case CX160 (08-42B) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, PEDAL ACTIVATED (DAC0716849 - ) (08) - HYDRAULICS

69

KHJ1500

ADAPTER

Incl. 70

1шт.

70

154487A1

O-RING

1шт.

71

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

72

KLJ0581

HOSE ASSY.,15.90 mm ID x 600.00 mm

1шт.

76

KHJ1473

VALVE

See Figures 08-42C, 08-69

1шт.

90

150933A1

ELBOW

Incl. 91

1шт.

91

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

92

KHJ0994

ADAPTER

Incl. 93

1шт.

93

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

94

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 95

2шт.

95

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

97

161483A1

HOSE ASSY.

1шт.

98

165147A1

HOSE ASSY.

1шт.

99

164236A1

HOSE ASSY.

1000 mm (39-3/8 in)

1шт.

100

159013A1

HOSE ASSY.

1шт.

101

159235A1

HYDRAULIC HOSE

850 mm (KRJ3572)

1шт.

106

KHJ17100

VALVE PRESSURE RELIE

; Replaces KHJ1655

1шт.

114

158130A1

HOSE,6.3mm ID x 1350mm L

1шт.

116

157839A1

HOSE,6.3 mm ID x 3900.00 mm

1шт.

117

157853A1

HOSE,6.3 mm ID x 2050.00 mm

1шт.

118

150860A1

COLLAR

1шт.

119

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

1шт.

120

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

121

150933A1

ELBOW

Incl. 121

1шт.

122

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

123

KHJ1178

ELBOW

1шт.

126

159497A1

TEE

Incl. 127

1шт.

127

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

128

167853A1

ADAPTER

1шт.

129

162538A1

VALVE

See Figure 08-42C, 08-64

1шт.

135

152514A1

HOSE,63mm ID x 1000mm L

1шт.

136

153398A1

HOSE ASSY.

1шт.

140

162648A1

HOSE

1шт.

141

150071A1

MOUNTING CLIP

2шт.

143

KHR3351

HARNESS

1шт.

144

150860A1

COLLAR

5шт.

145

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

146

150496A1

MOUNTING CLIP

250 mm (10 in)

5шт.

147

165405A1

CLIP

2шт.

148

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.
