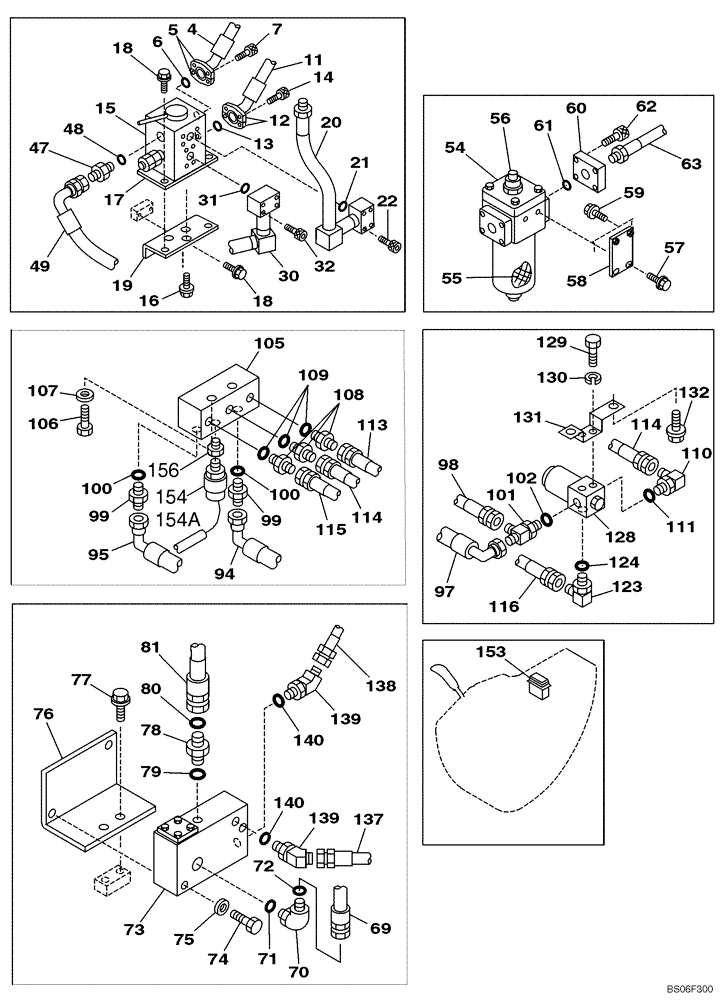

Запчасти Case CX160 (08-42) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, PEDAL ACTIVATED (DAC0716101 - DAC0716848) (08) - HYDRAULICS

4

KLJ0623

HOSE ASSY.

See Figure 08-40

1шт.

5

153458A1

FLANGE

Split

2шт.

6

155210A1

O-RING

1шт.

7

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

11

KLJ0609

HOSE ASSY.

See Figure 08-40

1шт.

12

153458A1

FLANGE

2шт.

13

155210A1

O-RING

1шт.

14

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

15

KHJ1610

VALVE

See Figure 08-40, 08-67A

1шт.

16

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

17

KNJ2543

BRACKET

1шт.

18

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

19

KNJ2590

BRACKET

1шт.

20

KLJ0610

HYD TUBE

See Figure 08-40

1шт.

21

154528A1

O-RING

1шт.

22

862-10065

HEX SOC SCREW,M10 x 65mm, Cl 12.9

4шт.

30

KLJ0612

HYD TUBE

See Figure 08-40

1шт.

31

154528A1

O-RING

1шт.

32

862-10065

HEX SOC SCREW,M10 x 65mm, Cl 12.9

4шт.

47

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 48

1шт.

48

154503A1

O-RING

1шт.

49

KLJ0616

HOSE ASSY.

See Figure 08-40

1шт.

54

163278A1

FILTER

Incl. 55, 56, See Figure 08-79 For All Component Parts

1шт.

55

163279A1

HYDRAULIC OIL FILTER

1шт.

56

159706A1

INDICATOR

1шт.

57

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

58

KNJ2598

BRACKET

1шт.

59

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

60

163275A1

FLANGE

Flat

1шт.

61

154569A1

O-RING

1шт.

62

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

4шт.

63

KRJ6161

HYDRAULIC HOSE,19.00 mm ID x 420.00 mm

See Figure 08-40

1шт.

70

KHJ1804

ELBOW

Incl. 71

1шт.

71

154503A1

O-RING

1шт.

72

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

73

KHJ1473

VALVE

See Figure 08-41, 8-69

1шт.

74

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

75

150409A1

WASHER

10,5 x 21 x 3,2 mm

2шт.

76

KNJ2604

BRACKET

1шт.

77

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

78

KHJ1348

ADAPTER

Incl. 79

1шт.

79

154503A1

O-RING

1шт.

80

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

81

KNJ2601

HYDRAULIC HOSE,15.90 mm ID x 880.00 mm

See Figure 08-40

1шт.

94

161483A1

HOSE ASSY.

See Figure 08-41

1шт.

95

165147A1

HOSE ASSY.

See Figure 08-41

1шт.

97

159013A1

HOSE ASSY.

See Figure 08-41

1шт.

98

159235A1

HYDRAULIC HOSE

See Figure 08-41, 850 mm (KRJ3572)

1шт.

99

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 100

2шт.

100

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

101

159497A1

TEE

Incl. 102

1шт.

102

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

105

KHJ17100

VALVE PRESSURE RELIE

; Replaces KHJ1655

1шт.

106

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

107

153081A1

WASHER

2шт.

108

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 109

3шт.

109

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

110

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 111

1шт.

111

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

113

158130A1

HOSE,6.3mm ID x 1350mm L

See Figure 08-41

1шт.

114

161272A1

HOSE

1шт.

115

157839A1

HOSE,6.3 mm ID x 3900.00 mm

See Figure 08-41

1шт.

116

157853A1

HOSE,6.3 mm ID x 2050.00 mm

See Figure 08-41

1шт.

123

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 124

1шт.

124

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

128

162538A1

VALVE

See Figure 08-41, 08-64

1шт.

129

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

130

892-11006

LOCK WASHER,M6

2шт.

131

KRJ5751

BRACKET

1шт.

132

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

137

152514A1

HOSE,63mm ID x 1000mm L

See Figure 08-41

1шт.

138

153398A1

HOSE ASSY.

See Figure 08-41

1шт.

139

150933A1

ELBOW

Incl. 140

2шт.

140

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

153

KHR2948

SWITCH

1шт.

154

159599A1

PRESSURE SWITCH

No Longer Used, Order KHR10790, REF 154A and Ref 156 Adapter (If not Installed)

1шт.

154a

KHR10790

PRESSURE SWITCH

No Longer Used, Order KHR24000 Ref 154A and Ref 156 Adapter (If not Installed)

1шт.

154a

KHR24000

PRESSURE SWITCH

KHJ11460, Ref 149 (If not Installed)

1шт.

155

KNP0532

DECAL

Not Illustrated

1шт.

156

KHJ11460

ADAPTER

1шт.
