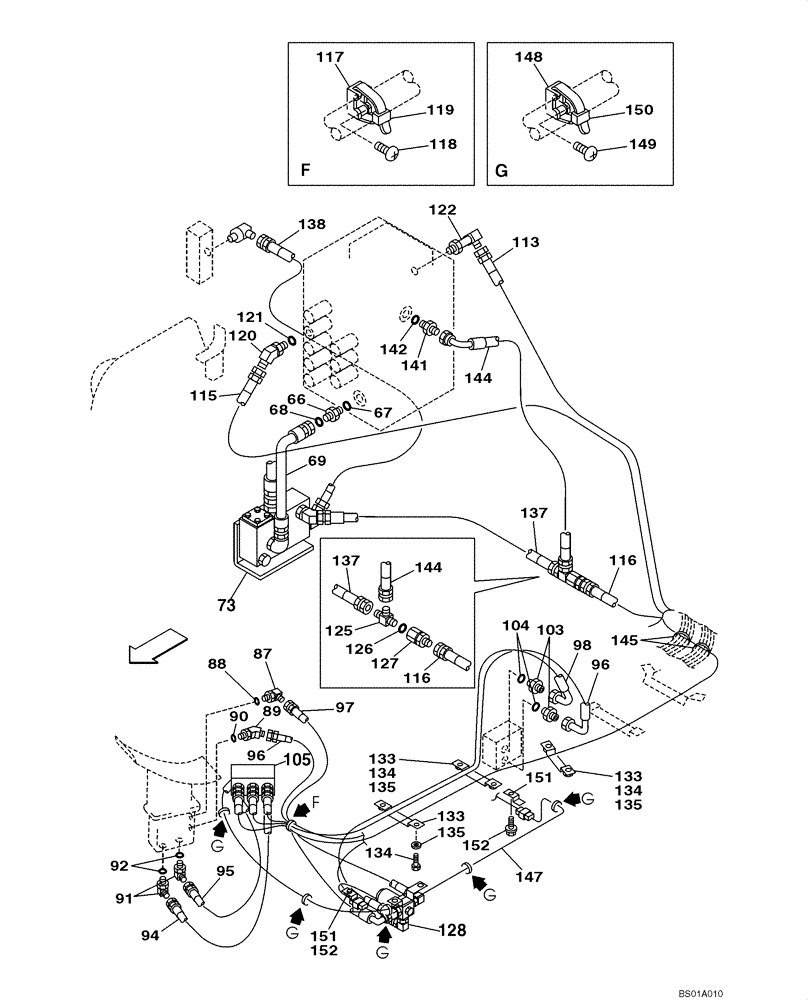

Запчасти Case CX160 (08-41) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, PEDAL ACTIVATED (DAC0716101 - DAC0716848) (08) - HYDRAULICS

66

KHJ1765

ADAPTER

Incl. 67

1шт.

67

154487A1

O-RING

1шт.

68

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

69

KLJ0581

HOSE ASSY.,15.90 mm ID x 600.00 mm

1шт.

73

KHJ1473

VALVE

See Figures 08-42, 08-69

1шт.

87

150933A1

ELBOW

Incl. 88

1шт.

88

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

89

KHJ0994

ADAPTER

Incl. 90

1шт.

90

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

91

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 92

2шт.

92

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

94

161483A1

HOSE ASSY.

1шт.

95

165147A1

HOSE ASSY.

1шт.

96

164236A1

HOSE ASSY.

1000 mm (39-3/8 in)

1шт.

97

159013A1

HOSE ASSY.

1шт.

98

159235A1

HYDRAULIC HOSE

850 mm (KRJ3572)

1шт.

103

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 104

1шт.

104

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

105

KHJ17100

VALVE PRESSURE RELIE

; Replaces KHJ1655

1шт.

113

158130A1

HOSE,6.3mm ID x 1350mm L

1шт.

115

157839A1

HOSE,6.3 mm ID x 3900.00 mm

1шт.

116

157853A1

HOSE,6.3 mm ID x 2050.00 mm

1шт.

117

150860A1

COLLAR

1шт.

118

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

119

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

120

150933A1

ELBOW

Incl. 121

1шт.

121

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

122

KHJ1178

ELBOW

1шт.

125

159497A1

TEE

Incl. 126

1шт.

126

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

127

167853A1

ADAPTER

1шт.

128

162538A1

VALVE

See Figure 08-42, 08-64

1шт.

133

KHJ1951

CLAMP

3шт.

134

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

6шт.

135

153081A1

WASHER

6шт.

137

152514A1

HOSE,63mm ID x 1000mm L

1шт.

138

153398A1

HOSE ASSY.

1шт.

141

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 142

1шт.

142

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

144

162648A1

HOSE

1шт.

145

150071A1

MOUNTING CLIP

2шт.

147

KHR3351

HARNESS

Replaces KHR2718

1шт.

148

150860A1

COLLAR

5шт.

149

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

150

150496A1

MOUNTING CLIP

250 mm (10 in)

5шт.

151

165405A1

CLIP

2шт.

152

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.
