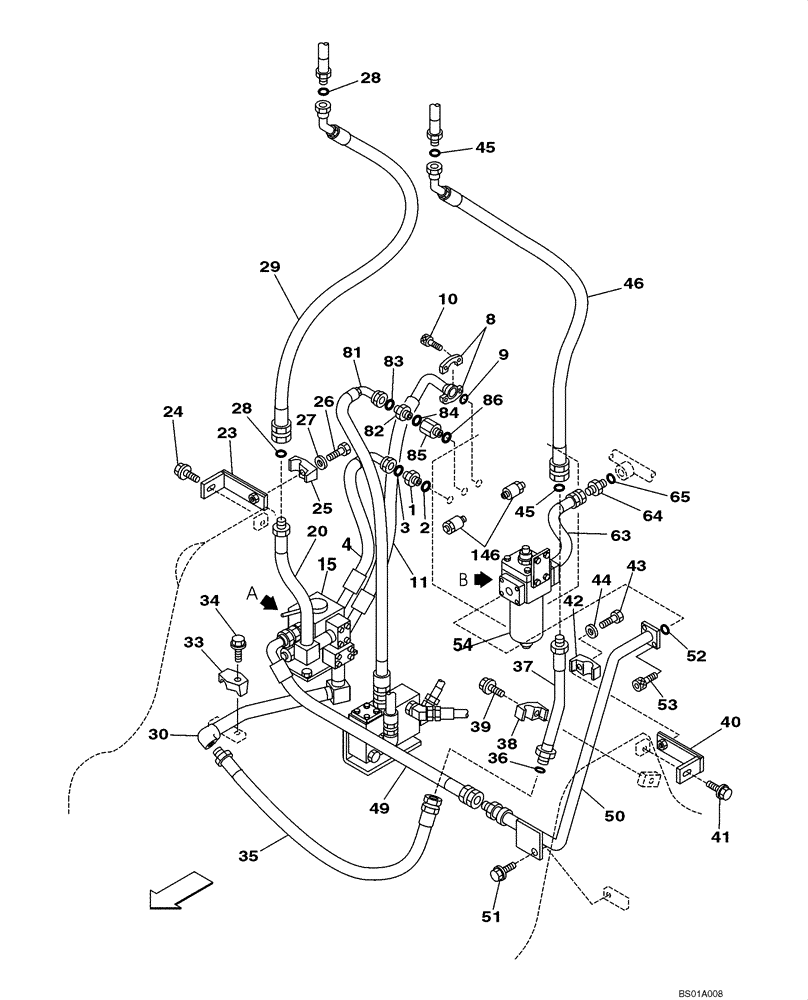

Запчасти Case CX160 (08-40) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, PEDAL ACTIVATED (DAC0716101 - DAC0716848) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
KHJ1348
ADAPTER
Incl. 2
1шт.
3
KHJ1360
O-RING,0.07" Thk x 0.739" ID
1шт.
4
KLJ0623
HOSE ASSY.
1шт.
8
153458A1
FLANGE
2шт.
9
155210A1
O-RING
1шт.
10
862-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
4шт.
11
KLJ0609
HOSE ASSY.
1шт.
15
KHJ1610
VALVE
See Figure 08-42 & 08-67A
1шт.
20
KLJ0610
HYD TUBE
1шт.
23
KLJ0615
BRACKET
1шт.
24
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
1шт.
25
151486A1
CLAMP BRACKET
1шт.
26
827-12065
BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9
1шт.
27
150811A1
WASHER
M12
1шт.
28
KHJ1360
O-RING,0.07" Thk x 0.739" ID
2шт.
29
KLJ0611
HOSE ASSY.
1шт.
30
KLJ0612
HYD TUBE
1шт.
33
151486A1
CLAMP BRACKET
1шт.
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
1шт.
35
KLJ0613
HOSE ASSY.
1шт.
36
KHJ1360
O-RING,0.07" Thk x 0.739" ID
1шт.
37
KLJ0614
HYD TUBE,20.8 mm ID x 27.2 mm OD
1шт.
38
151486A1
CLAMP BRACKET
1шт.
150811A1
WASHER
M12
1шт.
40
KLJ0615
BRACKET
1шт.
41
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
1шт.
42
151486A1
CLAMP BRACKET
1шт.
43
827-12065
BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9
1шт.
44
150811A1
WASHER
M12
1шт.
45
KHJ1360
O-RING,0.07" Thk x 0.739" ID
2шт.
46
KLJ0611
HOSE ASSY.
1шт.
49
KLJ0616
HOSE ASSY.
1шт.
50
KLJ0617
HYD TUBE,20.8 mm ID x 27.2 mm OD
1шт.
51
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
1шт.
52
154569A1
O-RING
1шт.
53
862-8035
HEX SOC SCREW,M8 x 35mm, Cl 12.9
4шт.
54
163278A1
FILTER
See Figure 08-79
1шт.
63
KRJ6161
HYDRAULIC HOSE,19.00 mm ID x 420.00 mm
1шт.
64
151650A1
HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT
Incl. 65
1шт.
81
KNJ2601
HYDRAULIC HOSE,15.90 mm ID x 880.00 mm
1шт.
82
KHJ1348
ADAPTER
Incl. 83
1шт.
84
KHJ1360
O-RING,0.07" Thk x 0.739" ID
1шт.
85
KHJ1504
CHECK VALVE
Incl. 86
1шт.
86
154495A1
O-RING
1шт.
146
KNJ2732
VALVE, PRESSURE RELI
EF
2шт.
