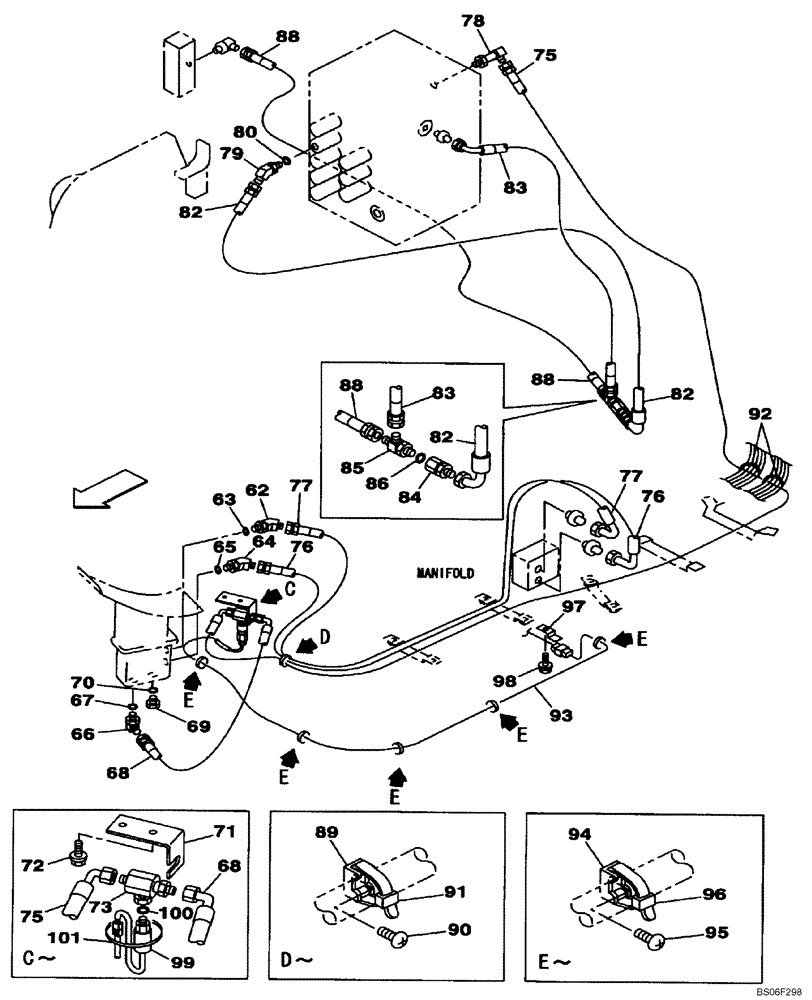

Запчасти Case CX160 (08-39B) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, PEDAL ACTIVATED (DAC0716849 - ) (08) - HYDRAULICS

62

150933A1

ELBOW

Incl. 63

1шт.

63

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

64

KHJ0994

ADAPTER

Incl. 65

1шт.

65

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

66

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 67

1шт.

67

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

68

161483A1

HOSE ASSY.

1шт.

69

159002A1

PLUG

Incl. 70

1шт.

70

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

71

KHJ2127

BRACKET

1шт.

72

166345A1

BOLT

2шт.

73

KHJ11470

ADAPTER

1шт.

75

161077A1

HOSE ASSY.

3400 mm (133-7/8 in)

1шт.

76

164236A1

HOSE ASSY.

1000 mm (39-3/8 in)

1шт.

77

159019A1

HOSE ASSY.

900 mm (35-1/2 in)

1шт.

78

KHJ1178

ELBOW

1шт.

79

150933A1

ELBOW

Incl. 80

1шт.

80

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

82

KHJ1221

HYDRAULIC HOSE

1шт.

83

162648A1

HOSE

1шт.

84

167853A1

ADAPTER

1шт.

85

159497A1

TEE

Incl. 86

1шт.

86

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

88

153398A1

HOSE ASSY.

1шт.

89

150860A1

COLLAR

1шт.

90

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

91

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

92

150071A1

MOUNTING CLIP

2шт.

93

KHR3350

HARNESS

1шт.

94

150860A1

COLLAR

5шт.

95

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

96

150496A1

MOUNTING CLIP

250 mm (10 in)

5шт.

97

165405A1

CLIP

1шт.

98

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

99

KHR10790

PRESSURE SWITCH

1шт.

100

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

101

150067A1

MOUNTING CLIP

1шт.
