Запчасти Case CX160 (08-37) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, PEDAL ACTIVATED (DAC0716101 - DAC0716848) (08) - HYDRAULICS

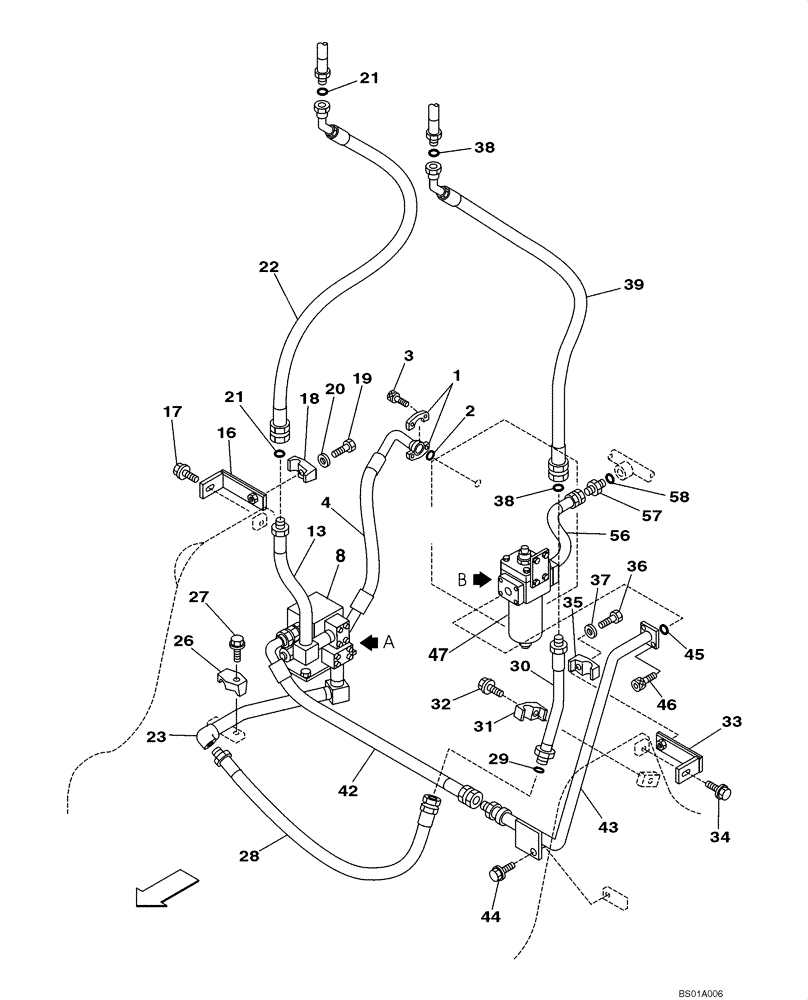

Схема запчастей Case CX160 - (08-37) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, PEDAL ACTIVATED (DAC0716101 - DAC0716848) (08) - HYDRAULICS
44
57
26
46
27
34
43
31
30
29
16
35
1
23
56
21
20
38
33
8
21
19
4
45
32
13
3
39
2
37
18
58
36
22
47
42
38
28
17

Артикул

Название

Примечание

Количество

1

153458A1

FLANGE

Split

2шт.

2

155210A1

O-RING

1шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

4

KLJ0609

HOSE ASSY.

1шт.

8

KHJ1842

MANIFOLD

See Figure 08-92

1шт.

13

KLJ0610

HYD TUBE

1шт.

16

KLJ0615

BRACKET

1шт.

17

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

18

151486A1

CLAMP BRACKET

1шт.

19

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

20

150811A1

WASHER

M12

1шт.

21

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

22

KLJ0611

HOSE ASSY.

1шт.

23

KLJ0612

HYD TUBE

1шт.

26

151486A1

CLAMP BRACKET

1шт.

27

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

28

KLJ0613

HOSE ASSY.

1шт.

29

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

30

KLJ0614

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

31

151486A1

CLAMP BRACKET

1шт.

32

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

1шт.

150811A1

WASHER

M12

1шт.

33

KLJ0615

BRACKET

1шт.

34

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

35

151486A1

CLAMP BRACKET

1шт.

36

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

37

150811A1

WASHER

M12

1шт.

38

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

39

KLJ0611

HOSE ASSY.

1шт.

42

KLJ0616

HOSE ASSY.

1шт.

43

KLJ0617

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

44

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

45

154569A1

O-RING

1шт.

46

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

4шт.

47

163278A1

FILTER

See Figure 08-79

1шт.

56

KRJ6161

HYDRAULIC HOSE,19.00 mm ID x 420.00 mm

1шт.

57

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 58

1шт.

58

154487A1

O-RING

1шт.

Выбрано товаров: 39
