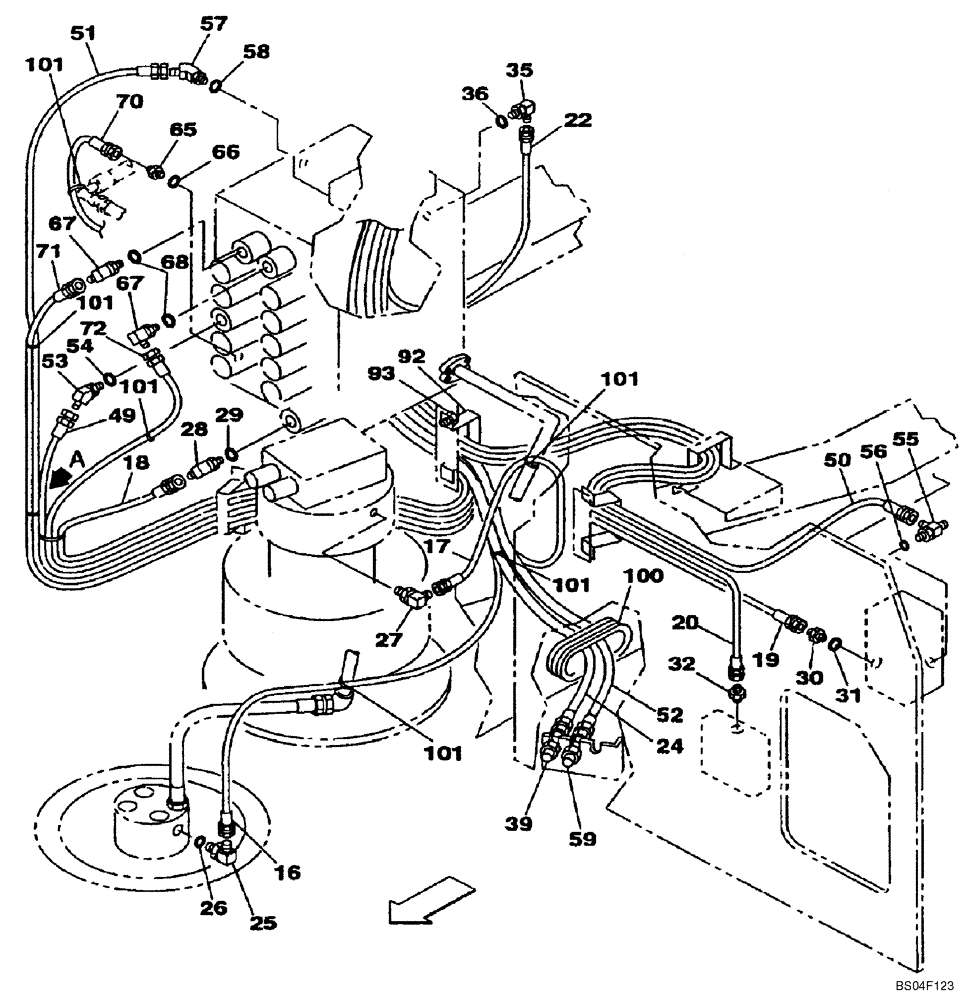

Запчасти Case CX160 (08-36) - HYDRAULICS - PILOT PRESSURE, RETURN LINES; P.I.N. DAC0716270 - (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
16
165392A1
HYDRAULIC HOSE
See Figure 08-33
1шт.
17
162555A1
HOSE
See Figure 08-33
1шт.
18
162555A1
HOSE
See Figure 08-33
1шт.
19
165392A1
HYDRAULIC HOSE
See Figure 08-33
1шт.
20
KAJ3243
HYDRAULIC HOSE
See Figure 08-33
1шт.
22
164791A1
HOSE ASSY.
See Figure 08-33
1шт.
24
161661A1
HYDRAULIC HOSE
See Figure 08-33
1шт.
25
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 26
1шт.
26
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
27
153596A1
ADAPTER
1шт.
28
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 29
1шт.
29
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
30
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 31
1шт.
31
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
32
KHJ1291
ORIFICE
1шт.
35
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 36
1шт.
36
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
39
162826A1
ADAPTER
1шт.
49
157852A1
HOSE,6.30 mm ID x 1650.00 mm
1650 mm (65 in), See Figure 08-33
1шт.
50
KHJ1937
HOSE
See Figure 08-33
1шт.
51
157853A1
HOSE,6.3 mm ID x 2050.00 mm
See Figure 08-33
1шт.
52
157963A1
HOSE
See Figure 08-33
1шт.
53
150933A1
ELBOW
Incl. 54
1шт.
54
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
55
159497A1
TEE
Incl. 56
1шт.
56
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
57
150933A1
ELBOW
Incl. 58
1шт.
58
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
59
162826A1
ADAPTER
1шт.
65
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 66
1шт.
66
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
67
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 68
2шт.
68
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
70
KHJ2725
HYDRAULIC HOSE,6.30 mm ID x 2000.00 mm
See Figure 08-33; Replaces 150966A1
1шт.
71
KHJ2727
HYDRAULIC HOSE,6.30 mm ID x 2250.00 mm
See Figure 08-34; Replaces KAJ3241
1шт.
72
KHJ2692
HYDRAULIC HOSE,6.30 mm ID x 2700.00 mm
See Figure 08-34; Replaces 157853A1
1шт.
92
161095A1
CLAMP
1шт.
93
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
2шт.
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
2шт.
100
152619A1
GROMMET
1шт.
101
150496A1
MOUNTING CLIP
250 mm (10 in)
1шт.
Выбрано товаров: 41
