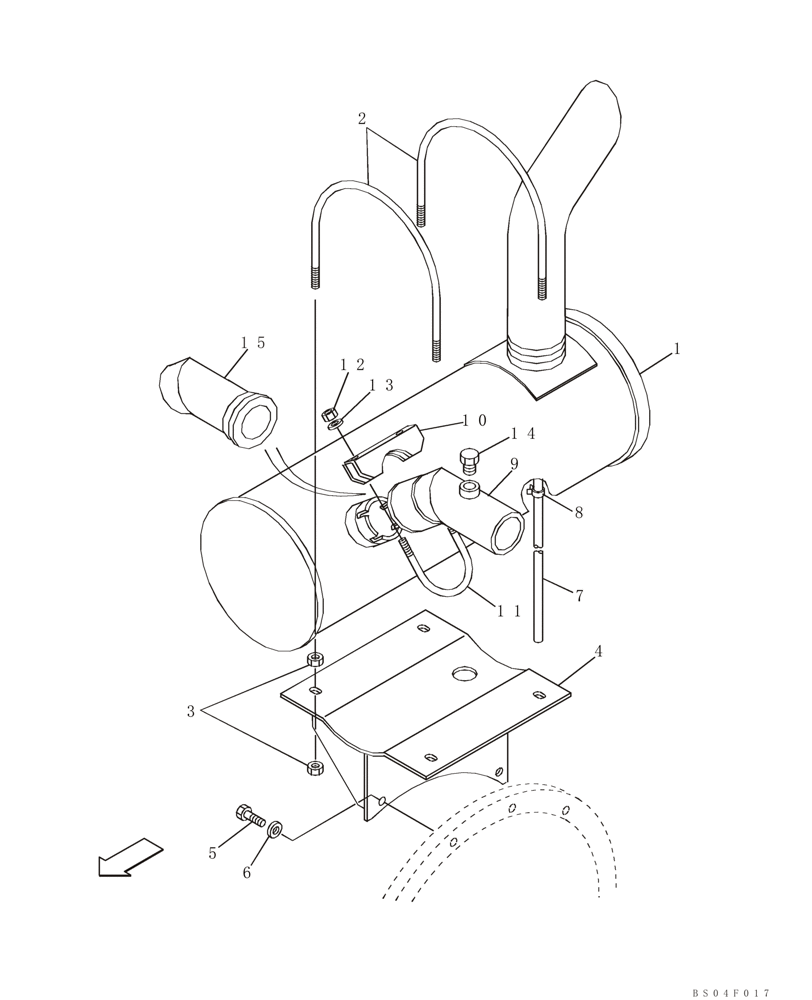

Запчасти Case CX160 (02-03) - EXHAUST SYSTEM - MUFFLER (02) - ENGINE

1

395491A1

MUFFLER

1шт.

2

151341A1

U-BOLT,M8 x 1.25 x 210mm W x 206.50mm L

BOLT "U"

2шт.

3

150469A1

FLANGE NUT

8шт.

4

KNH0881

BRACKET

Replaces 165635A1 Bracket

1шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

6

150409A1

WASHER

10,5 x 21 x 3,2 mm

3шт.

7

150657A1

TUBE

1шт.

8

165952A1

MOUNTING CLIP

Replaces 151367A1

1шт.

9

KNH0874

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST No Longer Available, For Service Order Ref 15, 164609A1 Exhaust Pipe

1шт.

10

164610A1

CLAMP

1шт.

11

165391A1

U-BOLT

BOLT "U"

1шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

13

153081A1

WASHER

2шт.

14

150990A1

PLUG

Used With Ref 9, KNH0874 Exhaust Pipe

1шт.

15

164609A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.
