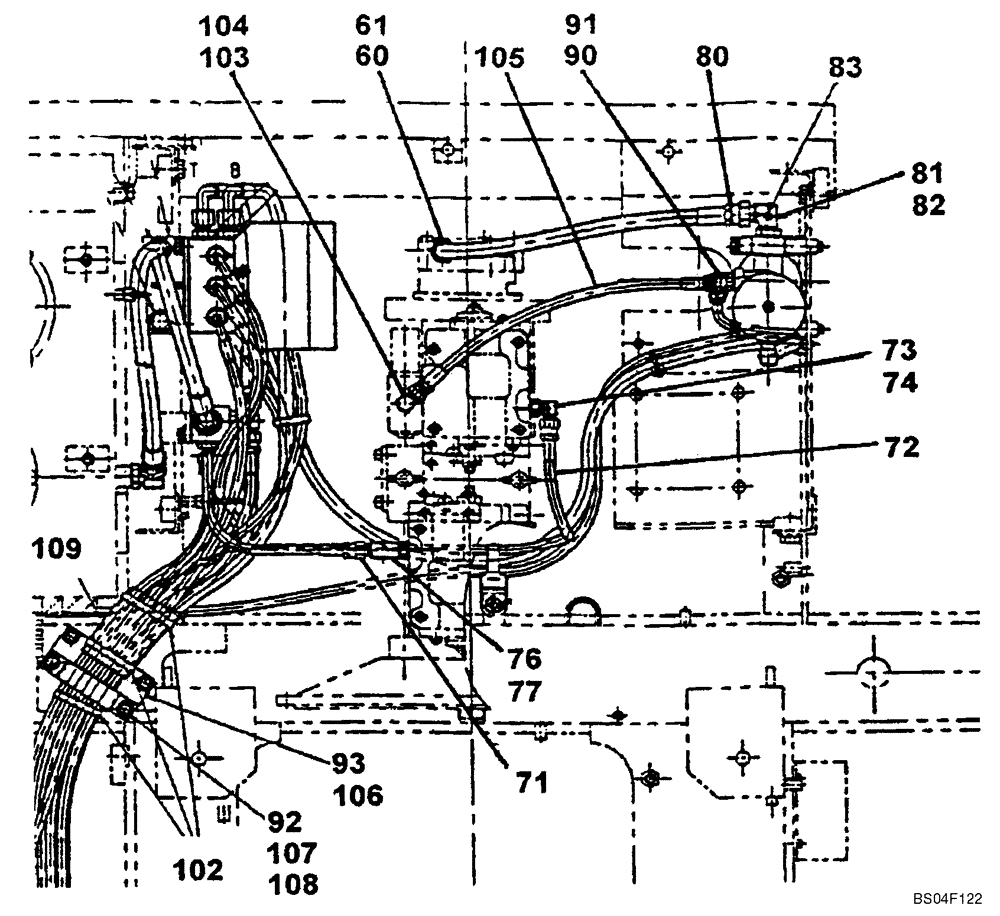

Запчасти Case CX160 (08-34) - HYDRAULICS - PILOT PRESSURE, RETURN LINES; P.I.N. DAC0716270 - (08) - HYDRAULICS

60

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 61

1шт.

61

154487A1

O-RING

1шт.

71

KHJ2727

HYDRAULIC HOSE,6.30 mm ID x 2250.00 mm

See Figure 08-36; Replaces KAJ3241

1шт.

72

KHJ2692

HYDRAULIC HOSE,6.30 mm ID x 2700.00 mm

See Figure 08-36; Replaces 157853A1

1шт.

73

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 74

1шт.

74

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

76

167666A1

FITTING

Incl. 77

1шт.

77

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

80

KNJ3036

HYDRAULIC HOSE,12.70 mm ID x 510.00 mm

1шт.

81

KHJ1069

ELBOW

Incl. 82

1шт.

82

154487A1

O-RING

1шт.

83

158352A1

PLUG

1шт.

90

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 91

1шт.

91

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

92

161095A1

CLAMP

1шт.

93

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

102

150071A1

MOUNTING CLIP

1шт.

103

KHJ1178

ELBOW

Incl. 104

1шт.

104

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

105

KHJ1366

HYDRAULIC HOSE,6.35 mm ID x 400.00 mm

1шт.

106

KLJ0649

SUPPORT

1шт.

107

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

2шт.

108

153081A1

WASHER

2шт.

109

KHJ2902

PLATE

Replaces 163160A1

1шт.
