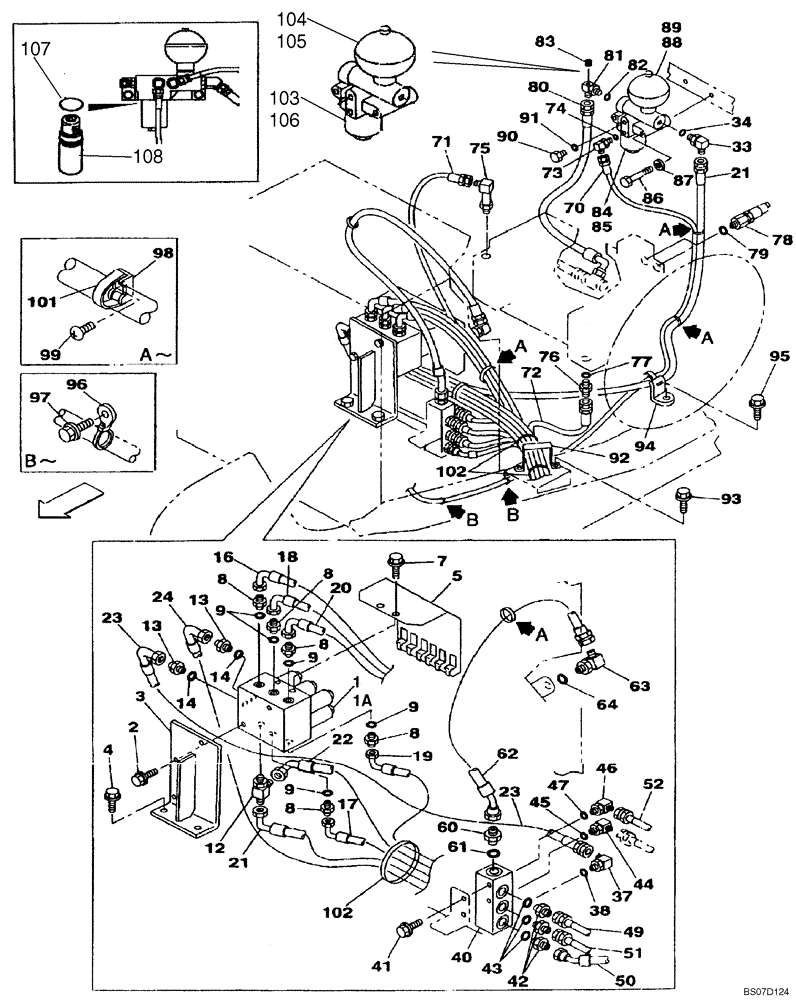

Запчасти Case CX160 (08-32) - HYDRAULICS - PILOT PRESSURE, RETURN LINES; P.I.N. DAC0716098 - DAC0716269 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
KHJ1972
SOLENOID VALVE
See Figure 08-64A; No Longer Available, Order KHJ15460
1шт.
1a
KHJ15460
SOLENOID VALVE
See Figure 08-64B
1шт.
2
627-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd
2шт.
3
KHJ1582
BRACKET
1шт.
4
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
5
KHJ1581
COVER
1шт.
7
156559A1
BOLT,High Strength, Hex, M6 x 12mm, W/ LW
2шт.
8
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 9
5шт.
9
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
12
163422A1
TEE
1шт.
13
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 14
2шт.
14
154475A1
O-RING
1шт.
16
165392A1
HYDRAULIC HOSE
See Figure 08-35
1шт.
17
162555A1
HOSE
See Figure 08-35
1шт.
18
162555A1
HOSE
See Figure 08-35
1шт.
19
165392A1
HYDRAULIC HOSE
See Figure 08-35
1шт.
20
KAJ3243
HYDRAULIC HOSE
See Figure 08-35
1шт.
21
163716A1
HOSE
1шт.
22
164791A1
HOSE ASSY.
See Figure 08-35
1шт.
23
162534A1
HOSE
1шт.
24
161661A1
HYDRAULIC HOSE
See Figure 08-35
1шт.
33
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
Incl. 34
1шт.
34
154475A1
O-RING
1шт.
37
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
Incl. 38
1шт.
38
154475A1
O-RING
1шт.
40
KNJ2574
MANIFOLD
1шт.
41
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
2шт.
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
2шт.
42
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 43
3шт.
43
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
44
156554A1
ELBOW
Incl. 45
1шт.
45
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
46
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
Incl. 47
1шт.
47
154475A1
O-RING
1шт.
49
157852A1
HOSE,6.30 mm ID x 1650.00 mm
1650 mm (65 in), See Figure 08-35
1шт.
50
KHJ1937
HOSE
See Figure 08-35
1шт.
51
157853A1
HOSE,6.3 mm ID x 2050.00 mm
See Figure 08-35
1шт.
52
157963A1
HOSE
See Figure 08-35
1шт.
60
151650A1
HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT
Incl. 61
1шт.
62
KNJ2750
HYDRAULIC HOSE,12.70 mm ID x 800.00 mm
1шт.
63
150919A1
ELBOW,90 Degree, 1/2" O-Ring x 1/2"
Incl. 64
1шт.
70
150966A1
HOSE ASSY.
See Figure 08-35
1шт.
71
KAJ3241
HYDRAULIC HOSE
See Figure 08-35
1шт.
72
157853A1
HOSE,6.3 mm ID x 2050.00 mm
See Figure 08-35
1шт.
73
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 74
1шт.
74
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
75
KHJ1178
ELBOW
1шт.
76
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 77
1шт.
77
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
78
KHJ1584
UNION
Incl. 79
2шт.
79
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
80
KMJ2043
HOSE ASSY.
1шт.
81
KHJ1072
ELBOW
Incl. 82
1шт.
83
158352A1
PLUG
1шт.
84
KHJ1474
FILTER ASSY
Incl. 85
1шт.
86
827-10100
BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9
2шт.
87
150409A1
WASHER
2шт.
88
150894A1
ACCUMULATOR
Incl. 89; No Longer Used, Order Accumulator Assy KHJ14870, Ref 103
1шт.
90
159002A1
PLUG
1шт.
91
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
92
161095A1
CLAMP
1шт.
93
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
2шт.
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
2шт.
94
KHR2582
CLAMP
1шт.
95
KHJ2298
BOLT,Spcl
1шт.
96
KHR2583
CLAMP
3шт.
97
159602A1
BOLT,Sems, Hex, M6 x 16mm
3шт.
98
150860A1
COLLAR
2шт.
99
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
2шт.
101
150496A1
MOUNTING CLIP
250 mm (10 in)
1шт.
102
150071A1
MOUNTING CLIP
1шт.
103
KHJ14870
ACCUMULATOR
Incl. 104 - 108
1шт.
104
KHJ2359
ACCUMULATOR
1шт.
106
KHJ14880
MANIFOLD
Incl. 107, 108
1шт.
107
154641A1
O-RING
1шт.
Выбрано товаров: 83
