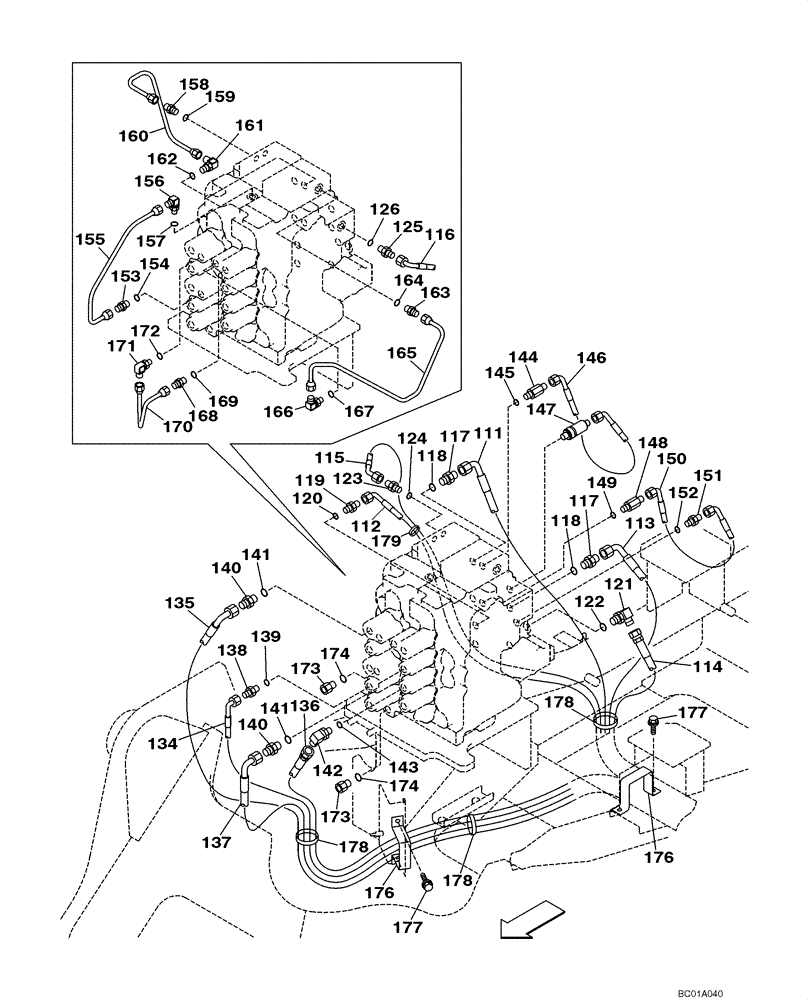

Запчасти Case CX160 (08-31) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITH LOAD HOLD & CONTROL SELECTOR VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
111
161661A1
HYDRAULIC HOSE
See Figure 08-28
1шт.
112
KHJ1687
HOSE
See Figure 08-28
1шт.
113
161175A1
HOSE ASSY.
See Figure 08-28
1шт.
114
159228A1
HOSE ASSY.
1750 mm (68-7/8 in), See Figure 08-28
1шт.
115
KAJ3099
HYDRAULIC HOSE
See Figure 08-28
1шт.
116
KHJ1687
HOSE
See Figure 08-28
1шт.
117
152747A1
ADAPTER
Incl. 118
2шт.
118
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
119
159848A1
ORIFICE
Special, Incl. 120
1шт.
120
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
121
153559A1
ELBOW
Incl. 122
1шт.
122
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
123
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 124
1шт.
124
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
125
162366A1
ADAPTER
Incl. 126
1шт.
126
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
134
161494A1
HOSE ASSY.
1шт.
135
KAJ3203
HYDRAULIC HOSE
See Figure 08-28
1шт.
136
164115A1
HYDRAULIC HOSE
See Figure 08-28
1шт.
137
164115A1
HYDRAULIC HOSE
See Figure 08-28
1шт.
138
159848A1
ORIFICE
Special, Incl. 139
1шт.
139
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
140
152747A1
ADAPTER
Incl. 141
2шт.
141
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
142
153559A1
ELBOW
Incl. 143
1шт.
143
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
144
162554A1
FITTING
Long, Incl. 145
1шт.
145
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
146
161176A1
HOSE ASSY.
450 mm (17-3/4 in)
1шт.
147
KHJ1399
VALVE, CUSHION
See Figure 08-68
1шт.
148
162554A1
FITTING
Incl. 149
1шт.
149
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
150
161176A1
HOSE ASSY.
450 mm (17-3/4 in)
1шт.
151
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 152
1шт.
152
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
153
KHJ1390
NIPPLE, LUBE
NIPPLE Incl. 154
1шт.
154
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
155
KNJ2752
TUBE ASSY.,6 mm ID x 8 mm OD
1шт.
156
KHJ1391
COUPLING
Incl. 157
1шт.
157
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
158
KHJ1390
NIPPLE, LUBE
NIPPLE Incl. 159
1шт.
159
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
160
KNJ2585
TUBE ASSY.,6 mm ID x 8 mm OD
1шт.
161
KHJ1391
COUPLING
Incl. 162
1шт.
162
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
163
KHJ1390
NIPPLE, LUBE
NIPPLE Incl. 164; P.I.N. DAC0716099 - DAC0716258
1шт.
164
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
165
KNJ2586
TUBE ASSY.
P.I.N. DAC0716099 - DAC0716258
1шт.
166
KHJ1391
COUPLING
Incl. 167; P.I.N. DAC0716099 - DAC0716258
1шт.
167
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
168
KHJ1390
NIPPLE, LUBE
NIPPLE Incl. 169
1шт.
169
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
170
KNJ2747
TUBE ASSY.,6 mm ID x 8 mm OD
1шт.
171
KHJ1391
COUPLING
Incl. 172
1шт.
172
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
173
159026A1
SOCKET
Incl. 174
2шт.
174
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
176
161095A1
CLAMP
2шт.
177
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
4шт.
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
4шт.
178
150071A1
MOUNTING CLIP
3шт.
Выбрано товаров: 61
